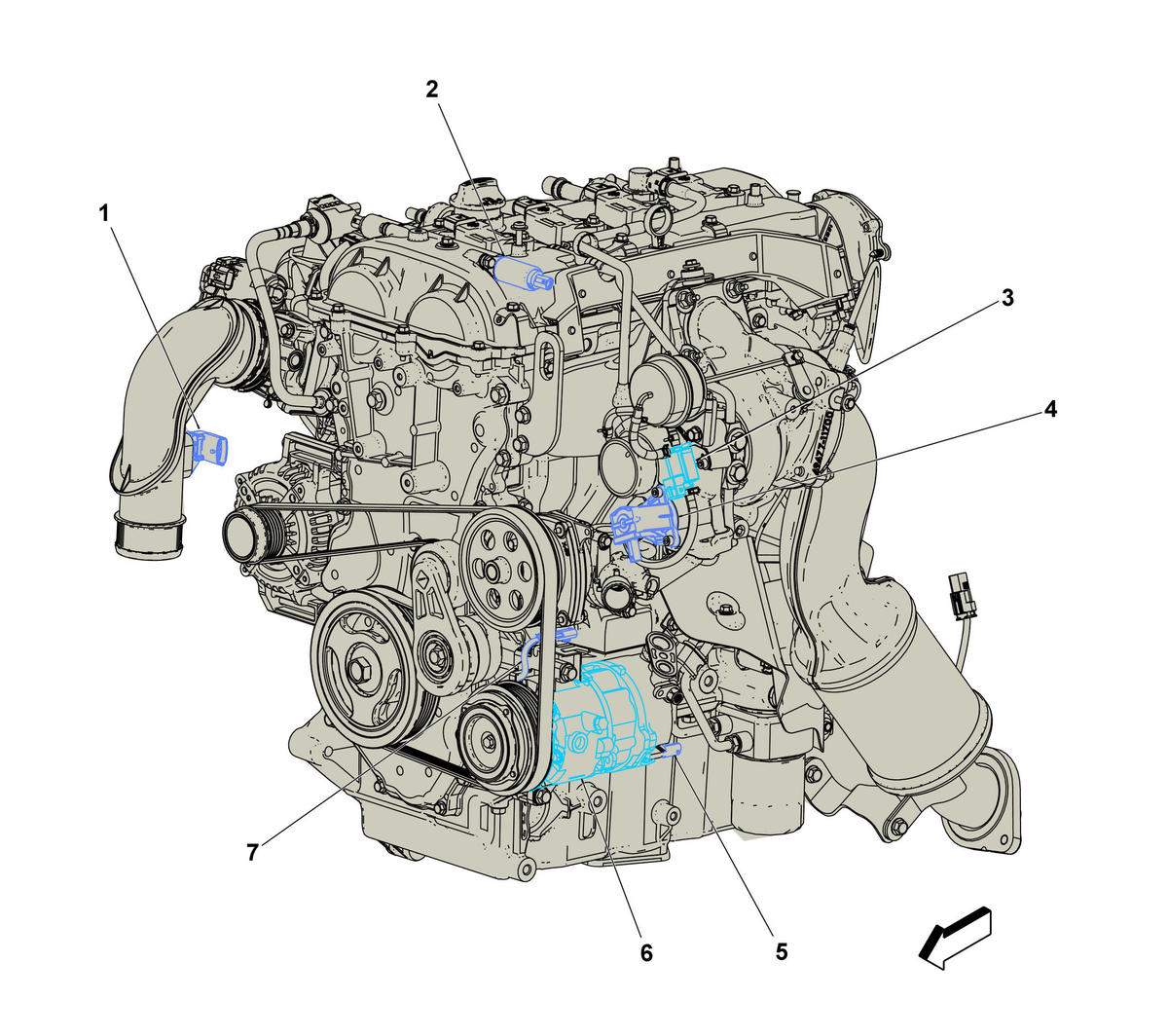

Engine Components - Left Front (LTG)
Engine Components - Left Front (LTG)
| Component Name | Callout |
|---|---|
| B111B Turbocharger Boost/Intake Air Temperature Sensor (LTG) B111B Turbocharger Boost/Intake Air Temperature Sensor | 1 |
| Q6E Camshaft Position Actuator Solenoid Valve - Exhaust (LTG) Q6E Camshaft Position Actuator Solenoid Valve - Exhaust | 2 |
| Q42 Turbocharger Wastegate Solenoid Valve (LTG) Q42 Turbocharger Wastegate Solenoid Valve | 3 |
| Q40 Turbocharger Bypass Solenoid Valve (LTG) Q40 Turbocharger Bypass Solenoid Valve | 4 |
| Q46 A/C Compressor Solenoid Valve Q46 A/C Compressor Solenoid Valve | 5 |
| G1 A/C Compressor | 6 |
| Q2 A/C Compressor Clutch Q2 A/C Compressor Clutch | 7 |
