Fuel Pump Power Control Module Replacement

Courtesy of GENERAL MOTORS COMPANY

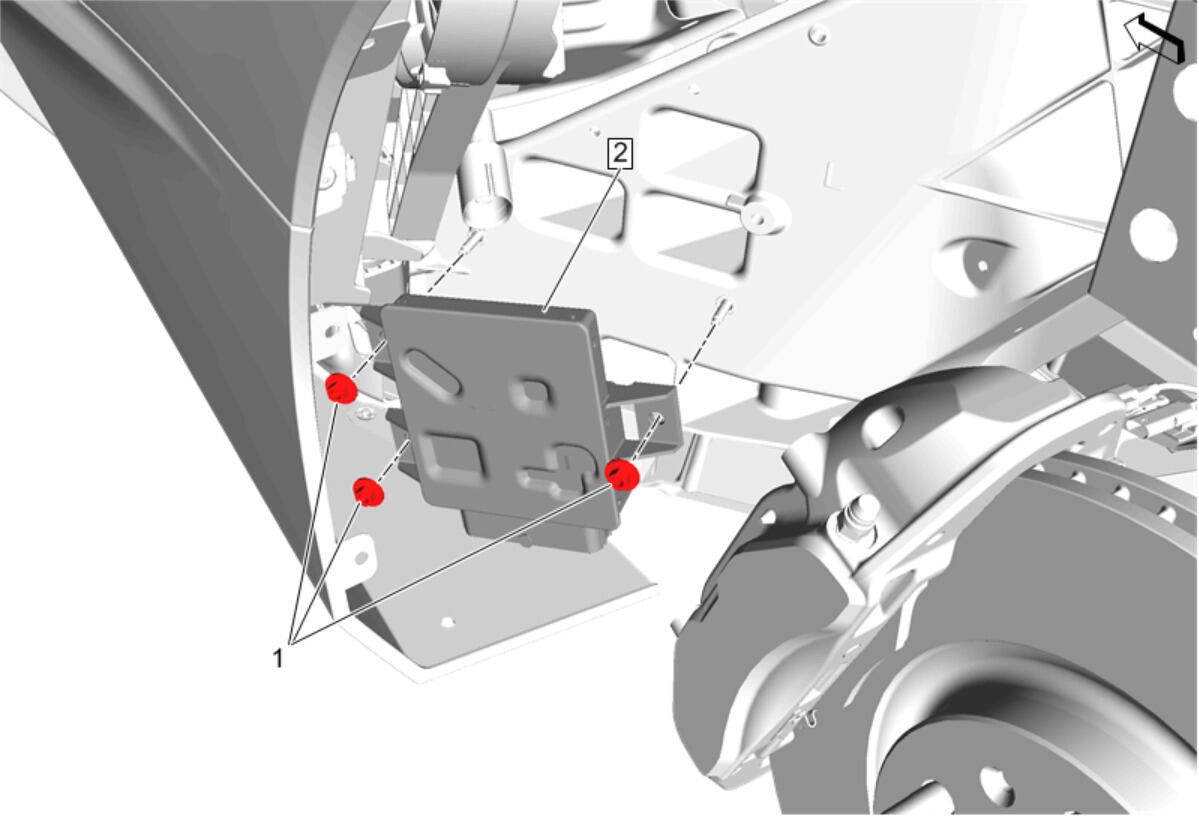

Callout	Component Name
Preliminary Procedure Rear Wheelhouse Liner Replacement - Left Side
1	Fuel Pump Power Control Module Nut [3x] CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Fuel Pump Power Control Module Procedure Disconnect the electrical connector. If replacing, perform the fuel pump power control module configuration. K111 Fuel Pump Power Control Module Configuration

Callout

Component Name

Fuel Pump Power Control Module Nut [3x]

CAUTION:

Tighten
9 N.m (80 lb in)

Fuel Pump Power Control Module

Procedure

Disconnect the electrical connector.
If replacing, perform the fuel pump power control module configuration. K111 Fuel Pump Power Control Module Configuration
