Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

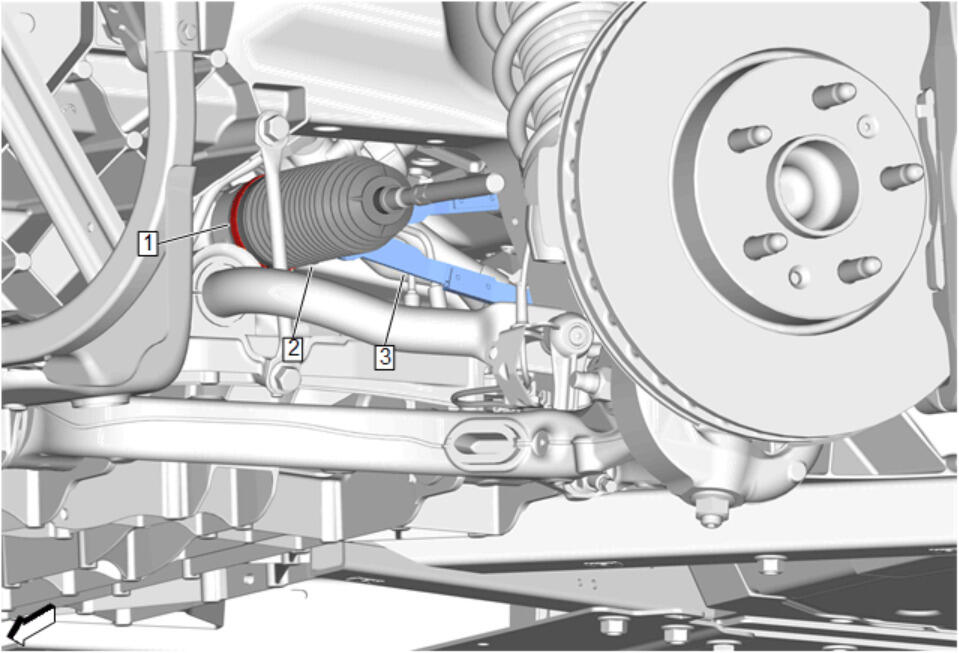

Position a NEW steering gear boot inner clamp (1) on the steering gear boot (2).
Steering Gear Boot (2) - Install
Steering Gear Boot Inner Clamp (1) - Tighten- use CH-22610 Keystone Clamp Pliers (3)
Courtesy of GENERAL MOTORS COMPANY

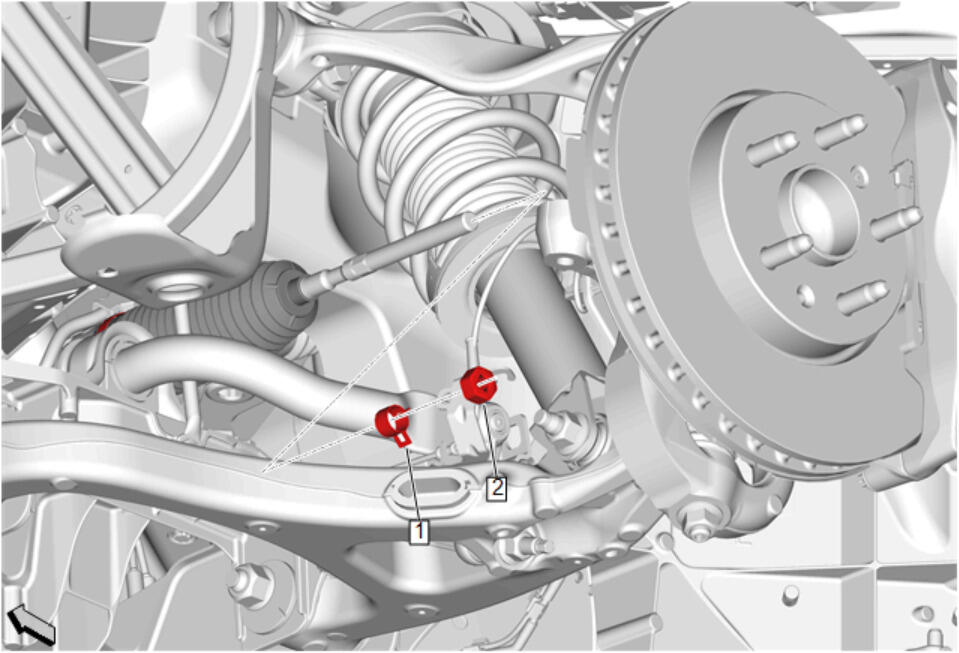

Steering Gear Boot Outer Clamp (1) - Install
Steering Linkage Inner Tie Rod Nut (2) - Install
Courtesy of GENERAL MOTORS COMPANY

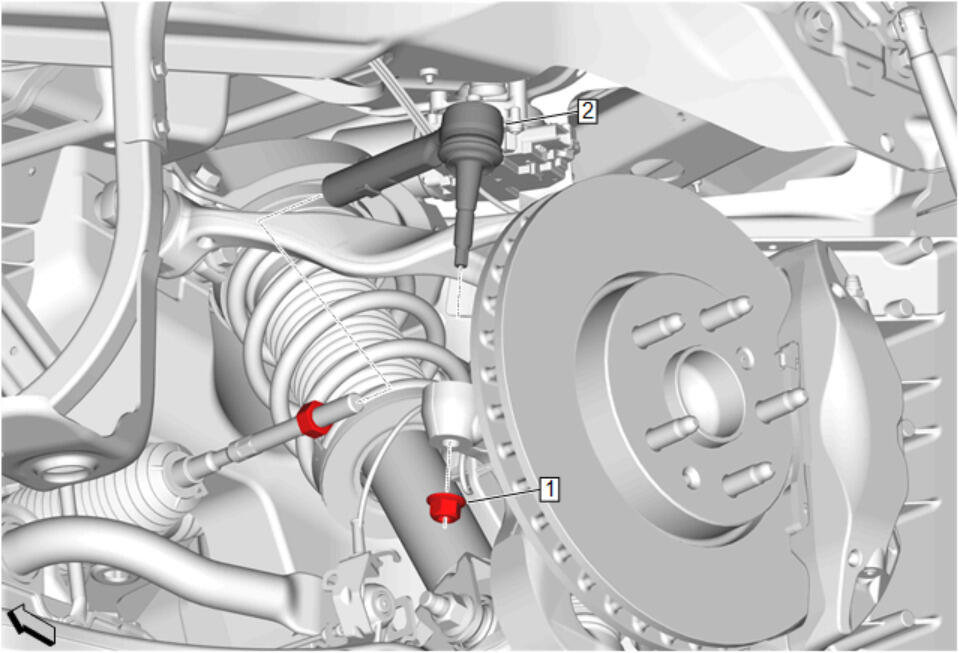

Steering Linkage Outer Tie Rod (2) - Install - Steering Linkage Outer Tie Rod Replacement
Measure and adjust the front toe. Wheel Alignment - Steering Wheel Angle and/or Front Toe Adjustment
