Removal Procedure

WARNING:

WARNING:

Fuel Tank-Left Side - Remove - Fuel Tank Replacement - Left Side
Courtesy of GENERAL MOTORS COMPANY

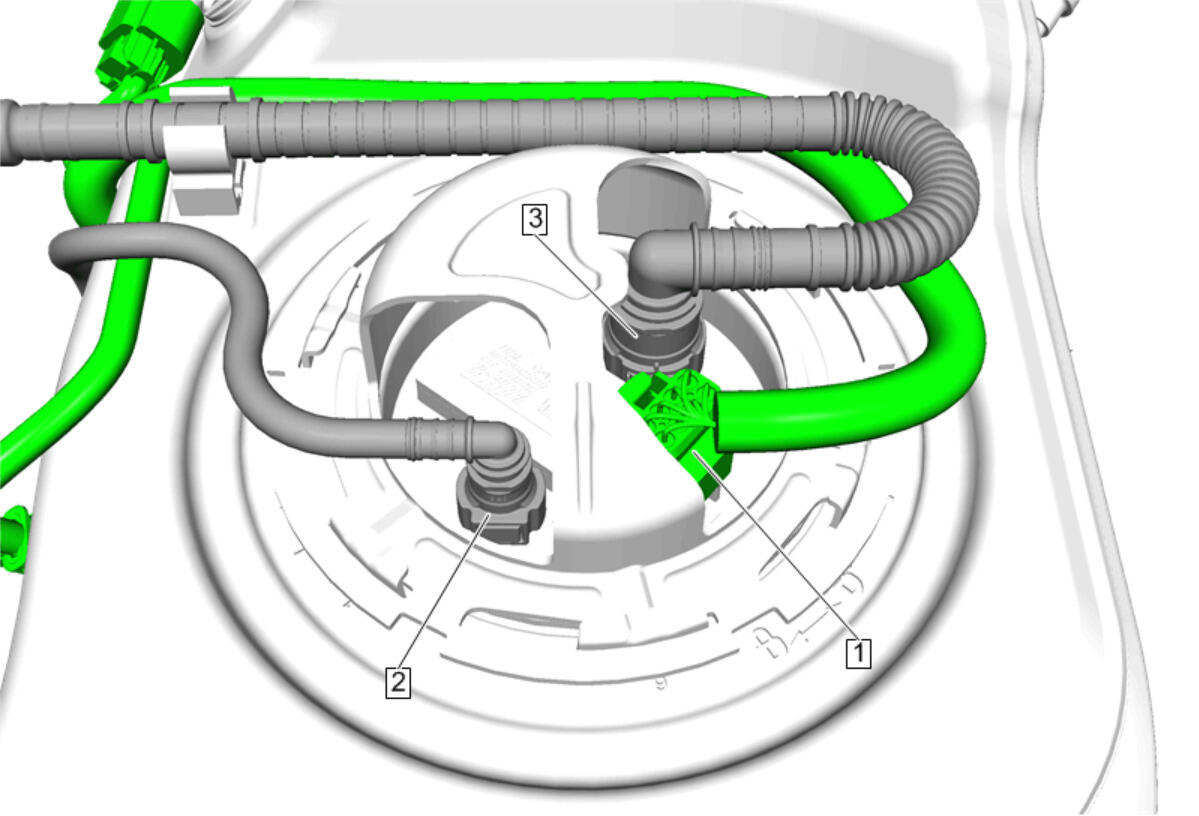

Fuel Sender Wiring Harness (1) - Disconnect
Fuel Feed Hose (2) - Disconnect - Plastic Collar Quick Connect Fitting Service
Fuel Feed and Evaporative Emission Pipe (3) - Disconnect - Plastic Collar Quick Connect Fitting Service
Courtesy of GENERAL MOTORS COMPANY

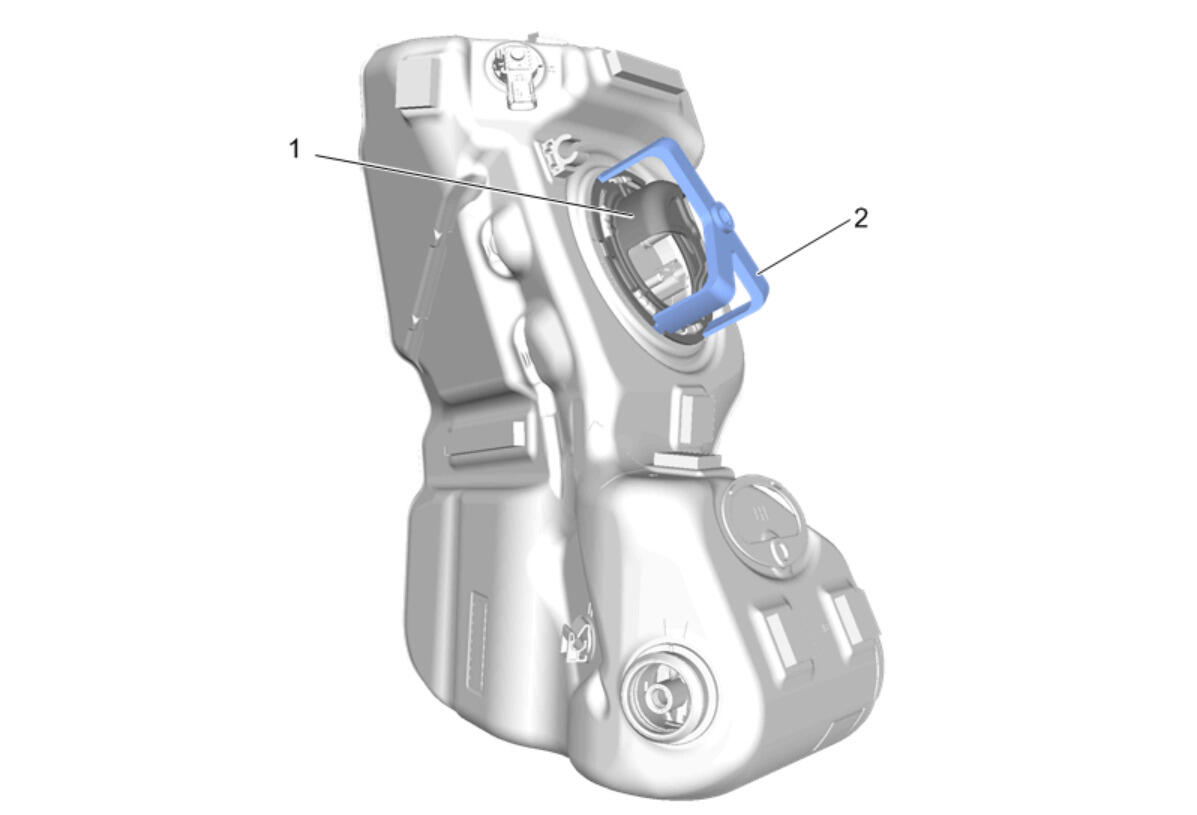

Fuel Pump Lock Ring (1) - Remove - CH-52075 Fuel Pump Lock Ring Wrench (2)
Courtesy of GENERAL MOTORS COMPANY

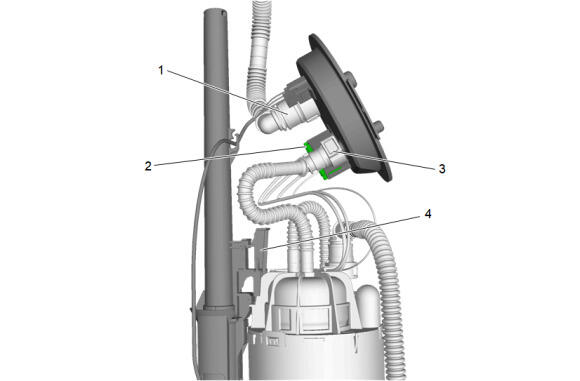

Vent Pipe (1) - Disconnect - Plastic Collar Quick Connect Fitting Service
Electrical Connector (2) - Disconnect
Fuel Pump (3) - Disconnect - Plastic Collar Quick Connect Fitting Service
Retaining Clip (4) - Unclip
Courtesy of GENERAL MOTORS COMPANY

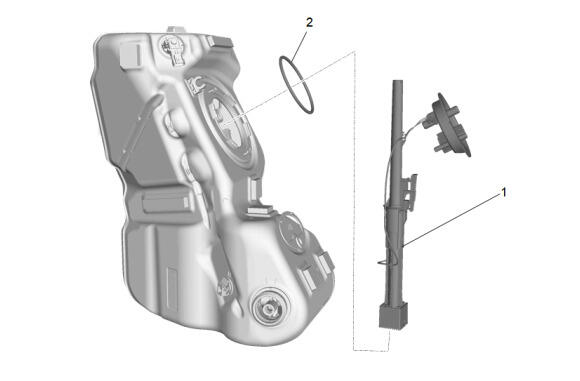

Fuel Level Sensor (1) - Remove
O-Ring (2) - Remove and DISCARD
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Rotate module counter clockwise to unlock from the base of the tank.

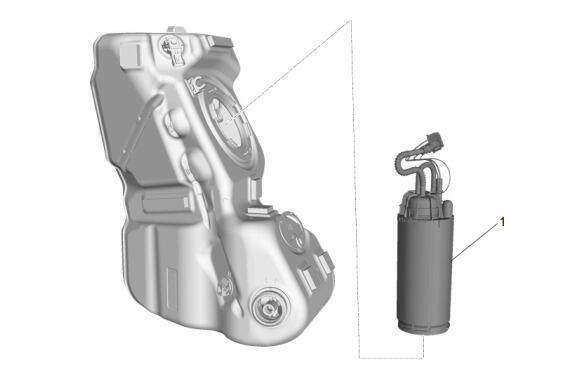

Fuel Tank Fuel Pump Module (1) - Remove
