Restraints Control Module Replacement

Courtesy of GENERAL MOTORS COMPANY

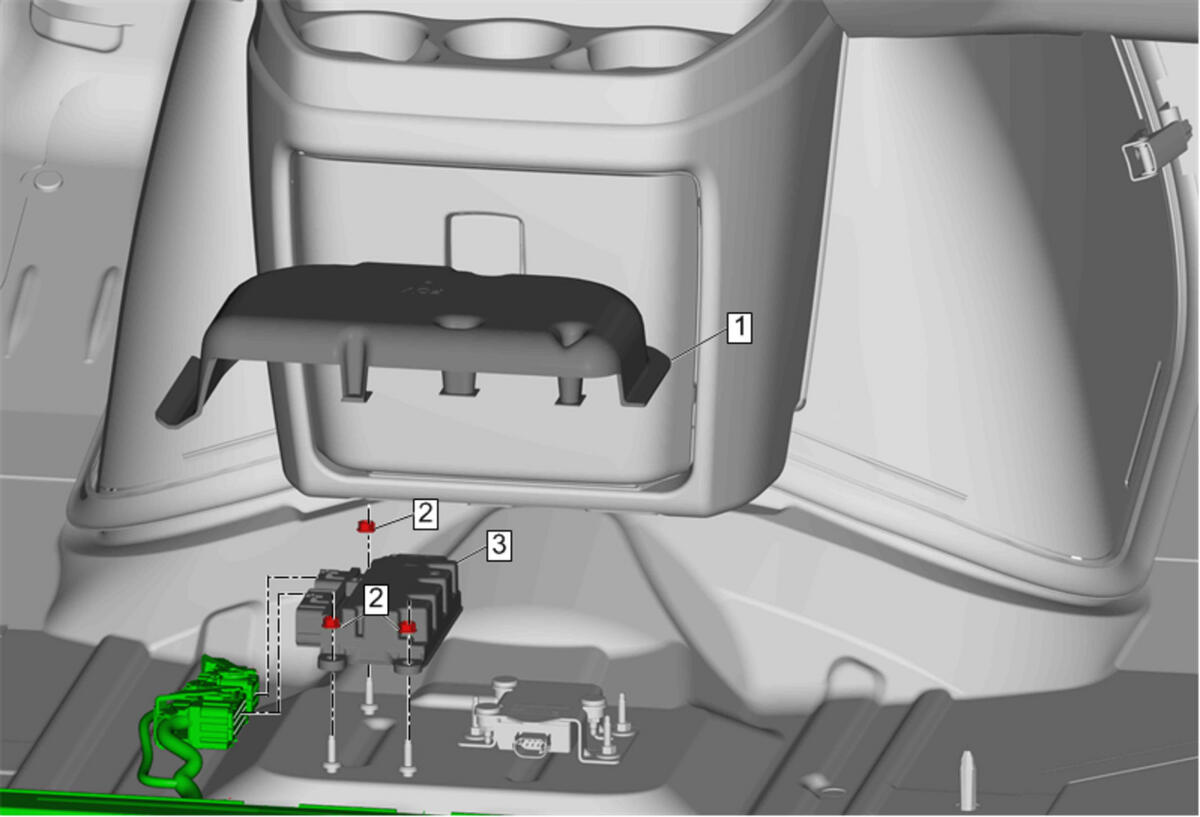

Callout	Component Name
WARNING: Refer to SIR Warning . WARNING: Refer to SIR Inflator Module Handling and Storage Warning . WARNING: Following the deployment of a side impact air bag, inspect the following parts for damage. Replace these parts if necessary: The seat cushion frame The seat recliner, if equipped The seat adjuster The seat back frame Failure to do so may cause future personal injury. Preliminary Procedures Disable the SIR system. SIR Disabling and Enabling Front Floor Panel Carpet Replacement
1	Airbag Vehicle Rollover Sensor Cover
2	Airbag Sensing and Diagnostic Module Nut [3x] CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
3	Restraints Control Module Procedure Disconnect the electrical connectors. Control Module References for programming and setup information, if required. Enable the SIR System. SIR Disabling and Enabling
