Installation Procedure

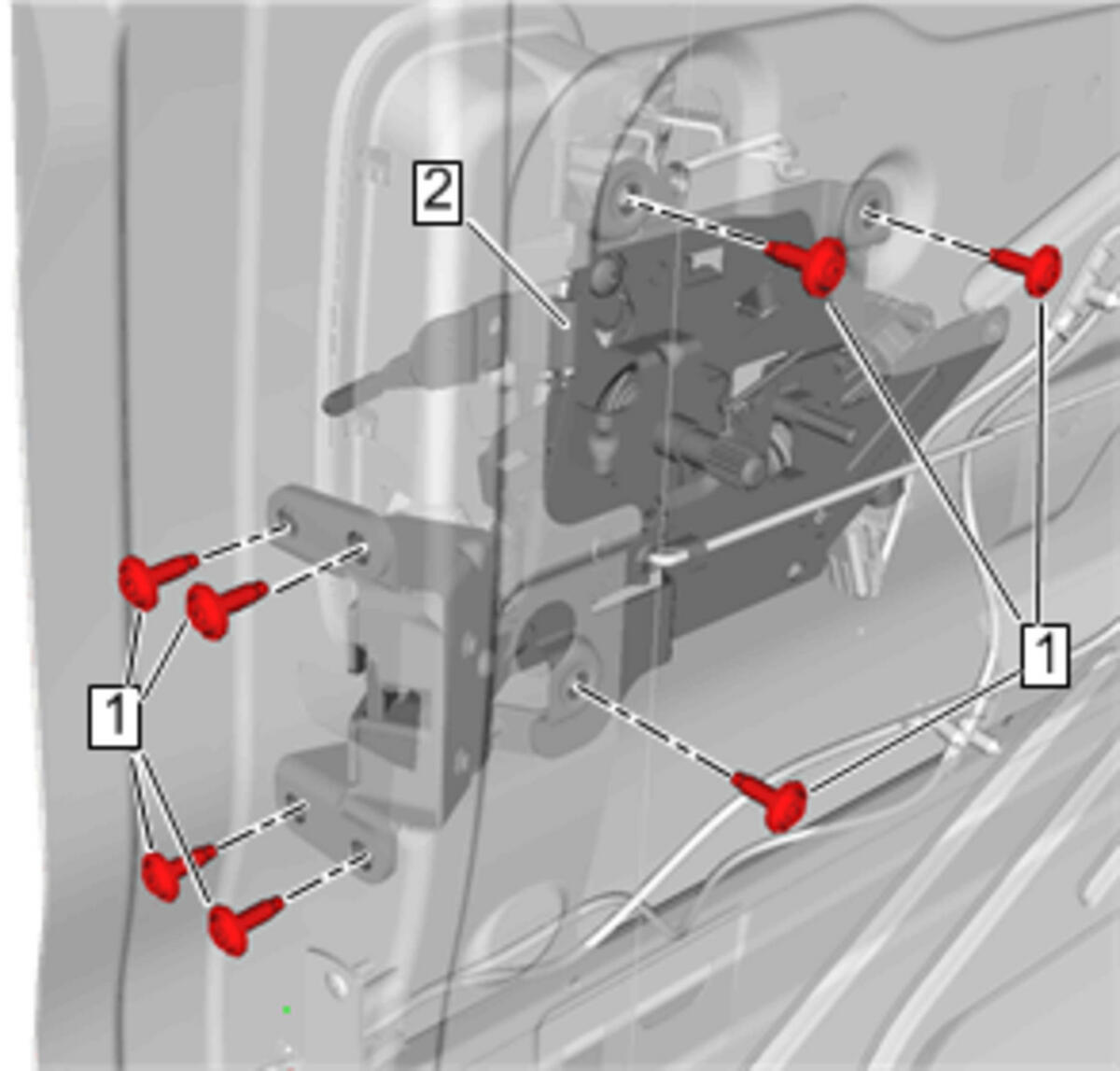

  1. GM4867307Courtesy of GENERAL MOTORS COMPANY

    Door Control (2) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Rear Side Door Latch Bolt (1) - Install and tighten [7x] 10 N.m (88 lb in)

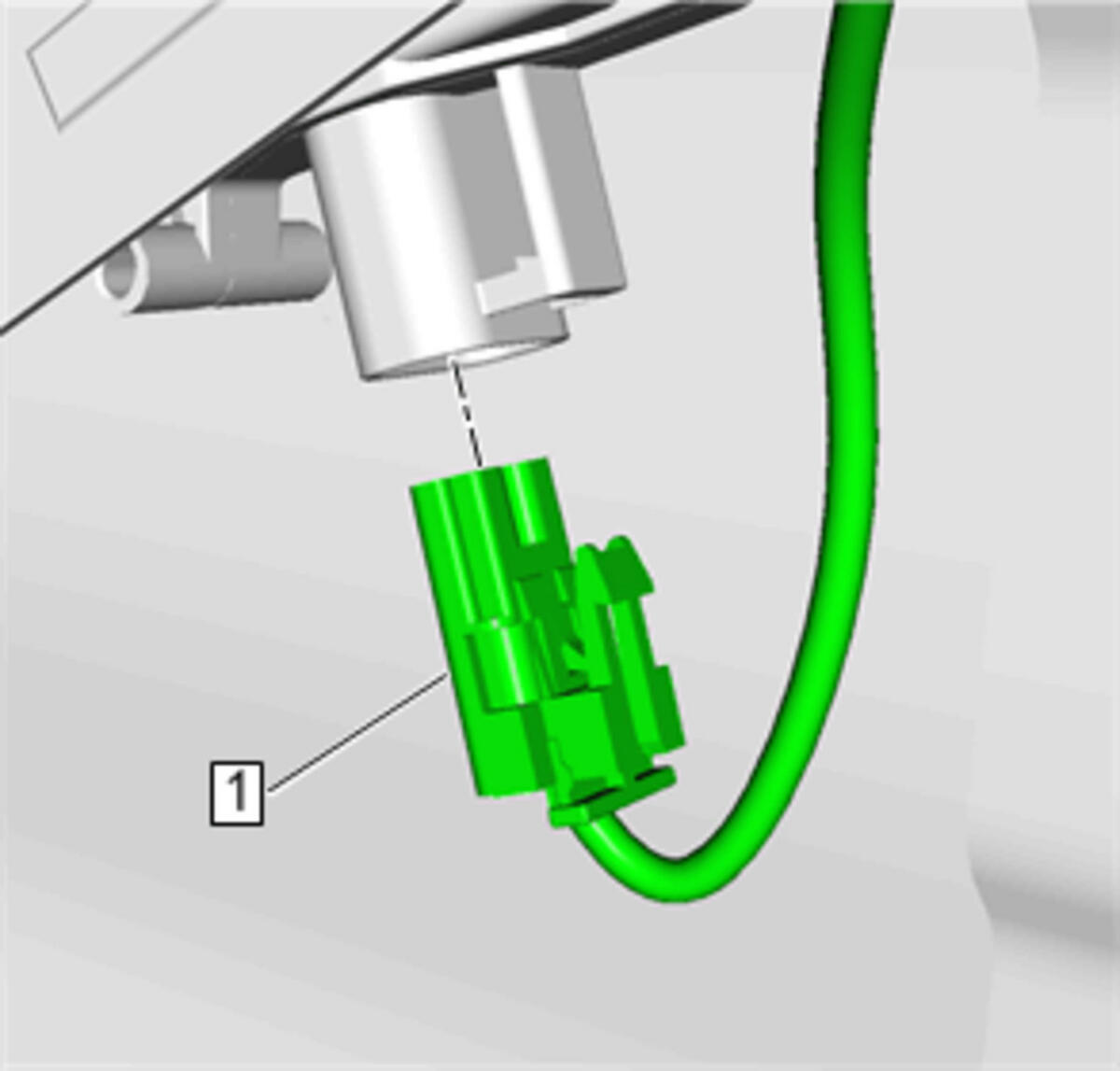

  3. GM4867304Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector. (1) - Install

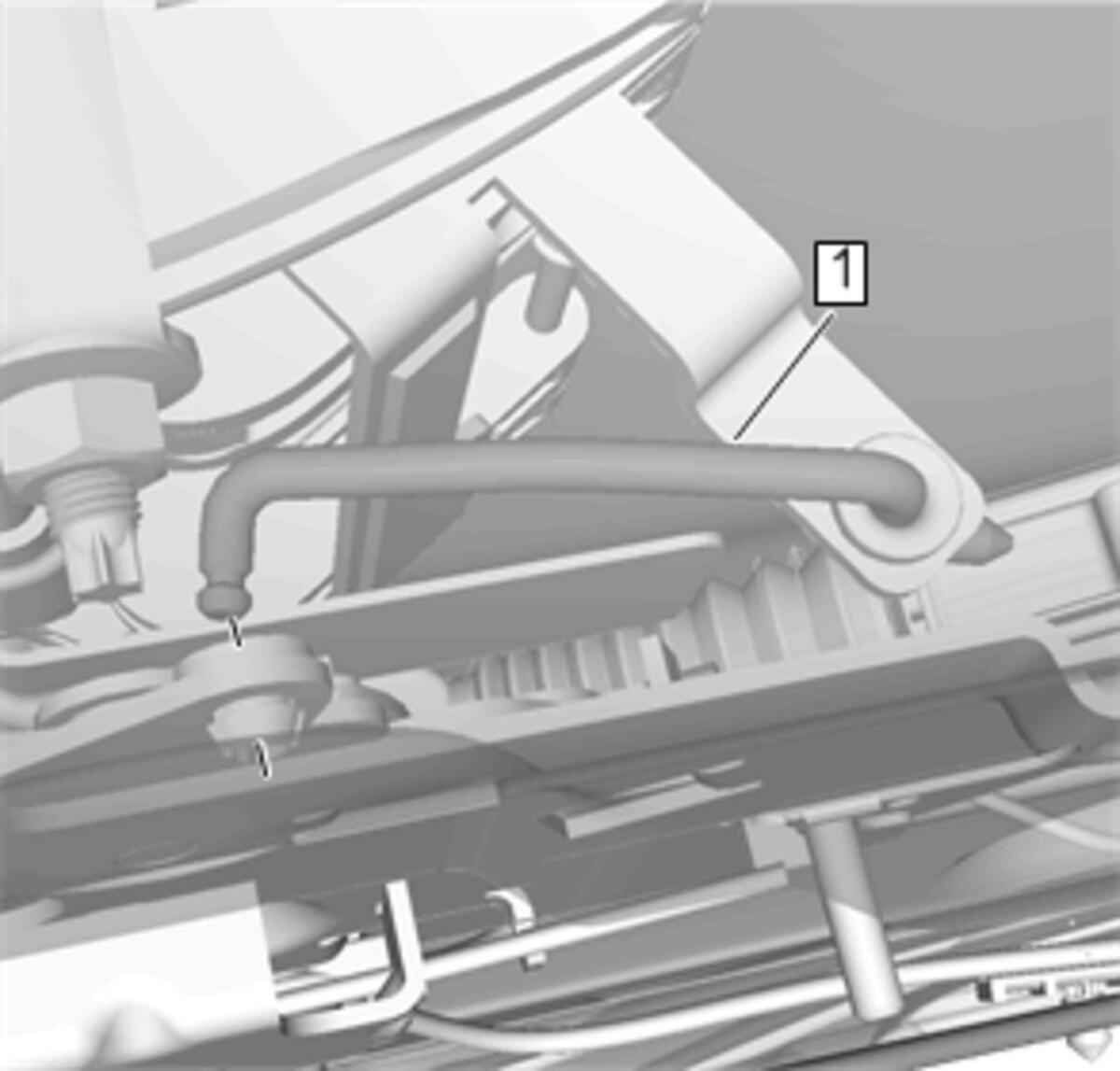

  4. GM4867311Courtesy of GENERAL MOTORS COMPANY

    Rear Side Door Outside Handle Rod (1) - Install

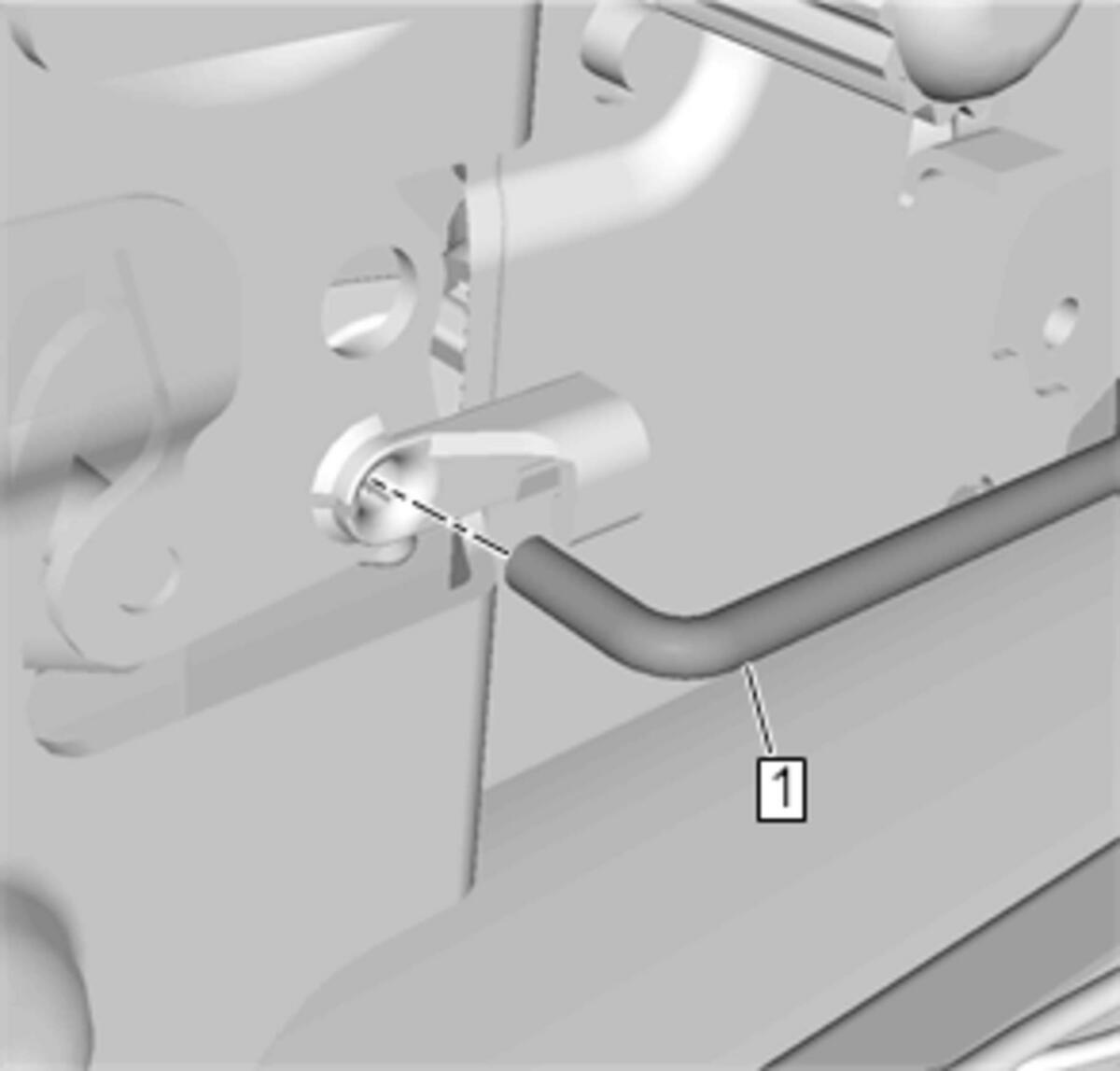

  5. GM4867309Courtesy of GENERAL MOTORS COMPANY

    Rear Side Door Latch Rod (1) - Install

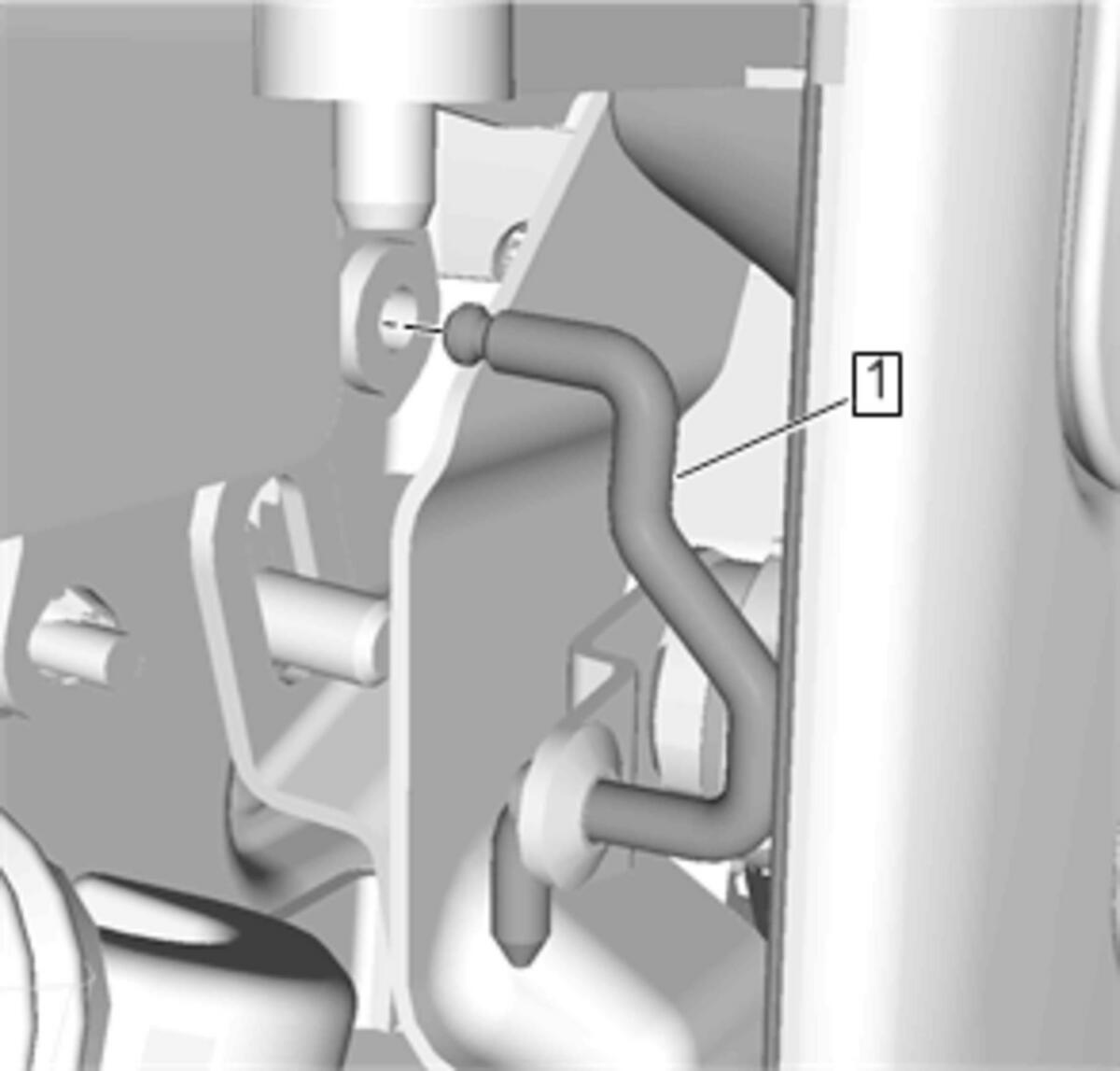

  6. GM4867308Courtesy of GENERAL MOTORS COMPANY

    Rear Side Door Lock Cylinder Rod (1) - Install

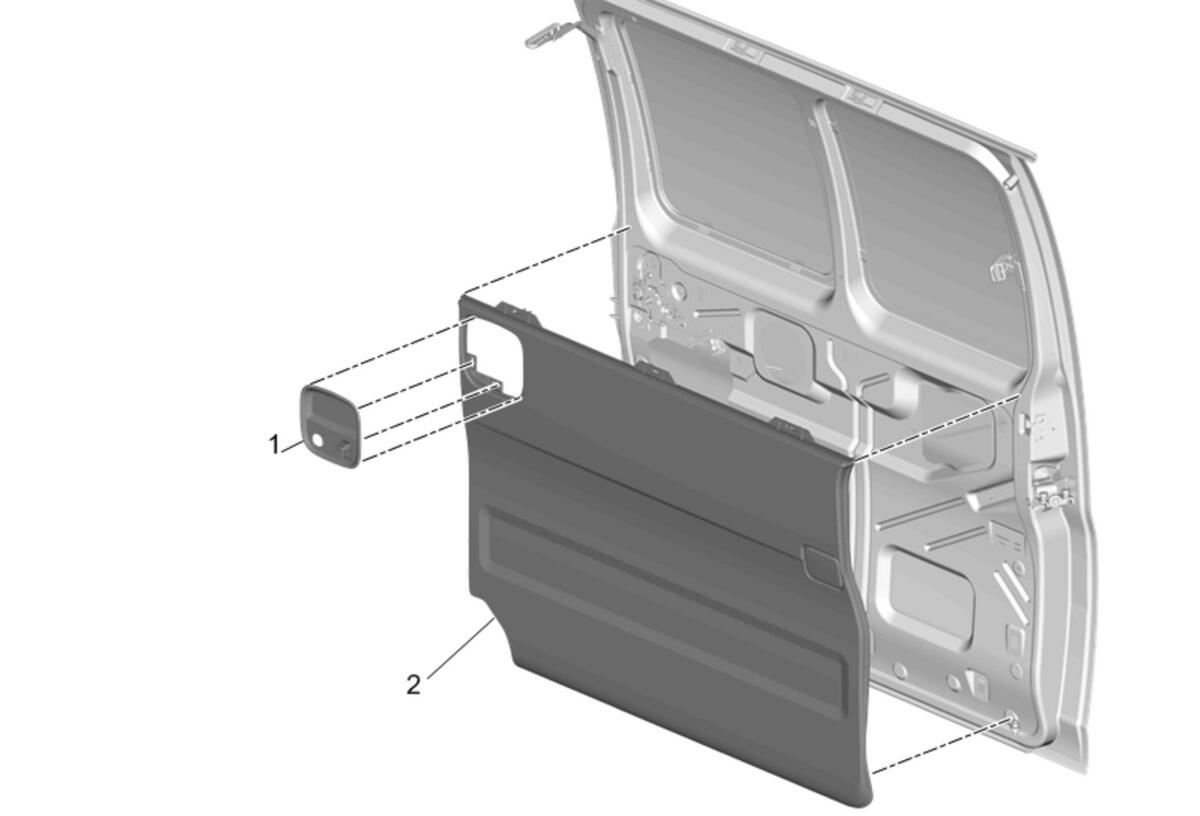

  7. GM4866340Courtesy of GENERAL MOTORS COMPANY

    Sliding Rear Side Door Trim Panel (2) - Install - Sliding Rear Side Door Trim Panel Replacement
