Front of Vehicle Components

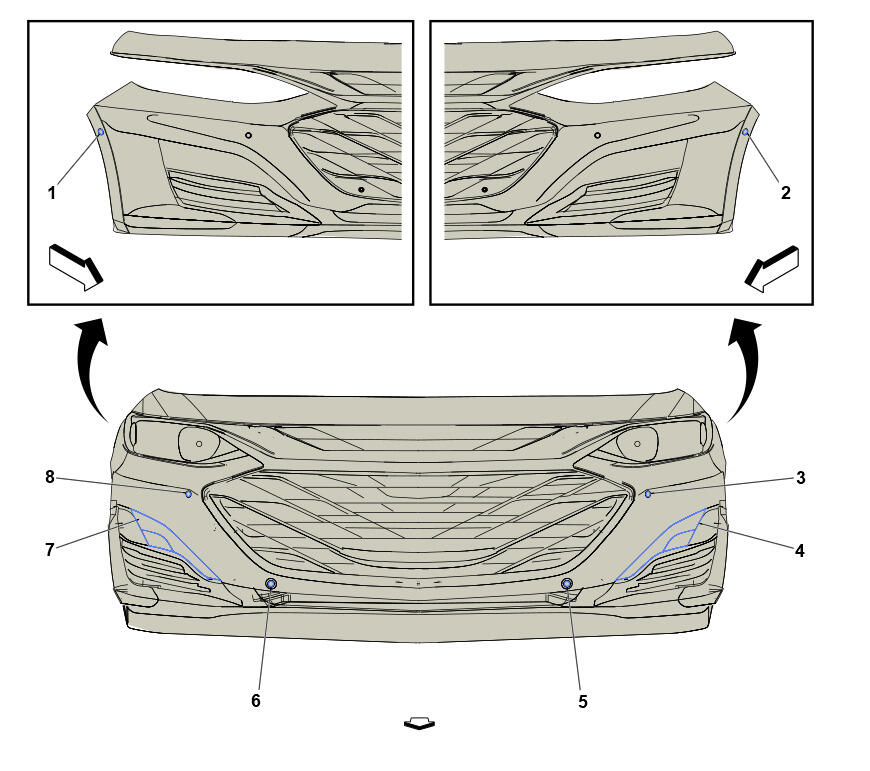

GM5164226Courtesy of GENERAL MOTORS COMPANY
Front of Vehicle Components

Component Name Callout
B306L Parking Assist Sensor - Side Right Front (UFQ) B306L Parking Assist Sensor - Side Right Front 1
B306K Parking Assist Sensor - Side Left Front (UFQ) B306K Parking Assist Sensor - Side Left Front 2
B306A Parking Assist Sensor - Front Left Outer (UD5/UFQ) B306A Parking Assist Sensor - Front Left Outer 3
E4AL Park/Daytime Running Lamp - Left Lower 4
B306B Parking Assist Sensor - Front Left Middle (UD5/UFQ) B306B Parking Assist Sensor - Front Left Middle 5
B306C Parking Assist Sensor - Front Right Middle (UD5/UFQ) B306C Parking Assist Sensor - Front Right Middle 6
E4AM Park/Daytime Running Lamp - Right Lower 7
B306D Parking Assist Sensor - Front Right Outer (UD5/UFQ) B306D Parking Assist Sensor - Front Right Outer 8
