Engine Compartment Components (Left Hand Drive)

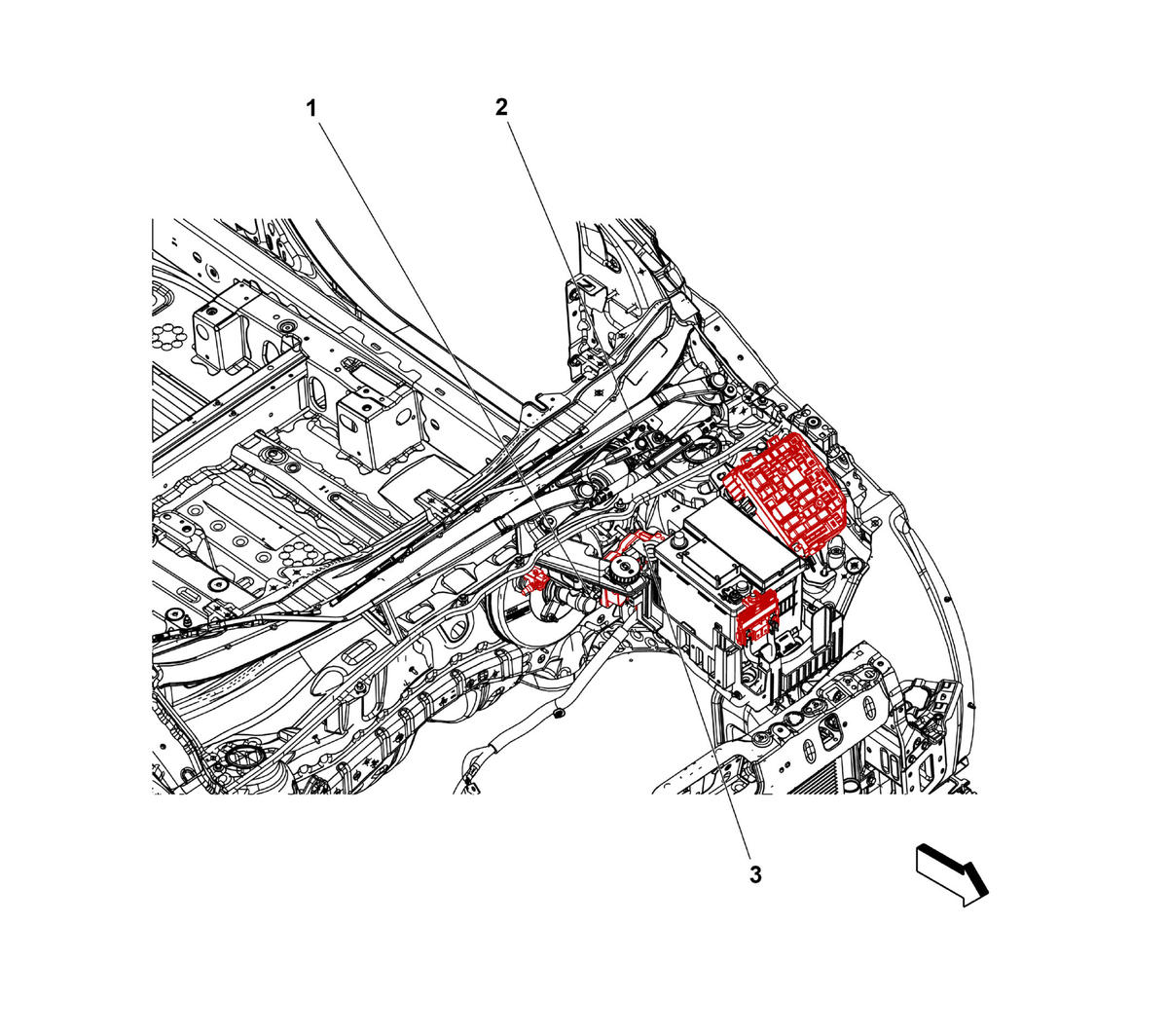

GM4167355Courtesy of GENERAL MOTORS COMPANY
Engine Compartment Components (Left Hand Drive)

Component Name Callout
B20 Brake Fluid Level Switch B20 Brake Fluid Level Switch 1
M75 Windshield Wiper Motor M75 Windshield Wiper Motor 2
K17 Electronic Brake Control Module K17 Electronic Brake Control Module 3
