Engine Components - Lower Rear

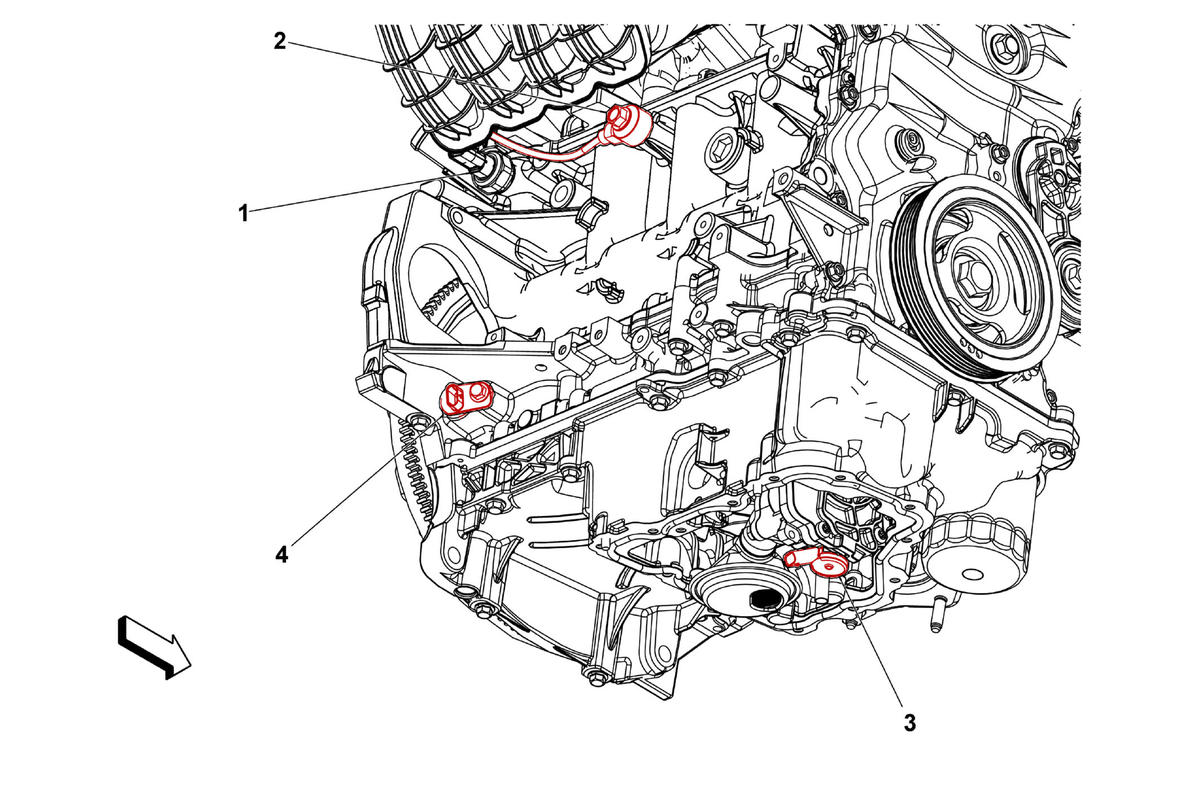

GM4491014Courtesy of GENERAL MOTORS COMPANY
Engine Components - Lower Rear

Component Name Callout
B37B Engine Oil Pressure Sensor B37B Engine Oil Pressure Sensor 1
B68 Knock Sensor B68 Knock Sensor 2
Q44 Engine Oil Pressure Control Solenoid Valve Q44 Engine Oil Pressure Control Solenoid Valve 3
B26 Crankshaft Position Sensor B26 Crankshaft Position Sensor 4
