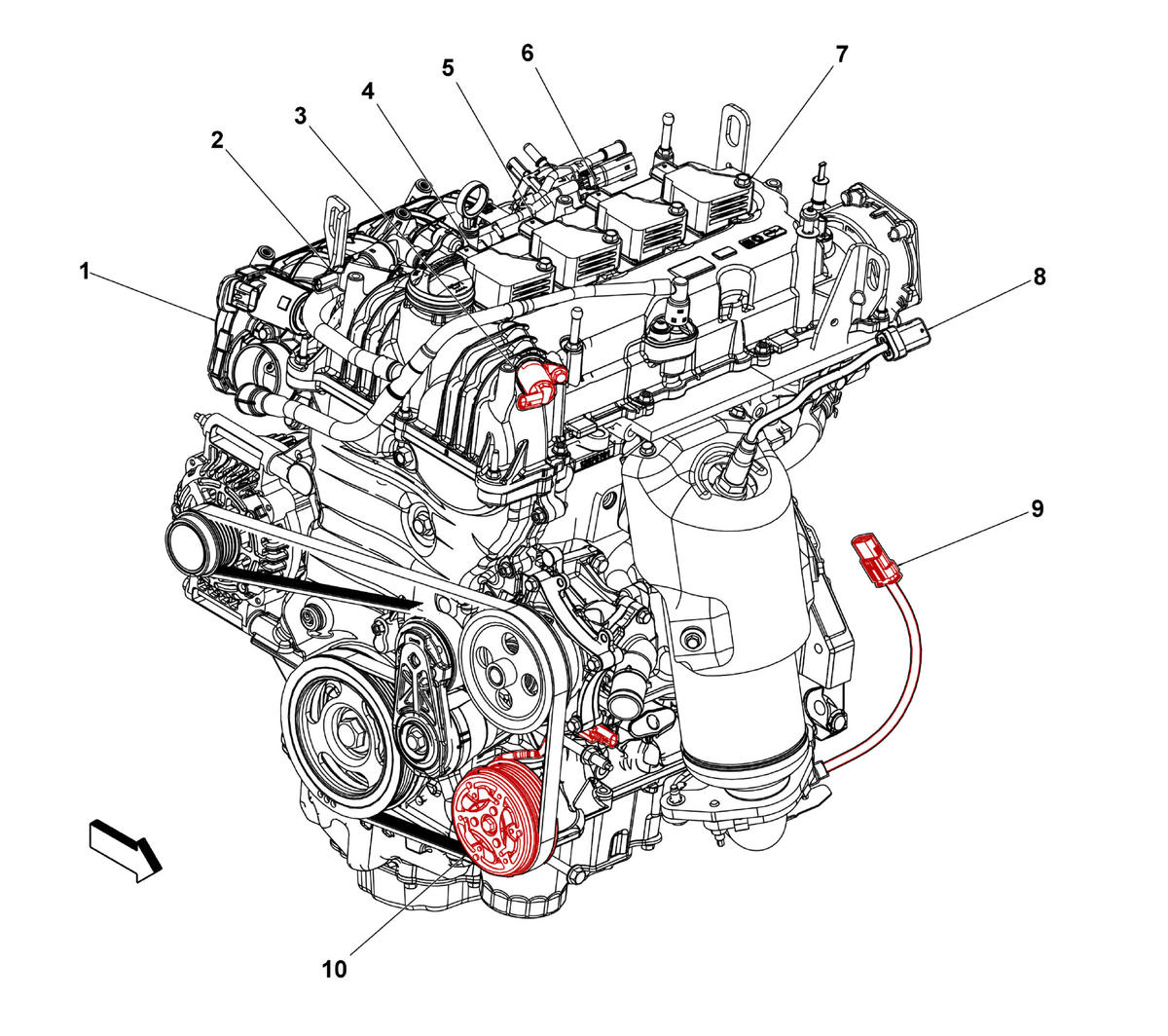

Engine Components - Right Front
Engine Components - Right Front
| Component Name | Callout |
|---|---|
| Q38 Throttle Body Q38 Throttle Body | 1 |
| Q6F Camshaft Position Actuator Solenoid Valve - Intake Q6F Camshaft Position Actuator Solenoid Valve - Intake | 2 |
| Q6E Camshaft Position Actuator Solenoid Valve - Exhaust Q6E Camshaft Position Actuator Solenoid Valve - Exhaust | 3 |
| T8A Ignition Coil 1 T8A Ignition Coil 1 | 4 |
| T8B Ignition Coil 2 T8B Ignition Coil 2 | 5 |
| T8C Ignition Coil 3 T8C Ignition Coil 3 | 6 |
| T8D Ignition Coil 4 T8D Ignition Coil 4 | 7 |
| B52A Heated Oxygen Sensor 1 B52A Heated Oxygen Sensor 1 | 8 |
| B52B Heated Oxygen Sensor 2 B52B Heated Oxygen Sensor 2 | 9 |
| Q2 A/C Compressor Clutch Q2 A/C Compressor Clutch | 10 |
