Fastener Specifications

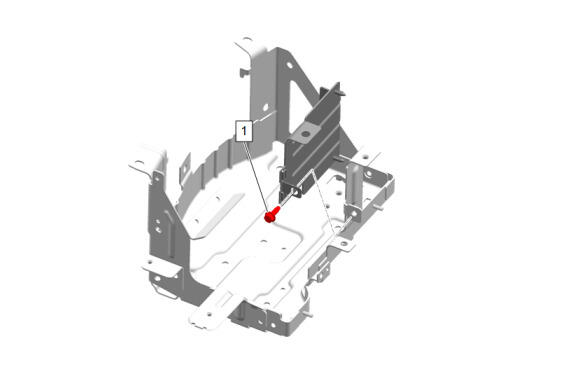

GM5869997Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Battery Insulator Bolt

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Battery Insulator Bolt - - 22 N.m (16 lb ft) Battery Tray Replacement (L84, L87) , or Battery Tray Replacement (LM2)

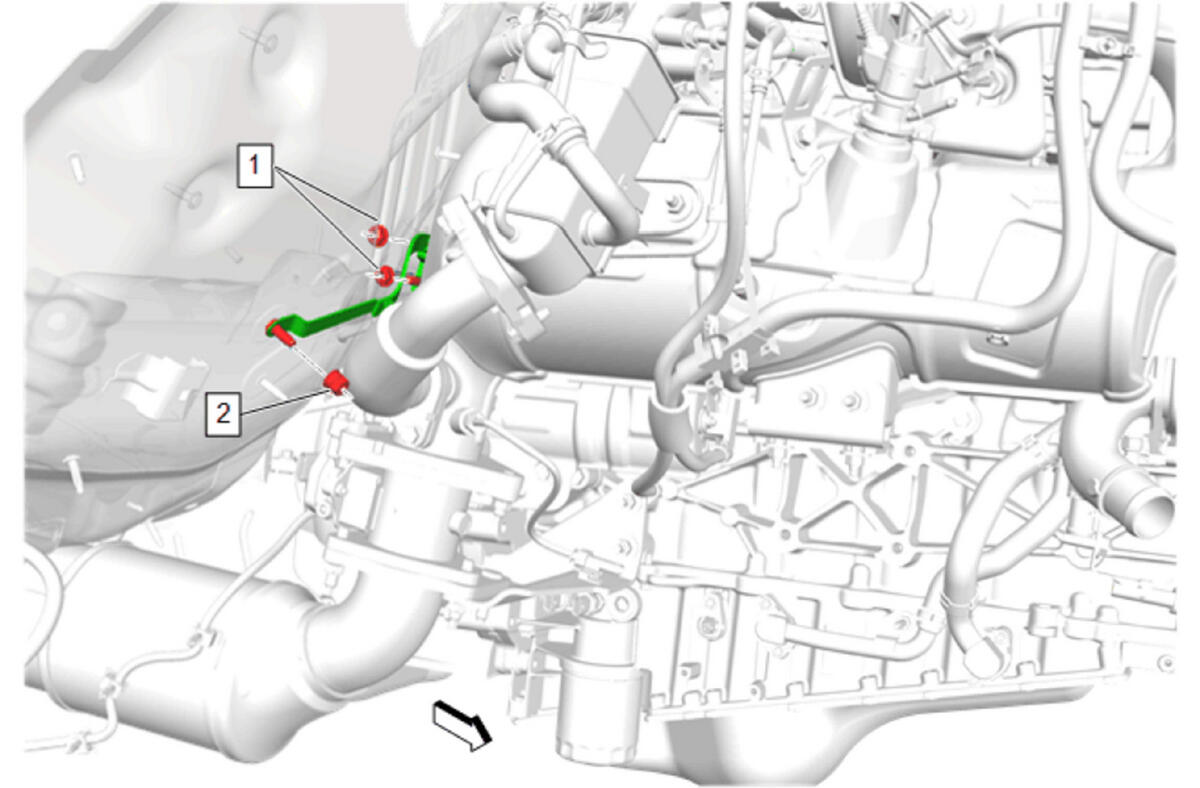

GM5661659Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Battery Negative Cable Extension Cable Strap (LM2)

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Catalytic Converter Brace Bracket Nut - - 22 N.m (16 lb ft) Battery Negative Cable Extension Cable Strap Replacement (LM2)
2 Battery Negative Cable Ground Nut - - 22 N.m (16 lb ft) Battery Negative Cable Extension Cable Strap Replacement (LM2)

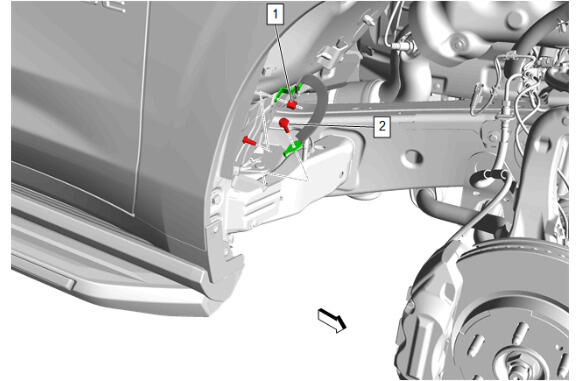

GM5590445Courtesy of GENERAL MOTORS COMPANY
Battery Positive and Negative Cable Strap

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Body Ground Stud Nut - - 22 N.m (16 lb ft) Battery Positive and Negative Cable Strap Replacement
2 Battery Negative Cable Ground Bolt - - 22 N.m (16 lb ft) Battery Positive and Negative Cable Strap Replacement

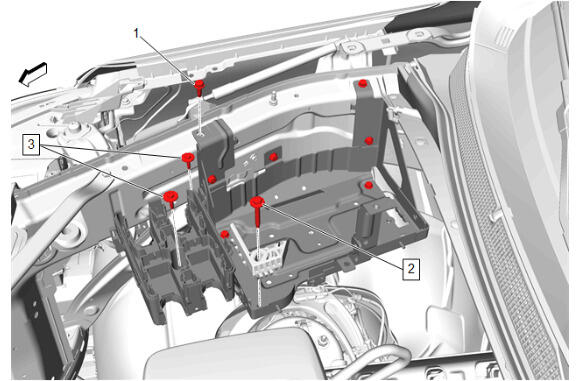

GM5589719Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Battery Tray and Engine Wiring Harness Fuse Block Bracket

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Battery Tray Bolt [7x] - - 22 N.m (16 lb ft) Battery Tray Replacement (L84, L87) , or Battery Tray Replacement (LM2)
2 Battery Hold Down Retainer Bolt - - 22 N.m (16 lb ft) Battery Replacement (LM2) , or Battery Replacement (L84, L87)
3 Engine Wiring Harness Fuse Block Bracket Bolt [2x] - - 9 N.m (80 lb in) Engine Wiring Harness Fuse Block Bracket Replacement

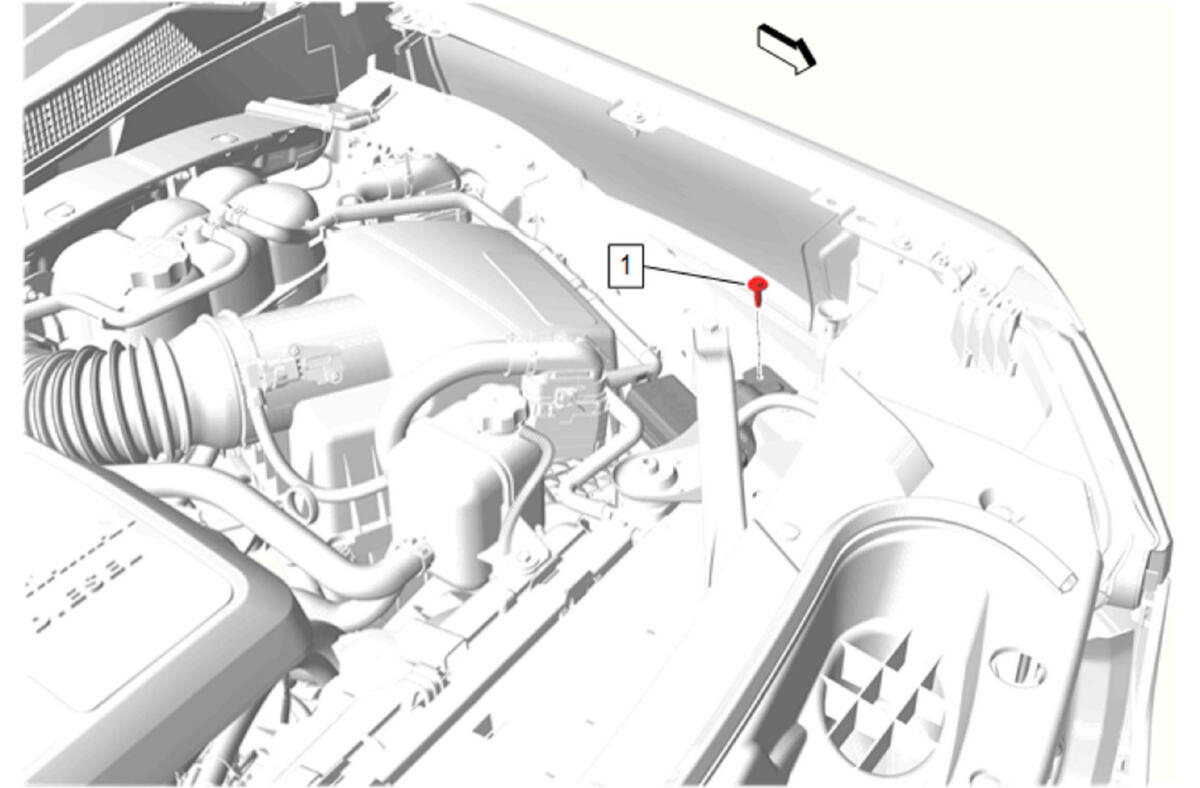

GM5694894Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Engine Wiring Harness Fuse Block Bracket (LM2)

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Engine Wiring Harness Fuse Block Bracket Bolt - - 9 N.m (80 lb in) Air Cleaner Assembly Replacement

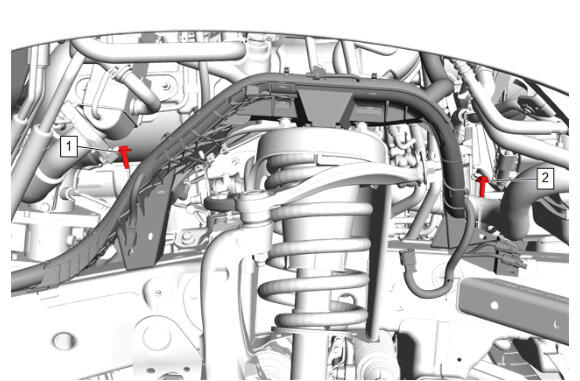

GM5619620Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Chassis Wiring Harness Front Bracket (LM2)

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Chassis Front Wiring Harness Bracket Bolt- Rear - - 22 N.m (16 lb ft) Starter Replacement (LM2)
2 Chassis Front Wiring Harness Bracket Bolt- Front - - 9 N.m (80 lb in) Starter Replacement (LM2)

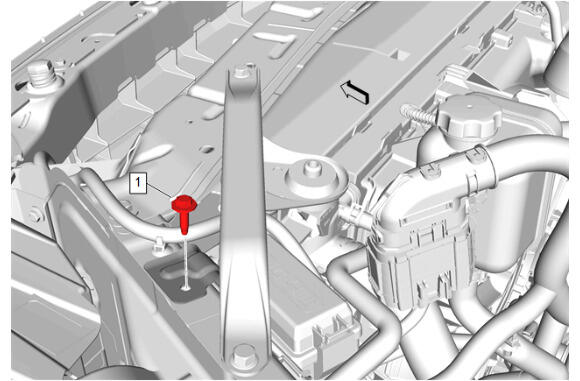

GM5645491Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Engine Wiring Harness Bracket Bracket (LM2)

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Engine Wiring Harness Fuse Block Bracket Bolt - - 9 N.m (80 lb in) Air Cleaner Assembly Replacement

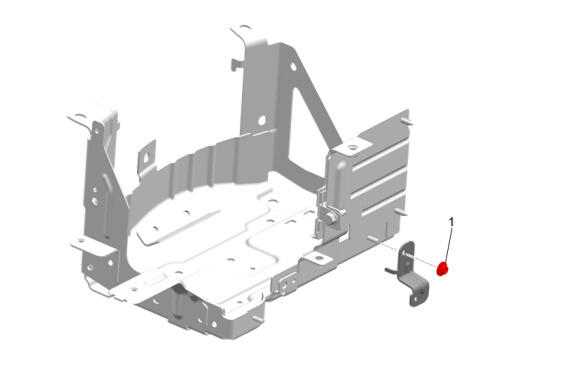

GM5876245Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Heater Inlet Hose Clip Bracket Nut

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Heater Inlet Hose Clip Bracket Nut - - 9 N.m (80 lb in) Battery Tray Replacement (L84, L87) , or Battery Tray Replacement (LM2)

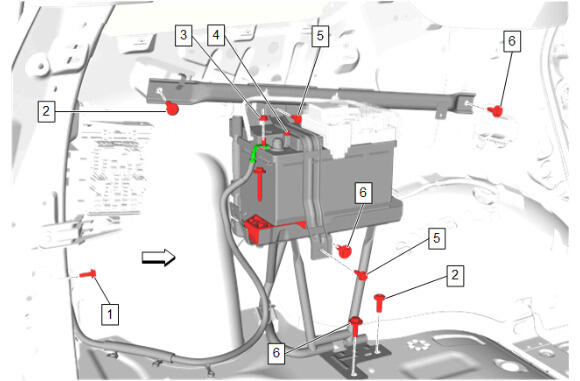

GM5589991Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Left Rear Compartment Area (9C1, 5W4)

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Battery Negative Cable Ground Bolt - - 22 N.m (16 lb ft) Auxiliary Battery Negative Cable Replacement (9C1, 5W4)
2 Battery Auxiliary Tray Bolt [2x] - - 45 N.m (33 lb ft) Battery Auxiliary Tray Replacement (9C1, 5W4)
3 Battery Negative Cable Ground Nut - - 9 N.m (80 lb in) Auxiliary Battery Negative Cable Replacement (9C1, 5W4)
4 Battery Post Negative Cable Clamp Nut - - 4.5 N.m (40 lb in) Battery Negative Cable Disconnection and Connection (9C1, 5W4) , or Battery Negative Cable Disconnection and Connection (KL9)
5 Battery Hold Down Strap Bolt [3x] - - 9 N.m (80 lb in) Auxiliary Battery Replacement (9C1, 5W4)
6 Battery Auxiliary Tray Bolt [2x] - - 22 N.m (16 lb ft) Battery Auxiliary Tray Replacement (9C1, 5W4)
7 Battery Hold Down Retainer Bolt - - 22 N.m (16 lb ft) Auxiliary Battery Replacement (9C1, 5W4)

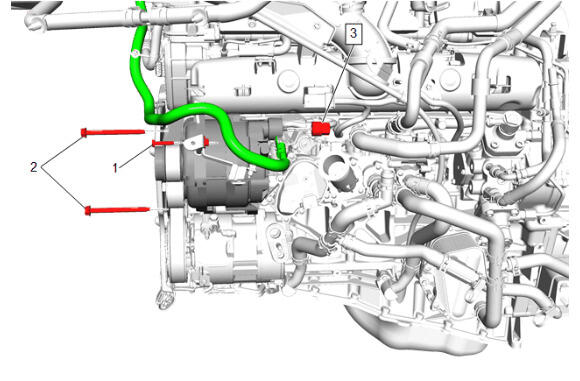

GM5620568Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Left Side of Engine (LM2)

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Engine Wiring Harness Bracket Bolt - - 9 N.m (80 lb in) Generator Replacement (LM2)
2 Generator Bolt [2x] - - 22 N.m (16 lb ft) Generator Replacement (LM2)
3 Battery Positive Cable Nut - - 15 N.m (11 lb ft) Generator Replacement (LM2)

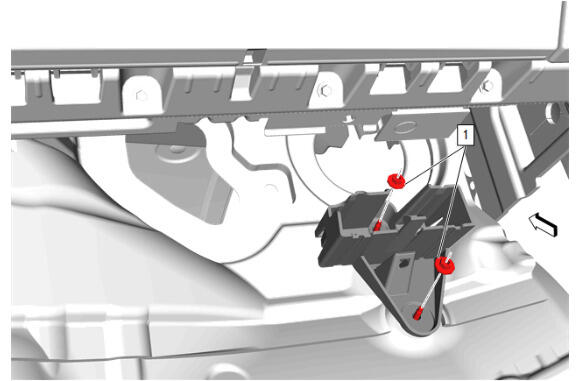

GM5604877Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Multifunction Power Supply Converter Bracket

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Multifunction Power Supply Converter Nut [2x] - - 9 N.m (80 lb in) Multifunction Power Supply Converter Bracket Replacement

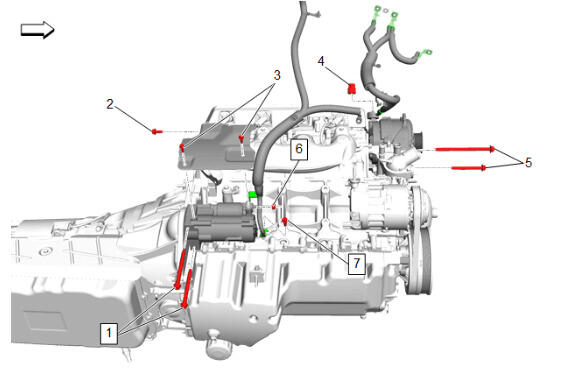

GM5584416Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Right Side of Engine (L84, L87)

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Starter Bolt [2x] - - 58 N.m (43 lb ft) Starter Replacement (L84, L87)
2 Starter Heat Shield Bolt - - 22 N.m (16 lb ft) Starter Heat Shield Replacement (L84, L87)
3 Starter Heat Shield Bolt [2x] - - 9 N.m (80 lb in) Starter Heat Shield Replacement (L84, L87)
4 Battery Positive Cable Nut - - 15 N.m (11 lb ft) Generator Replacement (L84, L87)
5 Generator Bolt [2x] - - 58 N.m (43 lb ft) Generator Replacement (L84, L87)
6 Starter Solenoid Cable Nut - - 14 N.m (124 lb in) Starter Replacement (L84, L87)
7 Battery Negative Cable Ground Bolt - - 22 N.m (16 lb ft) Starter Solenoid Cable Replacement (L84, L87)

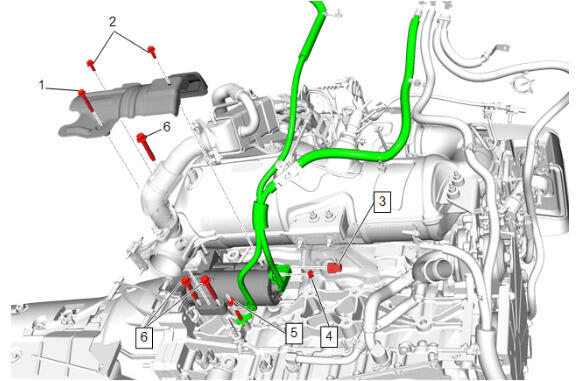

GM5620566Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Right Side of Engine (LM2)

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Starter Heat Shield Bolt - - 9 N.m (80 lb in) Starter Heat Shield Replacement (LM2)
2 Starter Heat Shield Bolt [2x] - - 9 N.m (80 lb in) Starter Heat Shield Replacement (LM2)
3 Starter Solenoid Cable Nut - - 15 N.m (11 lb ft) Starter Replacement (LM2)
4 Wiring Harness Conduit Nut - - 9 N.m (80 lb in) Starter Replacement (LM2)
5 Engine Wiring Harness Ground Nut - - 22 N.m (16 lb ft) Starter Solenoid Cable Replacement (LM2)
6 Starter Bolt [3x] - - 58 N.m (43 lb ft) Starter Replacement (LM2)

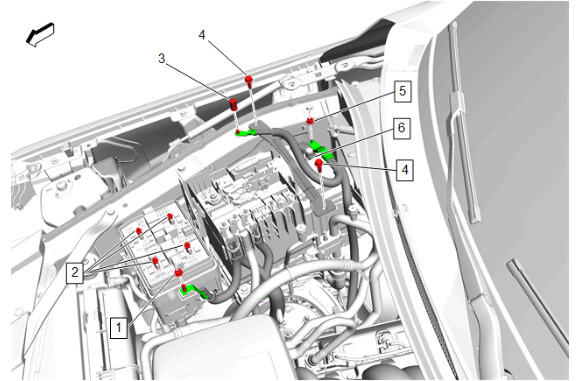

GM5587487Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Right Side of Engine Compartment

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Battery Positive Cable Nut - - 15 N.m (11 lb ft) Engine Wiring Harness Junction Block Replacement
2 Engine Wiring Harness Junction Block Bolt [4x] - - 6 N.m (53 lb in) Engine Wiring Harness Junction Block Replacement
3 Battery Negative Cable Ground Nut - Yes 22 N.m (16 lb ft) Starter Solenoid Cable Replacement (L84, L87) , or Starter Solenoid Cable Replacement (LM2)
4 Battery Hold Down Strap Bolt [2x] - - 22 N.m (16 lb ft) Battery Hold Down Strap Replacement
5 Battery Negative Cable Ground Nut - - 9 N.m (80 lb in) Battery Monitor Module Replacement (KL9)
6 Battery Negative Post Clamp Nut - - 4.5 N.m (40 lb in) Battery Monitor Module Replacement (KL9)

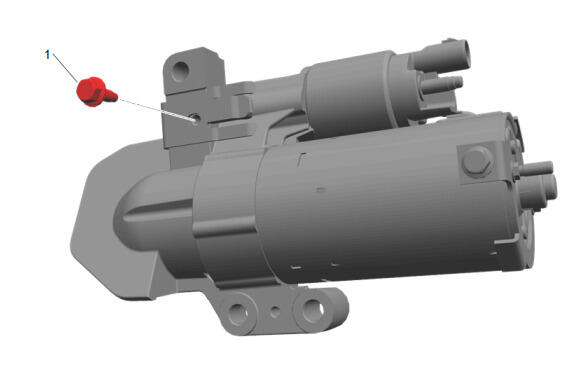

GM5877114Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Starter Shield Retainer

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Starter Shield Bolt - - 9 N.m (80 lb in) Starter Replacement (L84, L87) , or Starter Replacement (LM2)
