Installation Procedure

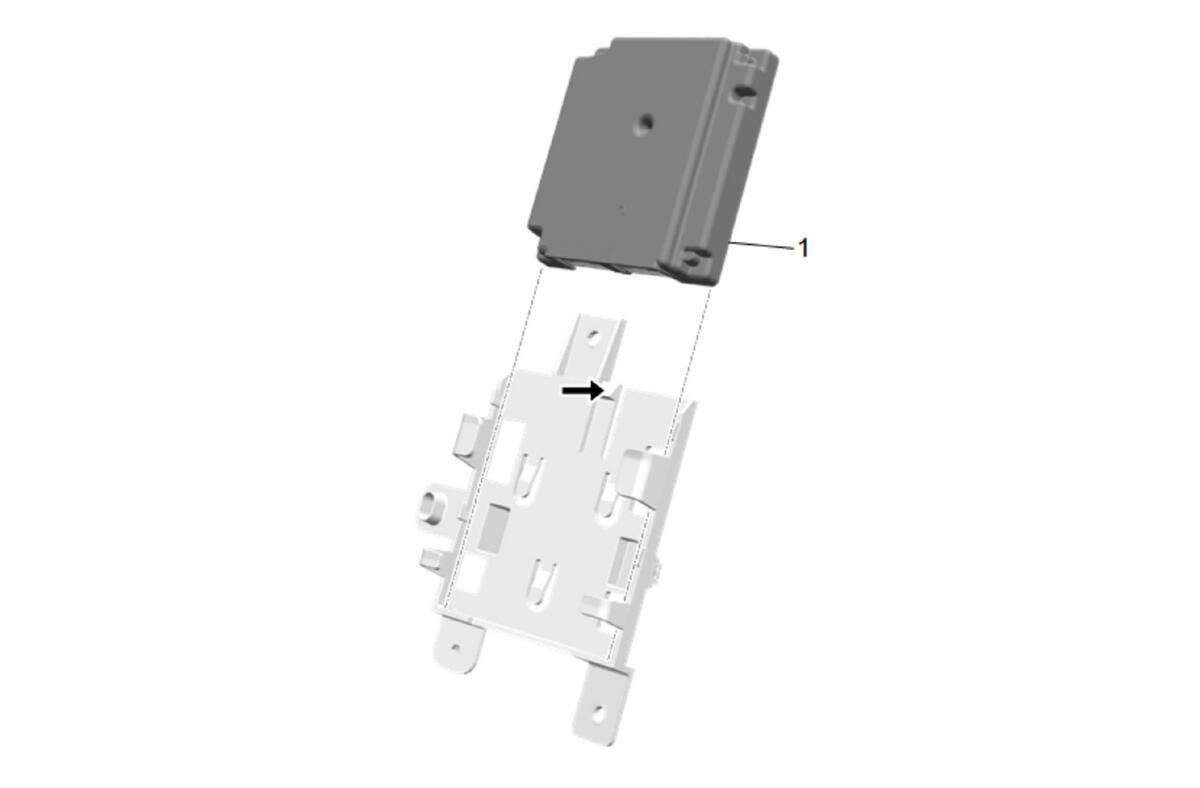

  1. Image Processing Module (1) - Install
    GM5581886Courtesy of GENERAL MOTORS COMPANY
  2. Secure the retaining tab.
  3. Install wiring harness retainers
  4. Active Safety Control Module Bracket (2) - Install

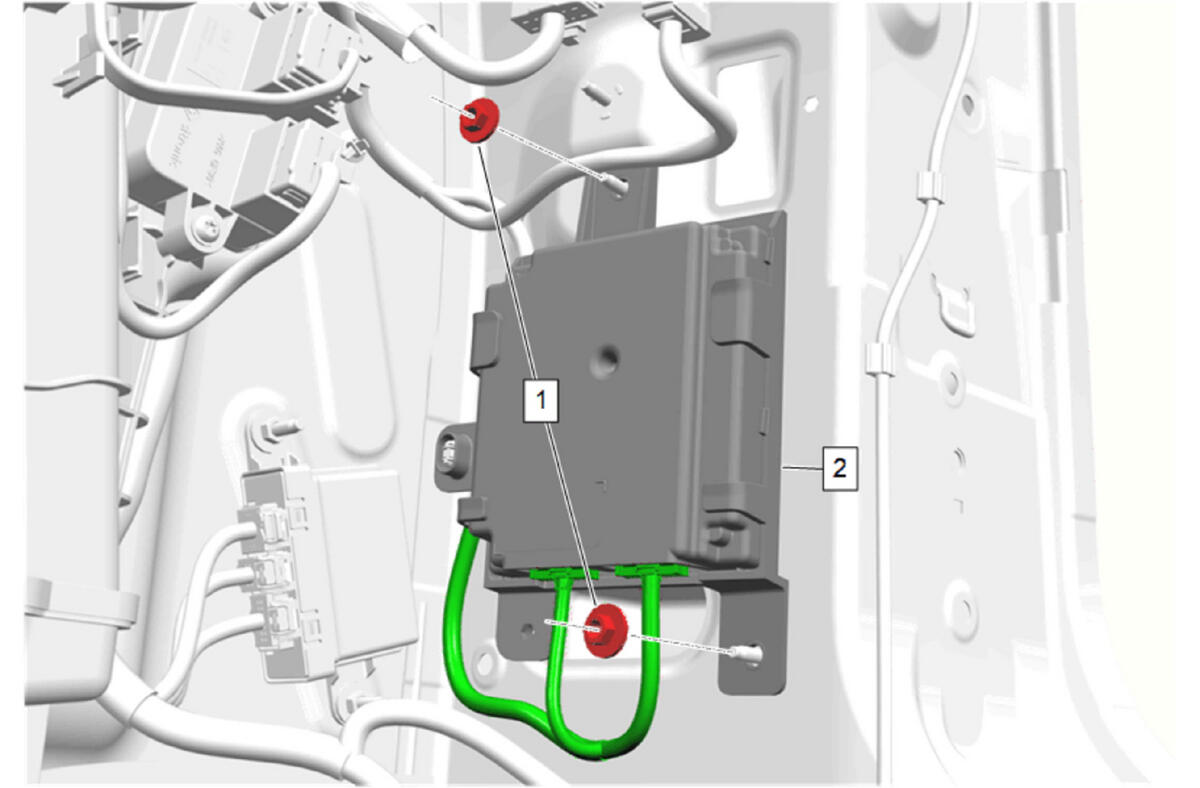

    GM5581893Courtesy of GENERAL MOTORS COMPANY
    5. CAUTION:

    Refer to Fastener Caution .

  5. Active Safety Control Module Bracket Nut (1) - Install and tighten [2x] - Fastener Specifications
  6. Connect the electrical connectors.
  7. Install the wiring harness retainers, as needed.
    GM5605067Courtesy of GENERAL MOTORS COMPANY
  8. Quarter Lower Rear Trim Panel (1) - Install
  9. Cargo Tie Down Loop (4) - Install

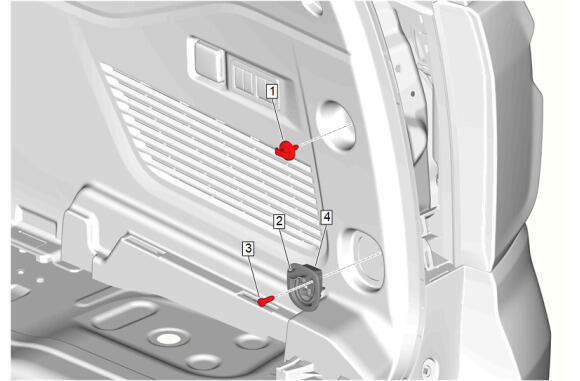

    GM5605064Courtesy of GENERAL MOTORS COMPANY
  10. Cargo Tie Down Loop Bolt (3) - Install and tighten - Fastener Specifications
  11. Cargo Tie Down Loop Bolt Cap (2) - Close
  12. Convenience Net Retainer (1) - Install and tighten - Fastener Specifications
  13. 3rd Row Seat Belt Retractor Bolt- Lower (1) - Install and tighten - Fastener Specifications

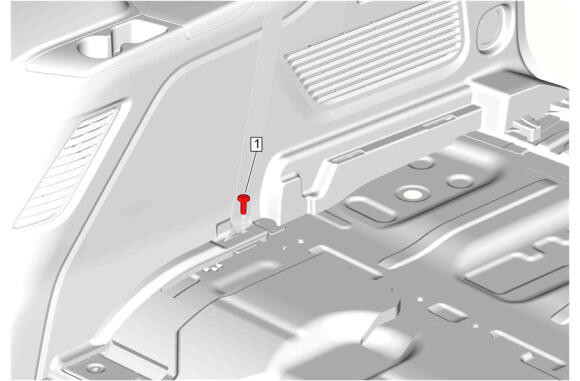

    GM5605055Courtesy of GENERAL MOTORS COMPANY

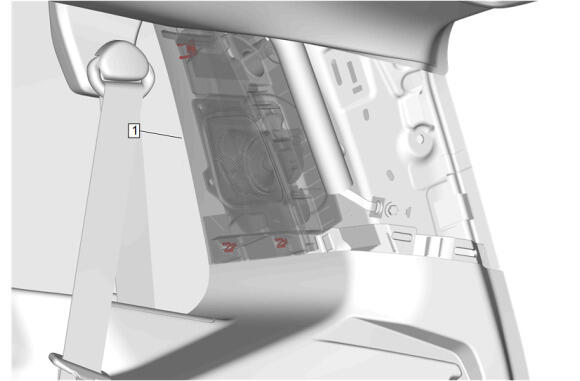

  14. Body Rear Corner Upper Garnish Molding (1) - Install

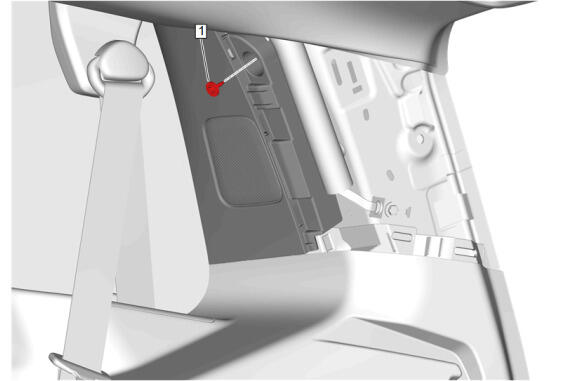

    GM5591930Courtesy of GENERAL MOTORS COMPANY
  15. Body Rear Corner Upper Garnish Molding Bolt (1) - Install and tighten - Fastener Specifications
    GM5591929Courtesy of GENERAL MOTORS COMPANY

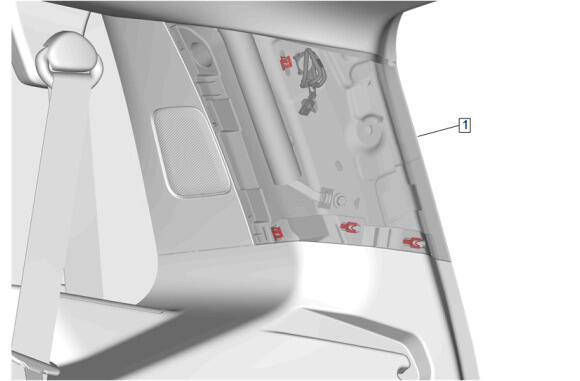

  16. Body Side Rear Window Garnish Molding (1) - Install
    GM5591927Courtesy of GENERAL MOTORS COMPANY
  17. Body Lock Pillar Upper Trim Panel (1) - Install

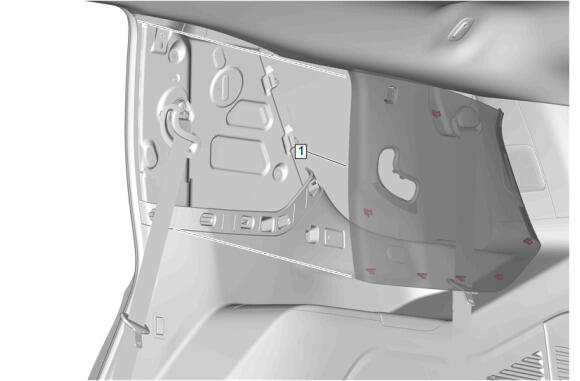

    GM5591925Courtesy of GENERAL MOTORS COMPANY
  18. Quarter Window Trim Finish Panel Bolt (2) - Install and tighten - Fastener Specifications

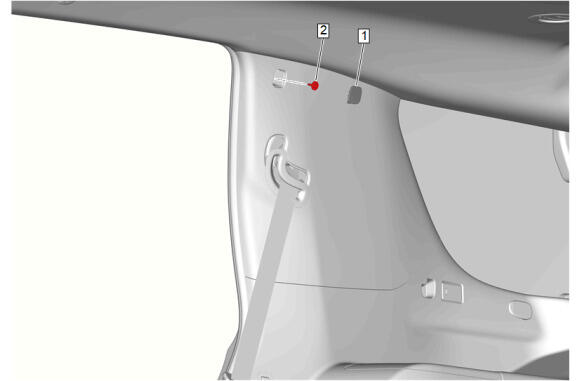

    GM5591923Courtesy of GENERAL MOTORS COMPANY
  19. Quarter Window Trim Finish Panel Bolt Cap (1) - Install

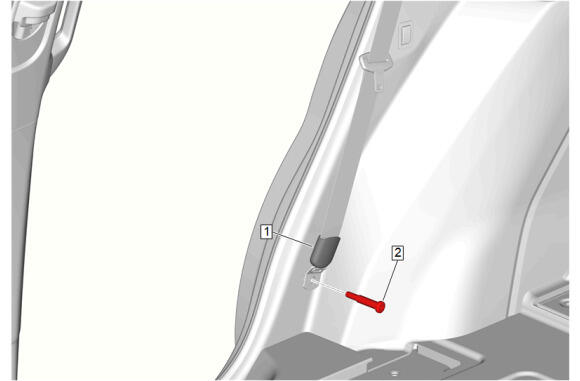

  20. Rear Seat Belt Retractor Anchor Plate Bolt (2) - Install and tighten - Fastener Specifications
    GM5591921Courtesy of GENERAL MOTORS COMPANY
  21. Rear Seat Belt Retractor Sleeve (1) - Reposition

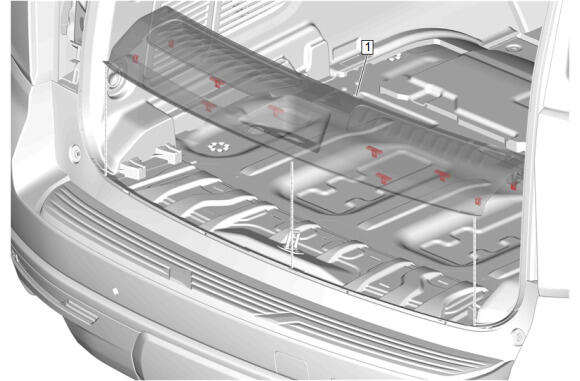

  22. Rear End Trim Finish Panel (1) - Install
    GM5577844Courtesy of GENERAL MOTORS COMPANY

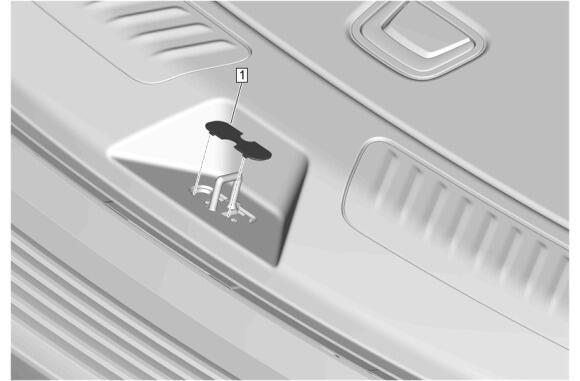

  23. Liftgate Lock Striker Cover (1) - Install
    GM5577843Courtesy of GENERAL MOTORS COMPANY
  24. Liftgate Weatherstrip (1) - Reposition

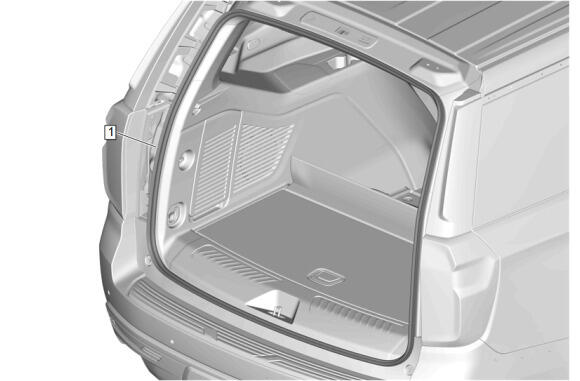

    GM5577842Courtesy of GENERAL MOTORS COMPANY
  25. Return the rear seat (1) to the original position.

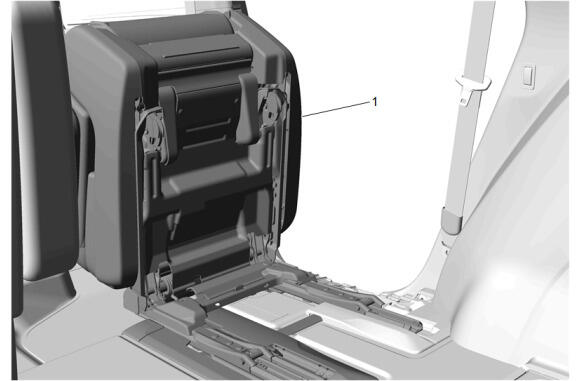

    GM5607687Courtesy of GENERAL MOTORS COMPANY

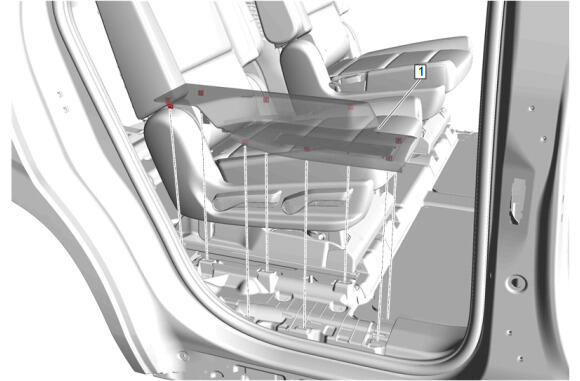

  26. Rear Side Door Sill Garnish Molding (1) - Install
    GM5591920Courtesy of GENERAL MOTORS COMPANY
  27. Enable the SIR System. SIR Disabling and Enabling
  28. 3rd Row Seat (2) - Install - 3rd Row Seat Removal and Installation

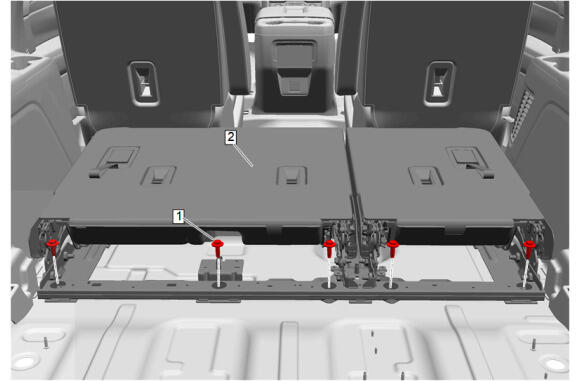

    GM5598917Courtesy of GENERAL MOTORS COMPANY
  29. Perform the necessary programming and setup procedure:Control Module References
