Installation Procedure

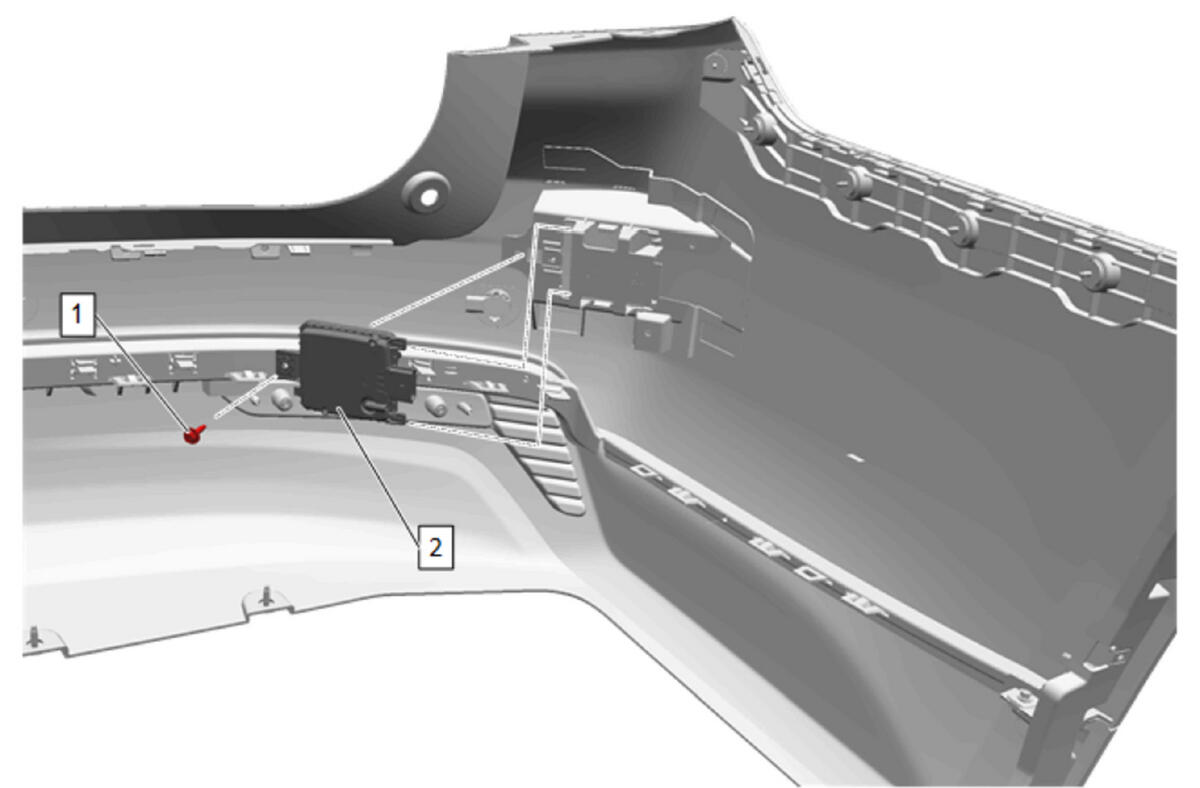

  1. Side Object Sensing Alert Module (2) - Install
    GM5567759Courtesy of GENERAL MOTORS COMPANY
    2. CAUTION:

    Refer to Fastener Caution .

  2. Side Object Sensing Alert Module Bolt (1) - Install and tighten - Fastener Specifications
  3. Connect the electrical connector.
  4. Perform the necessary programming and setup procedure: - Control Module References
  5. Lower the vehicle.
