Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

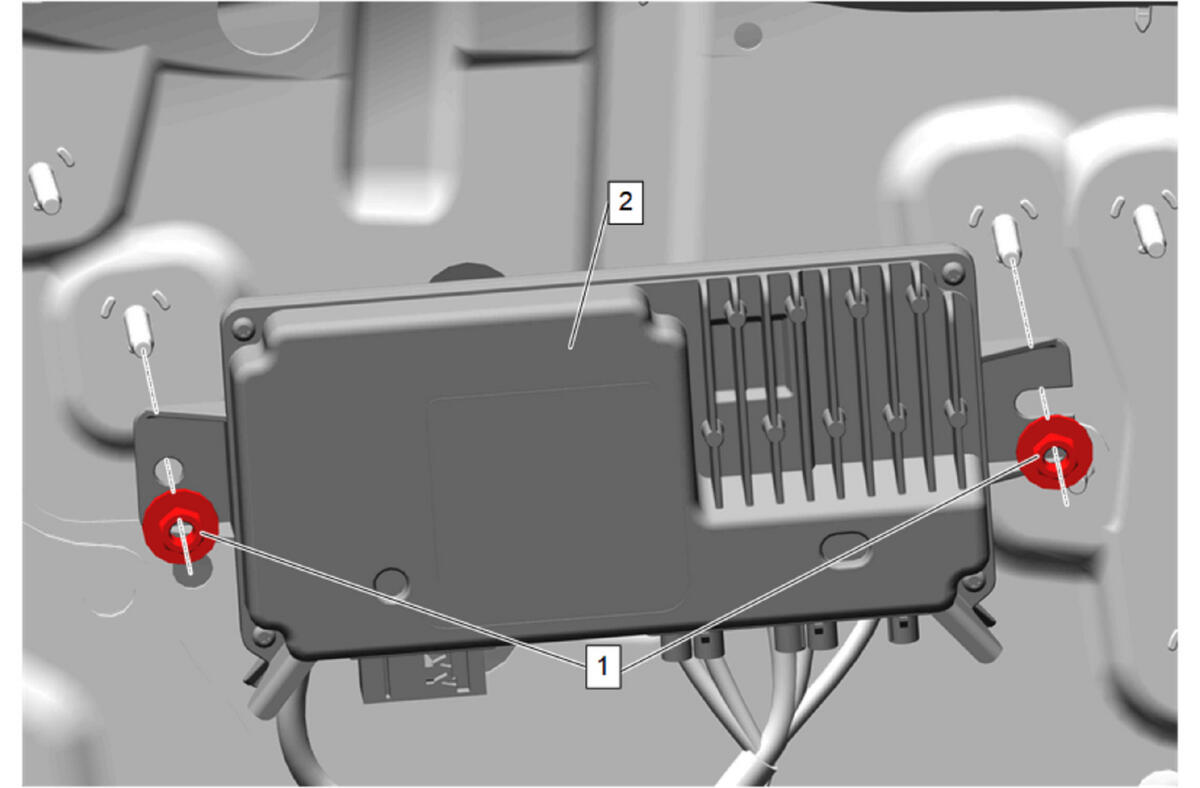

Video Processing Module (2) - Install

CAUTION:

Refer to Fastener Caution .

Video Processing Module Nut (1) - Install and tighten [2x] - Fastener Specifications
Connect the electrical connectors.
Courtesy of GENERAL MOTORS COMPANY

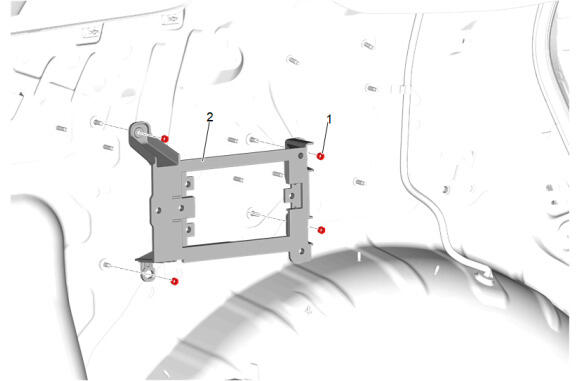

Radio Speaker Amplifier Bracket (2) - Install
Radio Speaker Amplifier Bracket Nut (1) - Install and tighten [4x] Fastener Specifications
Position the wiring harness.
Courtesy of GENERAL MOTORS COMPANY

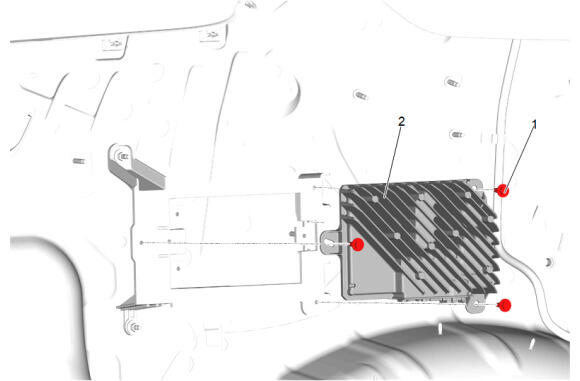

Radio Speaker Amplifier (2) - Install
Radio Speaker Amplifier Bolt (1) - Install and tighten [3x] Fastener Specifications
Connect the electrical connectors.
Courtesy of GENERAL MOTORS COMPANY

Install the wiring harness retainers (2).
Connect the electrical connectors (1).
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Feed the rear seat belt opening bezel and 3rd row seat belt through the quarter lower rear trim panel.

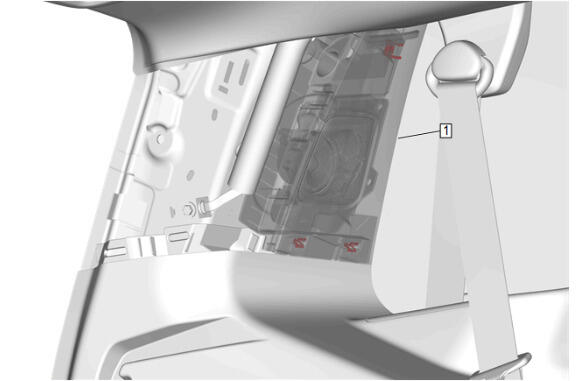

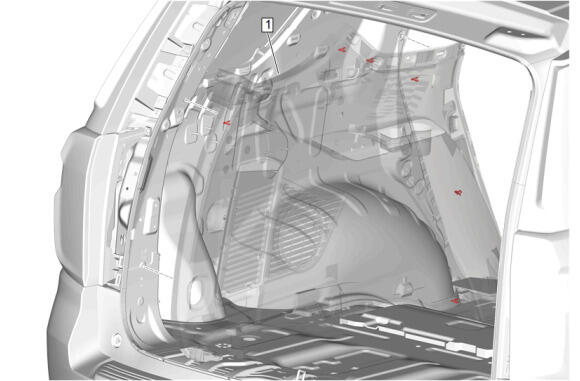

Quarter Lower Rear Trim Panel (1) - Install
Courtesy of GENERAL MOTORS COMPANY

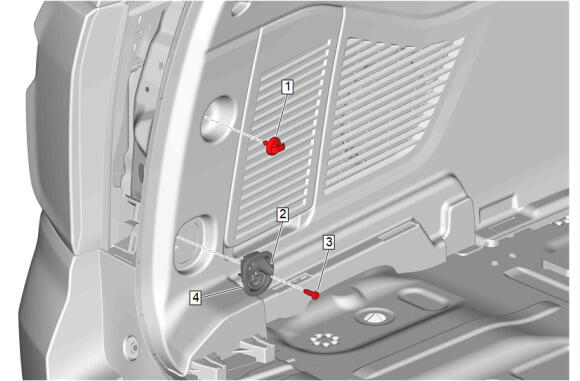

Cargo Tie Down Loop (4) - Install
Cargo Tie Down Loop Bolt (3) - Install and tighten - Fastener Specifications
Cargo Tie Down Loop Bolt Cap (2) - Close
Convenience Net Retainer (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

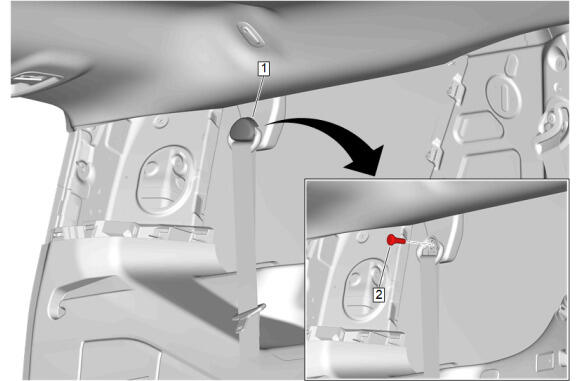

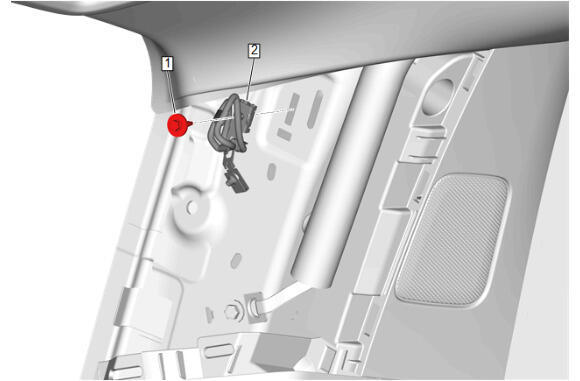

3rd Row Seat Belt Retractor Bolt- Upper (2) - Install and tighten - Fastener Specifications
3rd Row Seat Belt Retractor Anchor Cover (1) - Close
Courtesy of GENERAL MOTORS COMPANY

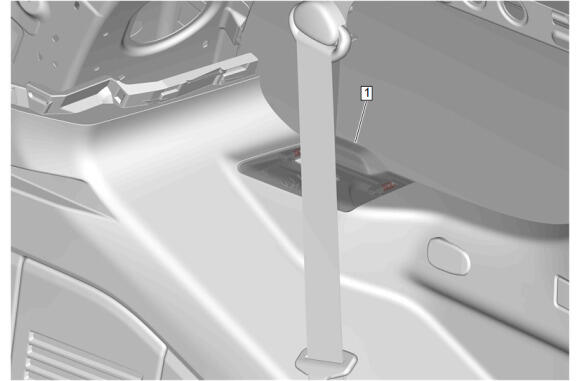

Rear Seat Belt Opening Bezel (1) - Install
Courtesy of GENERAL MOTORS COMPANY

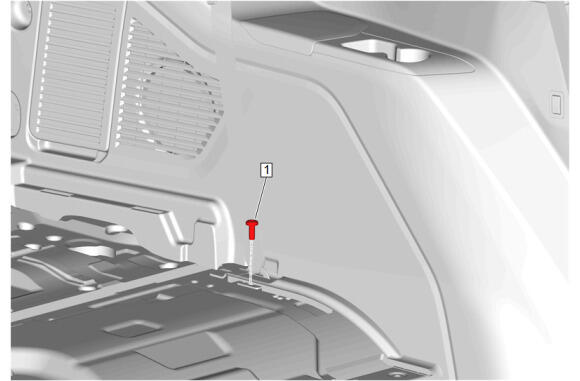

3rd Row Seat Belt Retractor Bolt- Lower (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

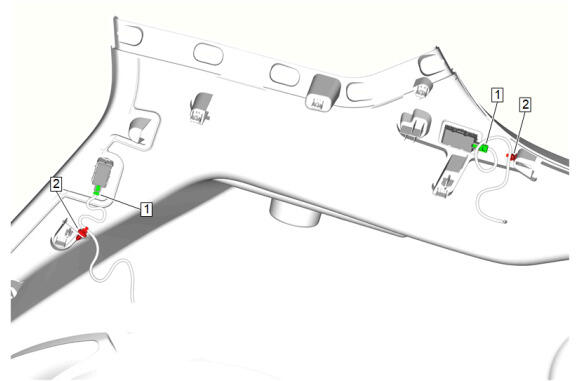

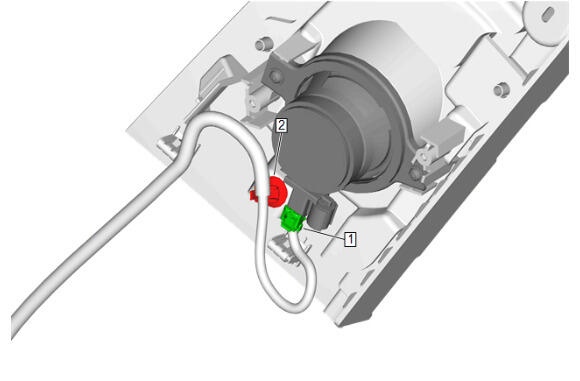

Wiring Harness Retainer (2) - Install
Electrical Connector (1) - Connect
Courtesy of GENERAL MOTORS COMPANY

Body Rear Corner Upper Garnish Molding (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Body Rear Corner Upper Garnish Molding Bolt (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Body Side Rear Window Garnish Molding Tether Retaining Clip (2) - Install
Body Side Rear Window Garnish Molding Bolt (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Position the body side rear window garnish molding tether in the same position as before the molding removal.

Body Side Rear Window Garnish Molding (1) - Install
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Feed the rear seat belt opening bezel and rear seat belt through the body lock upper trim panel.

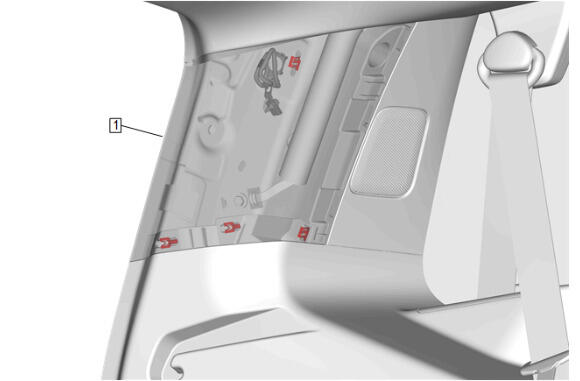

Body Lock Pillar Upper Trim Panel (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Quarter Window Trim Finish Panel Bolt (2) - Install and tighten - Fastener Specifications
Quarter Window Trim Finish Panel Bolt Cap (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Rear Seat Belt Opening Bezel (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Rear Seat Belt Retractor Anchor Plate Bolt (2) - Install and tighten - Fastener Specifications
Rear Seat Belt Retractor Sleeve (1) - Reposition
Courtesy of GENERAL MOTORS COMPANY

Rear End Trim Finish Panel (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Liftgate Lock Striker Cover (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Liftgate Weatherstrip (1) - Reposition
Courtesy of GENERAL MOTORS COMPANY

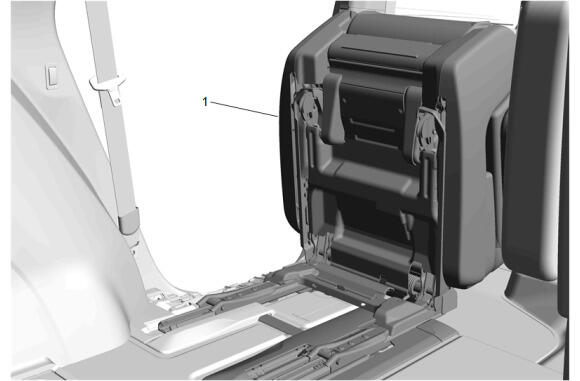

Return the rear seat (1) to the original position.
Courtesy of GENERAL MOTORS COMPANY

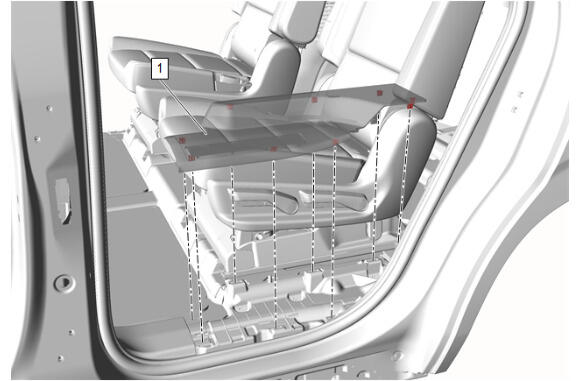

Rear Side Door Sill Garnish Molding (1) - Install
Enable the SIR System. SIR Disabling and Enabling
Courtesy of GENERAL MOTORS COMPANY

3rd Row Seat (2) - Install - 3rd Row Seat Removal and Installation
Perform the necessary programming and setup procedure: Control Module References
