Installation Procedure
- Cruise Control Switch (1) - Install
- Cruise Control Release Switch Bracket (1) - Install
- Steering Wheel Bolt (1) @Cruise Control Switch - Install and tighten [3x] - Fastener Specifications CAUTION:
Refer to Fastener Caution .

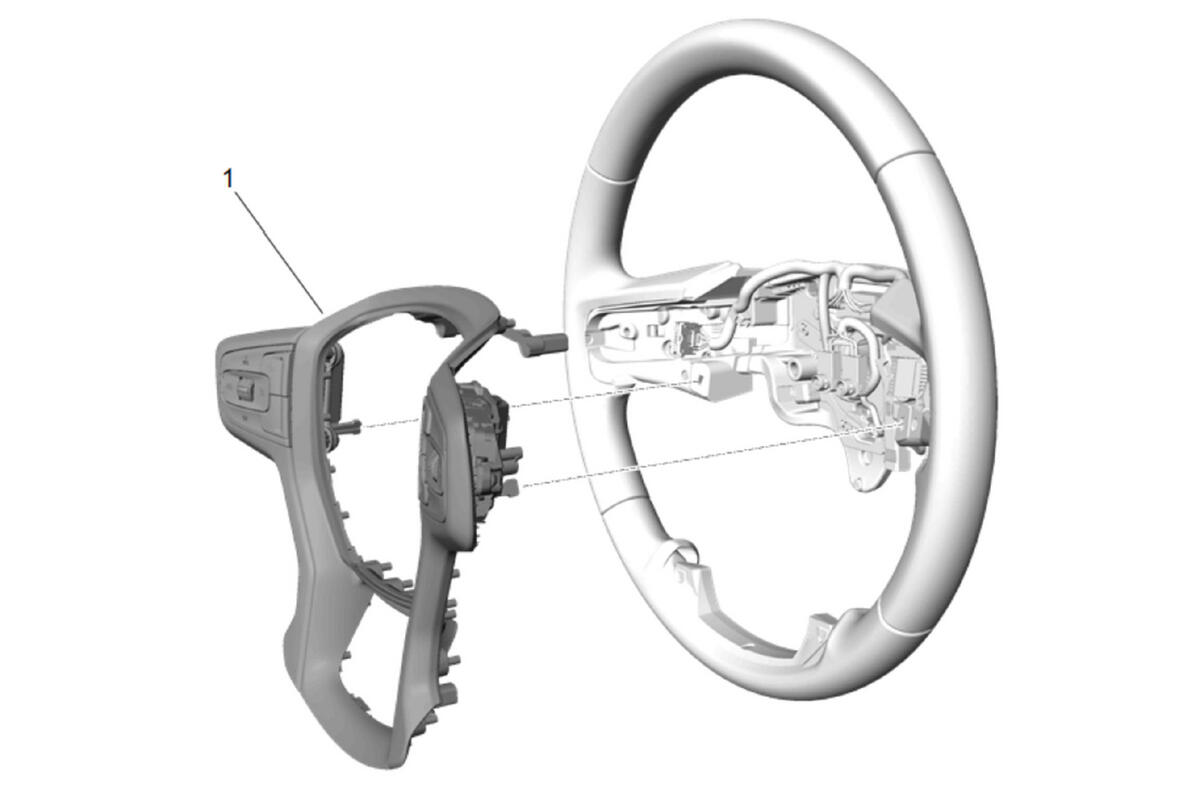

- Steering Wheel Spoke Cover (1) - Install
- Connect the electrical connectors.
- Steering Wheel Spoke Cover Bolt (1) - Install and tighten [2x] - Fastener Specifications

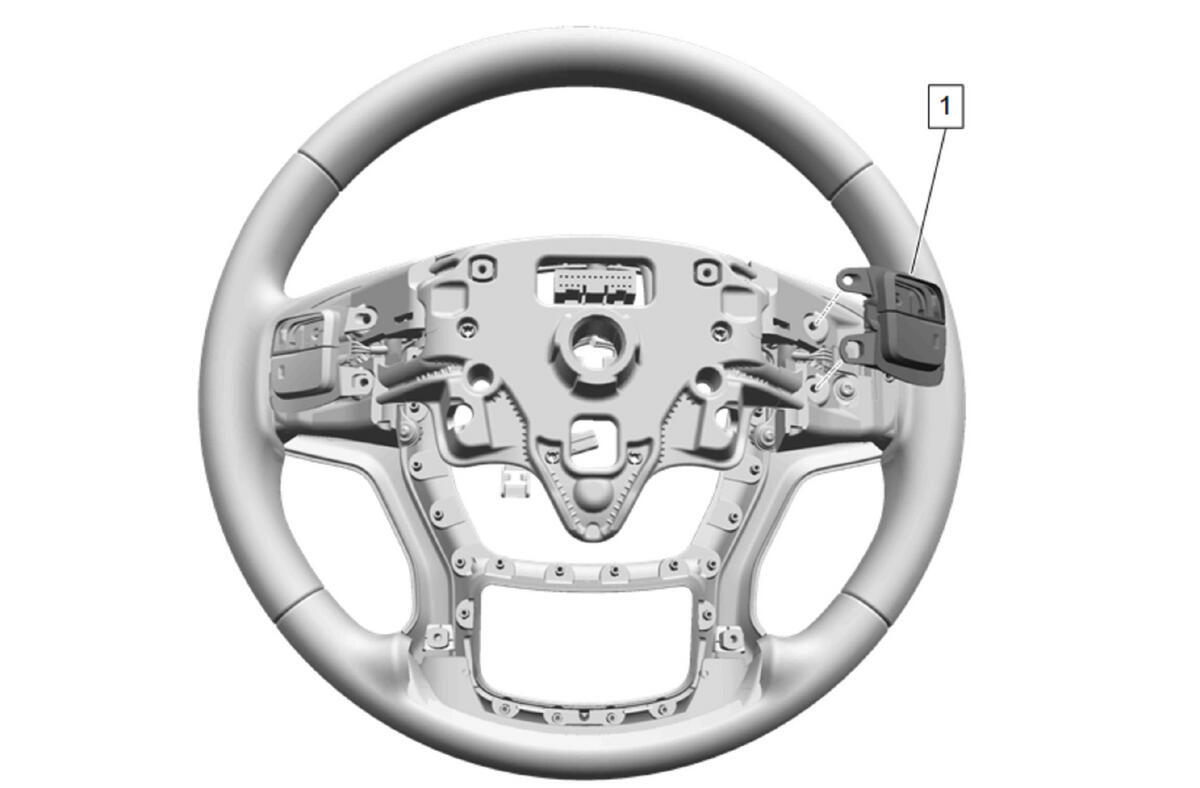

- Radio Favorites Switch (1) - Install
- Connect the electrical connector.

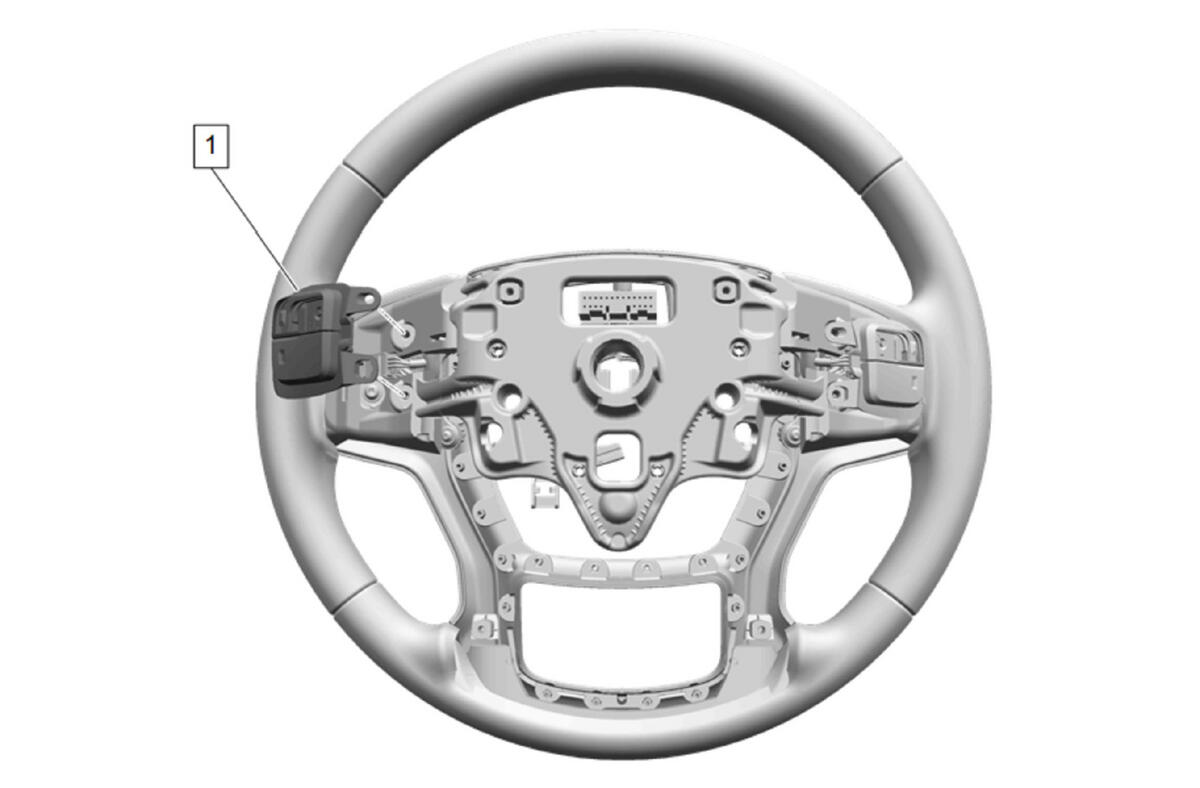

- Radio Volume Switch (1) - Install
- Connect the electrical connector.
- Steering Wheel Shroud (1) - Install
- Connect the heated steering wheel module electrical connectors, if equipped.
- Install and tighten the 4 steering wheel spoke cover bolts (1). Fastener Specifications
- Install and tighten the 4 steering wheel bolts (2). Fastener Specifications
- Steering Wheel (2) - Install
- If a NEW threaded component is being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded component is reused, prepare the threaded component using the following steps:
- Remove any loose cured adhesive from the external threads of the component using a lint free cloth.
- Thread the cleaned component into the internal mating threads and remove to loosen trapped cured adhesive.
- Apply thread locking adhesive to the external threads of the component. Adhesives, Fluids, Lubricants, and Sealers
- Ensure there are no gaps in the thread locking adhesive once applied to the component.
- Steering Wheel Bolt (1) - Install and tighten - Fastener Specifications
- Connect the electrical connectors.
- Install any connector position assurance (CPA) devices or secondary locks.
- Steering Wheel Airbag (2) - Install
- Steering Wheel Airbag Bolt (1) - Install and tighten [2x] - Fastener Specifications
- Install the 2 steering wheel airbag access hole covers (1).NOTE:
Left side shown, right side similar.
- Enable the SIR System. SIR Disabling and Enabling
