Installation Procedure
Connect the electrical connector.

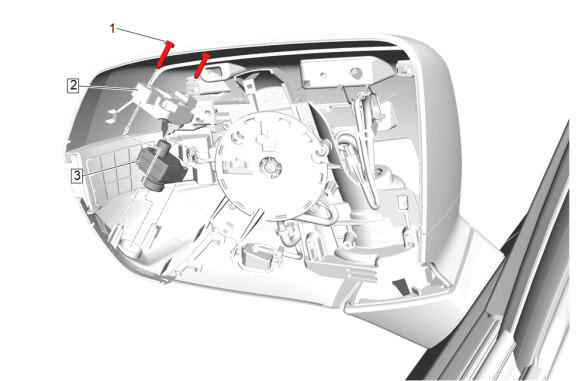

- Side View Driver Information Camera (3) - Install
- Outside Rearview Mirror Retainer (2) - Install
- Outside Rearview Mirror Opening Applique Bolt (1) - Install and tighten [2x] - Fastener Specifications
- Secure the outside rearview mirror housing cover.

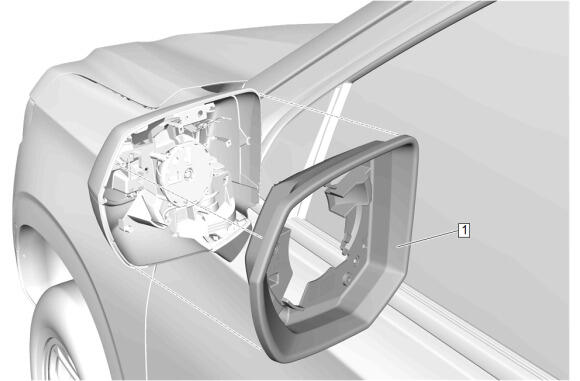

Outside Rearview Mirror Housing Bezel (1) - Install

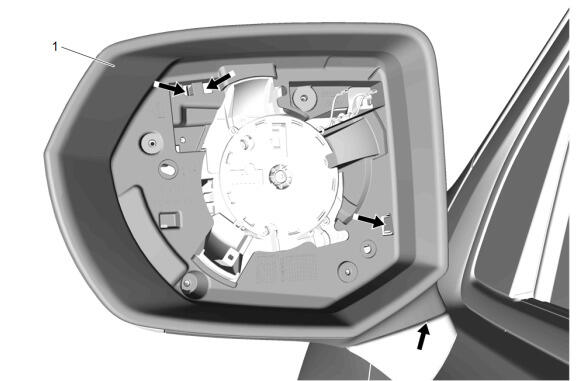

Ensure the retaining tabs on the outside rearview mirror housing bezel (1) have fully secured.

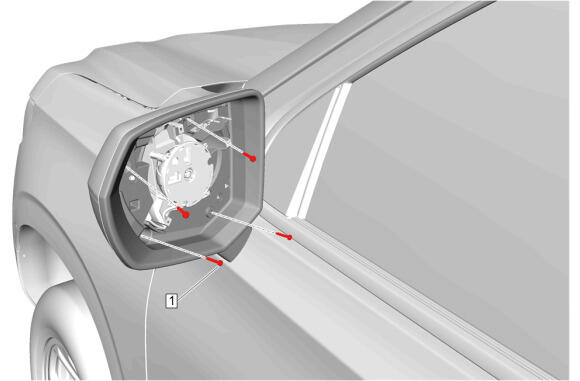

Outside Rearview Mirror Opening Applique Bolt (1) - Install and tighten [4x] - Fastener Specifications
Connect all electrical connectors.

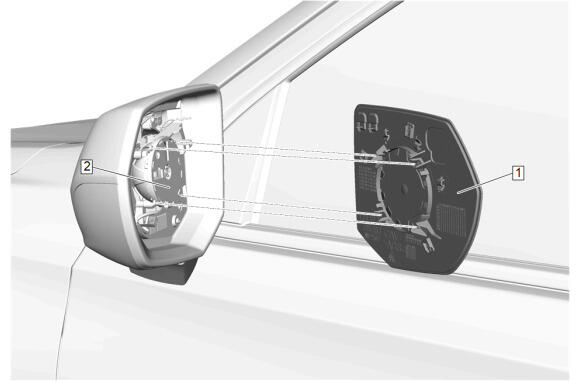

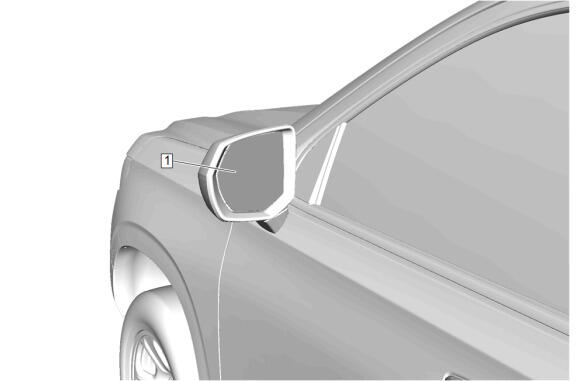

- Carefully align the outside rearview mirror glass (1) retainers with the outside rearview mirror actuator (2).
Place one hand on the back of the mirror housing and carefully apply pressure to outside rearview mirror glass (1) until outside rearview mirror glass is fully secured.
- Remove the masking tape from the outside rearview mirror glass (1).
- Inspect the outside rearview mirror for proper operation.
- Perform the camera calibration procedure. Video Processing Control Module Calibration
CAUTION:
Refer to Fastener Caution .
