Fastener Specifications
NOTE:
Callouts in the following chart represent components shown in graphic above.

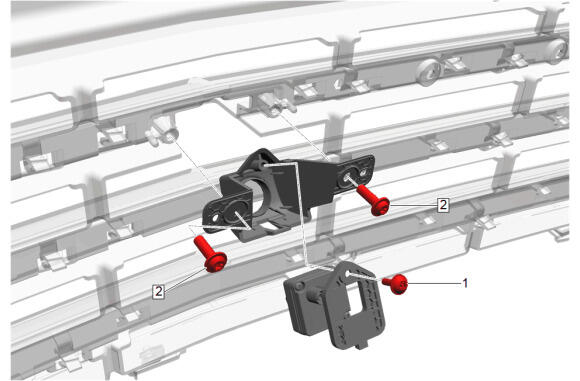

Front Camera and Bracket
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front View Camera Bolt | - | - | 4 N.m (35 lb in) | Front View Driver Information Camera Replacement |
| 2 | Front View Camera Bracket Bolt [2x] | - | - | 4 N.m (35 lb in) | Front View Driver Information Camera Bracket Replacement |
NOTE:
Callouts in the following chart represent components shown in graphic above.

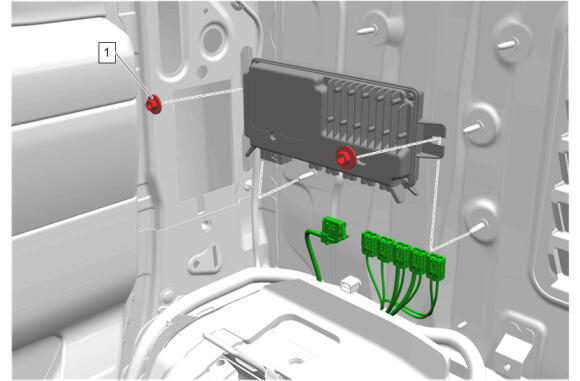

Modules
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Video Processing Module Nut [2x] | - | - | 9 N.m (80 lb in) | Video Processing Module Replacement (Short Wheel Base) , or Video Processing Module Replacement (Long Wheel Base) |
NOTE:
Callouts in the following chart represent components shown in graphic above.

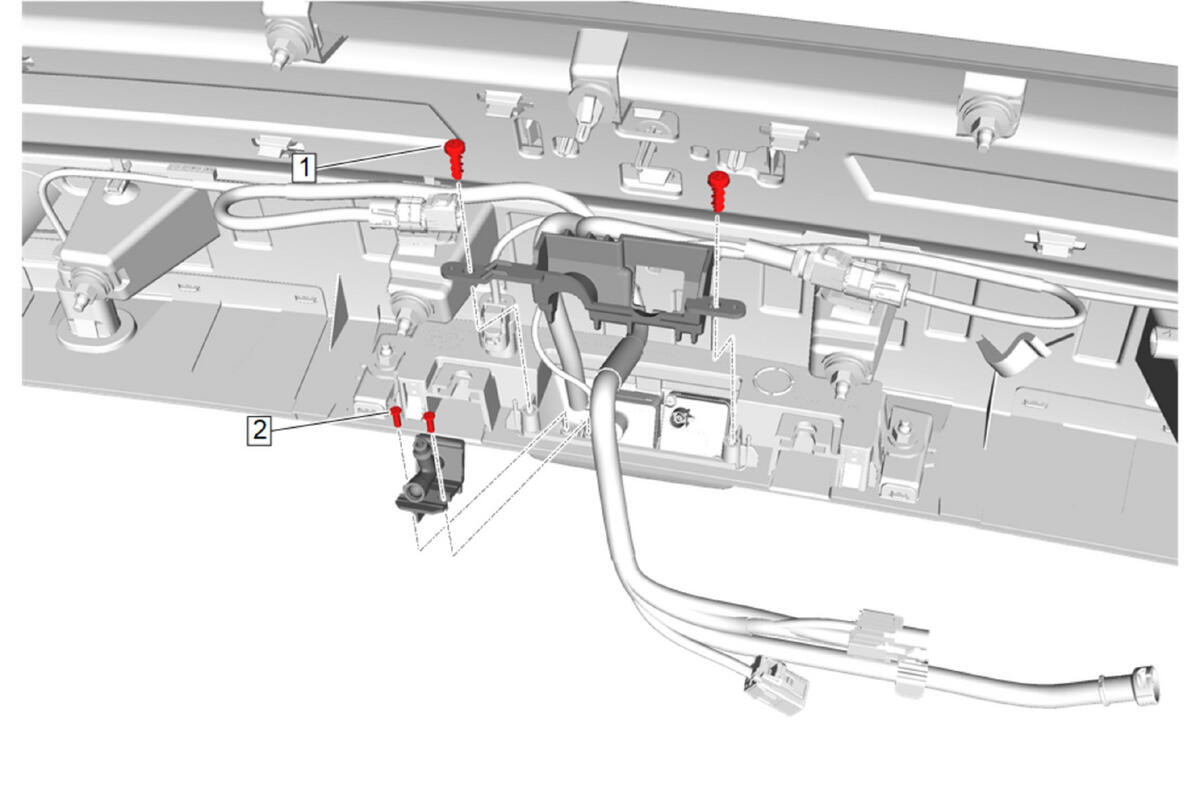

Rear Cameras and Camera Washer Nozzle
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Rearview Driver Information Camera Bracket Bolt [2x] | - | - | 0.52 N.m (5 lb in) | Rearview Driver Information Camera Replacement (with UV2) , or Rearview Driver Information Camera Replacement (without UV2) |
| Video Display Inside Rearview Mirror Camera Replacement | |||||
| 2 | Video Display Inside Rearview Mirror Camera Nozzle Bolt [2x] | - | - | 0.2 N.m (2 lb in) | Video Display Inside Rearview Mirror Camera Nozzle Replacement |
NOTE:
Callouts in the following chart represent components shown in graphic above.

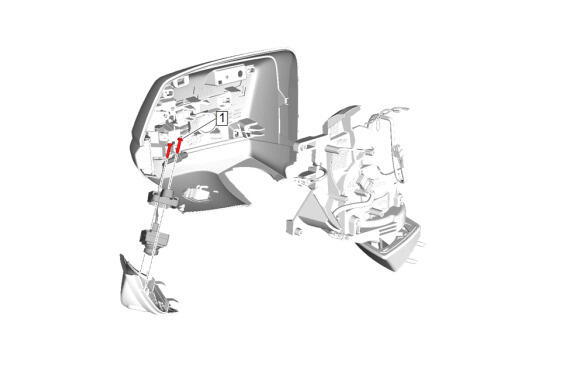

Side View Camera
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Outside Rearview Mirror Opening Applique Bolt [2x] | - | - | 1.1 N.m (10 lb in) | Side View Driver Information Camera Replacement |
