Installation Procedure

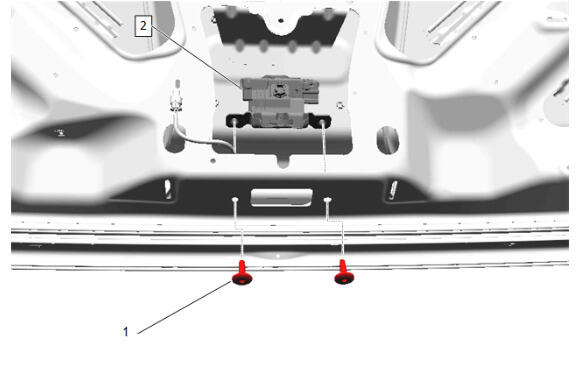

  1. GM5584369Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  2. Liftgate Latch (2) - Install
    3. CAUTION:

    Refer to Fastener Caution .

  3. Liftgate Latch Bolt (1) - Install and tighten [2x] - Fastener Specifications
  4. GM5577873Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  5. Liftgate Lower Trim Finish Panel (3) - Install
  6. Liftgate Lower Trim Finish Panel Bolt (2) - Install and tighten - Fastener Specifications
  7. Rear Compartment Lid Inner Panel Trim Hole Plug (1) - Install
  8. GM5577872Courtesy of GENERAL MOTORS COMPANY

    Liftgate Upper Side Trim Finish Panel (1) - Install [2x]

  9. GM5577870Courtesy of GENERAL MOTORS COMPANY

    Liftgate Upper Center Trim Finish Panel (1) - Install

  10. GM5584398Courtesy of GENERAL MOTORS COMPANY

    Liftgate Lower Trim Finish Panel Access Hole Cover (2) - Install

  11. Liftgate Trim Finish Panel Locator (1) - Install [2x]
  12. Close the liftgate window.
