Installation Procedure
- Position the wheelhouse liner out of the way to gain access to the front wheel speed sensor electrical connector.
- Front Wheel Speed Sensor Wiring Harness (2) - Install

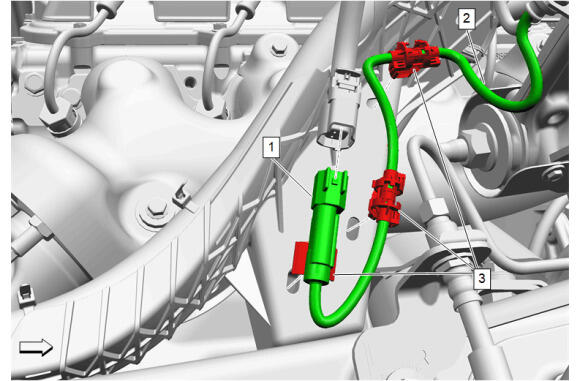

- Connect the electrical connector. (1)
- Front Wheel Speed Sensor Retainer (3) - Install [3x]
- Front Wheel Speed Sensor Bracket Bolt (1) - Install and tighten - Fastener Specifications CAUTION:
Refer to Fastener Caution .

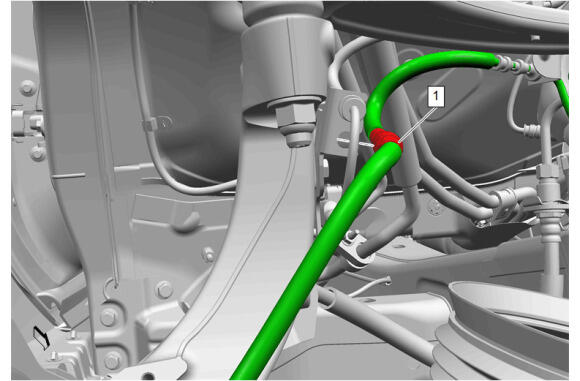

- {If equipped }Wiring Harness (1) @Front Wheel Speed Sensor Bracket - Install

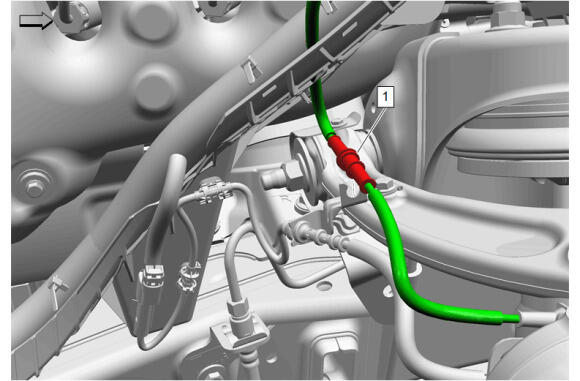

- Front Wheel Speed Sensor Wiring Harness (1) @Wiring Harness Bracket - Install
- Front Wheel Speed Sensor Bracket (3) - Install
- Front Wheel Speed Sensor Bracket Bolt (4) - Install and tighten - Fastener Specifications
- Apply a light coat of wheel speed anti-corrosion grease to the front wheel speed sensor (2) and mounting pad on the front steering knuckle. Adhesives, Fluids, Lubricants, and Sealers

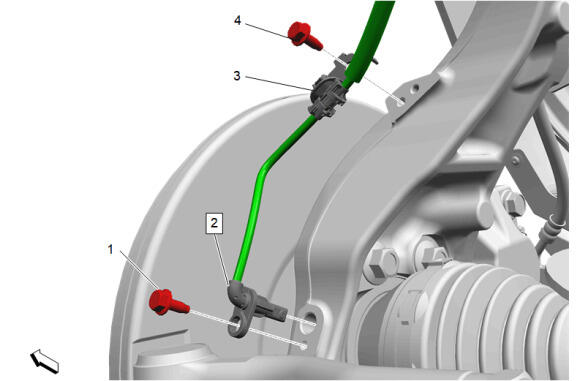

- Front Wheel Speed Sensor (2) - Install
- Front Wheel Speed Sensor Bolt (1) - Install and tighten - Fastener Specifications
- Install the front tire and wheel assembly. Tire and Wheel Removal and Installation (Steel Wheel) , or Tire and Wheel Removal and Installation (Aluminum Wheel)
- Remove the support and lower the vehicle.
- Verify the repair is complete. Diagnostic Repair Verification
