Installation Procedure

  1. GM5569856Courtesy of GENERAL MOTORS COMPANY
  2. Accessory AC and DC Power Control Module (2) - Install
    3. CAUTION:

    Refer to Fastener Caution .

  3. Accessory AC and DC Power Control Module Nut (1) - Install and tighten [3x] - Fastener Specifications
  4. Connect the electrical connectors.

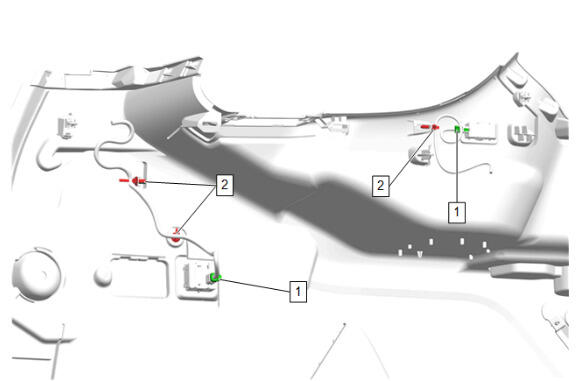

  5. GM5732910Courtesy of GENERAL MOTORS COMPANY

    Install the wiring harness retainers (2).

  6. Connect the electrical connectors (1).

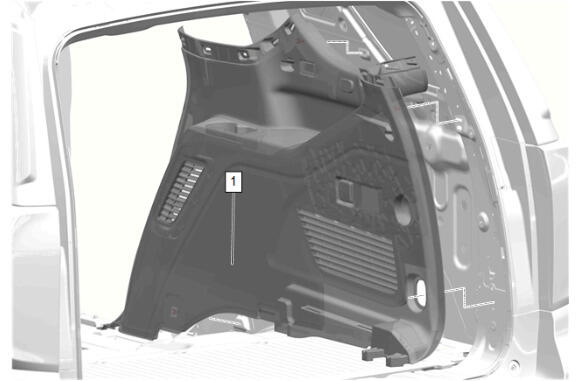

  7. GM5732908Courtesy of GENERAL MOTORS COMPANY

    Quarter Lower Rear Trim Panel (1) - Install

  8. GM5605064Courtesy of GENERAL MOTORS COMPANY

    Cargo Tie Down Loop (4) - Install

  9. Cargo Tie Down Loop Bolt (3) - Install and tighten - Fastener Specifications
  10. Cargo Tie Down Loop Bolt Cap (2) - Close
  11. Convenience Net Retainer (1) - Install and tighten - Fastener Specifications
  12. GM5591930Courtesy of GENERAL MOTORS COMPANY

    Body Rear Corner Upper Garnish Molding (1) - Install

  13. GM5591929Courtesy of GENERAL MOTORS COMPANY

    Body Rear Corner Upper Garnish Molding Bolt (1) - Install and tighten - Fastener Specifications

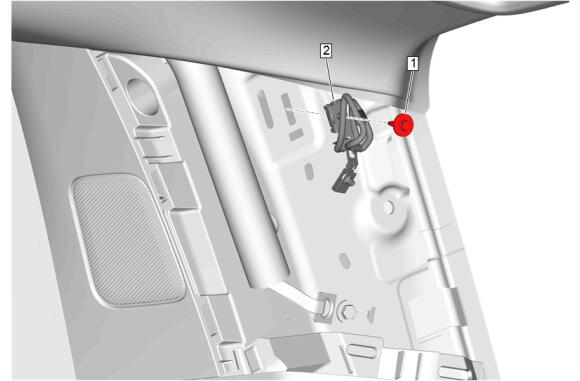

  14. GM5591928Courtesy of GENERAL MOTORS COMPANY

    Body Side Rear Window Garnish Molding Tether Retaining Clip (2) - Install

  15. Body Side Rear Window Garnish Molding Bolt (1) - Install and tighten - Fastener Specifications
  16. GM5591927Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Position the body side rear window garnish molding tether in the same position as before the molding removal.

    Body Side Rear Window Garnish Molding (1) - Install

  17. GM5591925Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Feed the rear seat belt opening bezel and rear seat belt through the body lock upper trim panel.

    Body Lock Pillar Upper Trim Panel (1) - Install

  18. GM5591923Courtesy of GENERAL MOTORS COMPANY

    Quarter Window Trim Finish Panel Bolt (2) - Install and tighten - Fastener Specifications

  19. Quarter Window Trim Finish Panel Bolt Cap (1) - Install
  20. GM5591922Courtesy of GENERAL MOTORS COMPANY

    Rear Seat Belt Opening Bezel (1) - Install

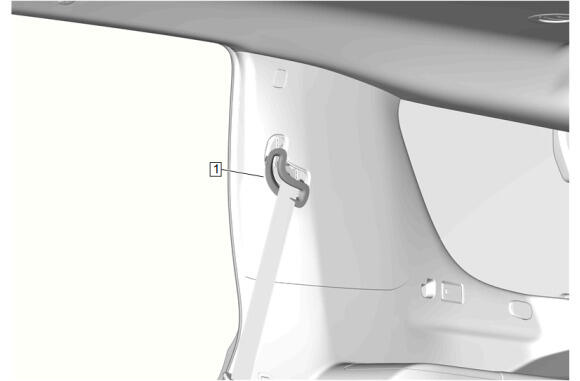

  21. GM5591921Courtesy of GENERAL MOTORS COMPANY

    Rear Seat Belt Retractor Anchor Plate Bolt (2) - Install and tighten - Fastener Specifications

  22. Rear Seat Belt Retractor Sleeve (1) - Reposition
  23. GM5577844Courtesy of GENERAL MOTORS COMPANY

    Rear End Trim Finish Panel (1) - Install

  24. GM5577843Courtesy of GENERAL MOTORS COMPANY

    Liftgate Lock Striker Cover (1) - Install

  25. GM5577842Courtesy of GENERAL MOTORS COMPANY

    Liftgate Weatherstrip (1) - Install

  26. GM5591920Courtesy of GENERAL MOTORS COMPANY

    Rear Side Door Sill Garnish Molding (1) - Install

  27. Return the rear seat to the original position.
  28. Enable the SIR System. SIR Disabling and Enabling
