Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

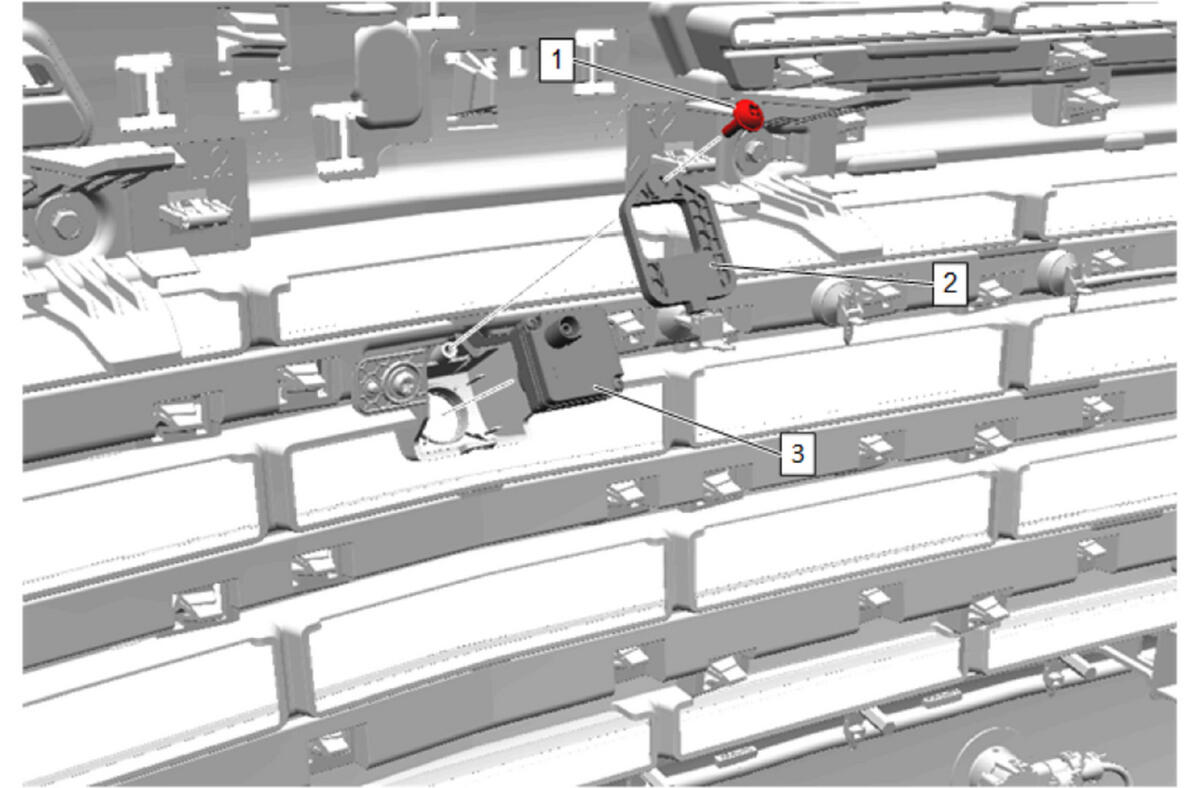

Front View Driver Information Camera (3) - Install
Camera Back Plate (2) - Install

CAUTION:

Refer to Fastener Caution .

Front View Camera Bolt (1) - Install and tighten - Fastener Specifications
Connect the electrical connector.
Courtesy of GENERAL MOTORS COMPANY

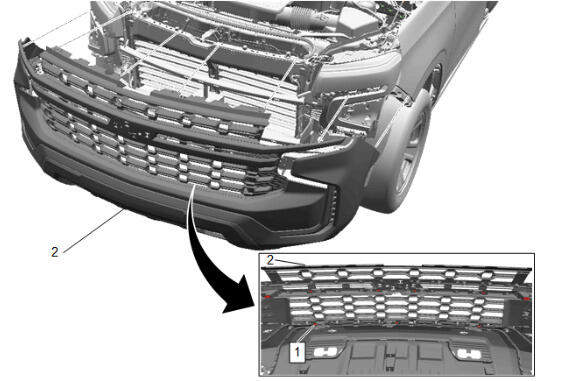

Front Bumper Fascia (1) - Install - Front Bumper Fascia Removal and Installation (with RC1) , or Front Bumper Fascia Removal and Installation (with WTX)
