Installation Procedure

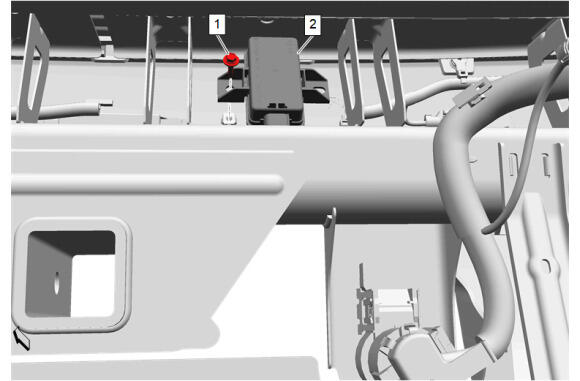

Trailer Tire Pressure Indicator Module (2) - Install
- Trailer Tire Pressure Indicator Module Bolt (1) - Install and tighten - Fastener Specifications

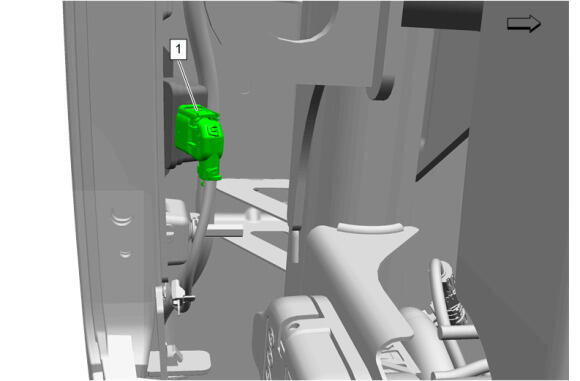

Electrical Connector (1) @ Trailer Tire Pressure Indicator Module - Connect

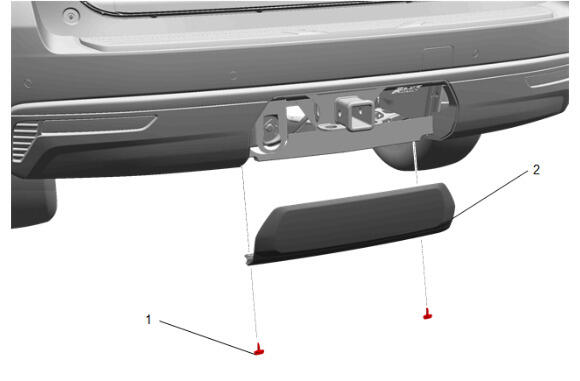

Rear Bumper Fascia Trailer Hitch Cover (2) - Install
- Rear Bumper Fascia Trailer Hitch Cover Retainer (1) - Install [2x]
- Remove the support and lower the vehicle.
- Connect the battery negative cable. Battery Negative Cable Disconnection and Connection (9C1, 5W4) , or Battery Negative Cable Disconnection and Connection (KL9)
- Perform the trailer tire pressure sensor manual learn. Trailer Tire Pressure Sensor Manual Learn
CAUTION:
Refer to Fastener Caution .
