Engine Control Module Bracket Replacement

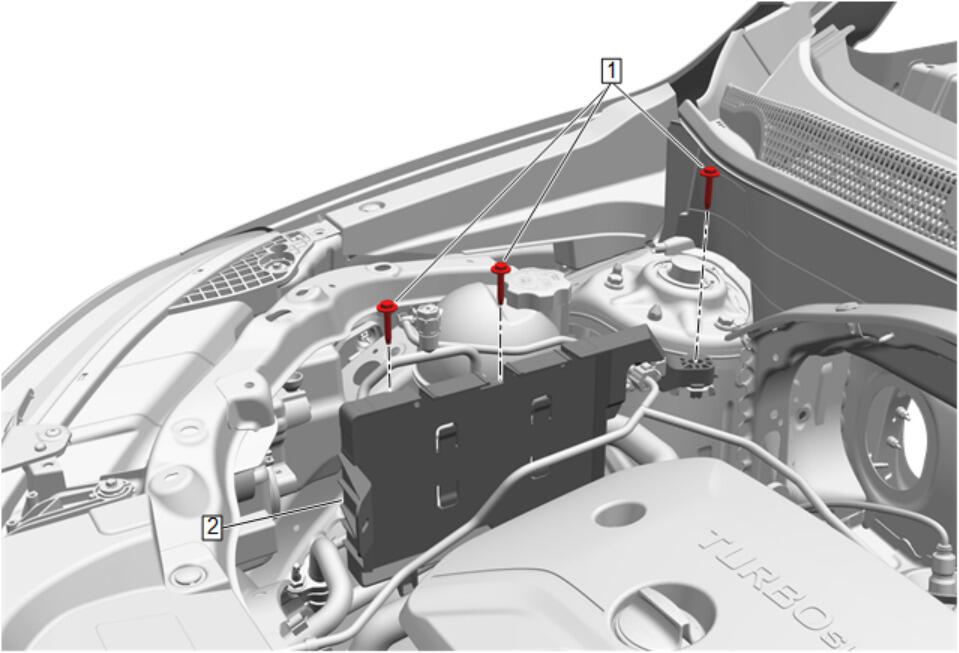

| Callout | Component Name |
|---|---|
| Preliminary Procedure Engine Control Module Replacement |
|
| 1 | Engine Control Module Bolt [3x]
CAUTION:
Tighten 9 N.m (80 lb in) |
| 2 | Engine Control Module Bracket Procedure Release the retainer. |
