Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

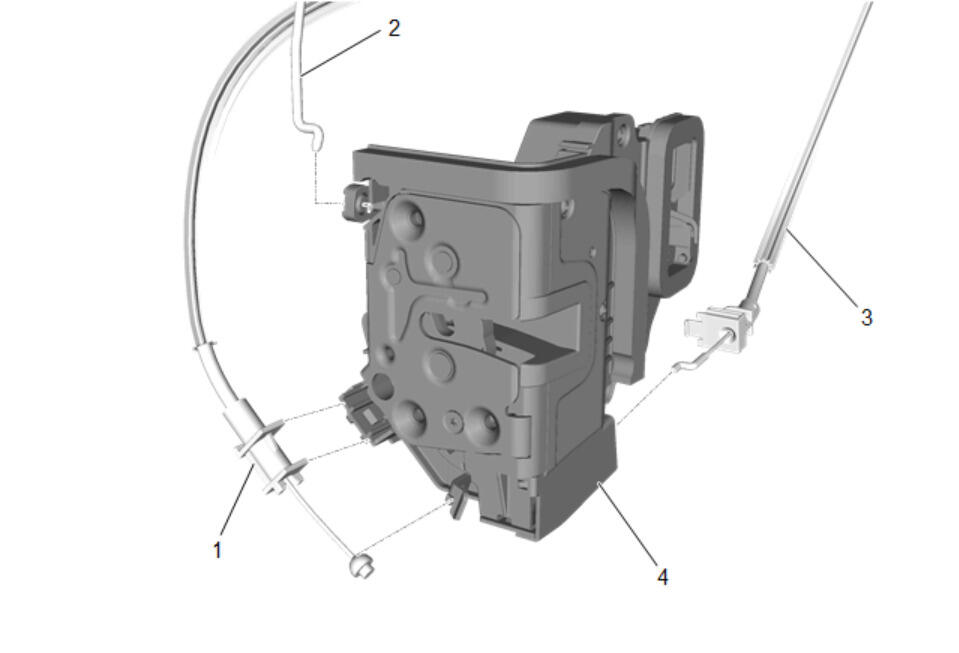

Front Side Door Outside Handle Cable (1) @ Front Side Door Latch (4) - Install - Front Side Door Outside Handle Cable Replacement
{If equipped} Front Side Door Lock Cylinder Rod (2) @ Front Side Door Latch (4) - Install - Front Side Door Lock Cylinder Rod Replacement
Front Side Door Inside Handle Cable (3) @ Front Side Door Latch (4) - Install - Front Side Door Inside Handle Cable Replacement
Courtesy of GENERAL MOTORS COMPANY

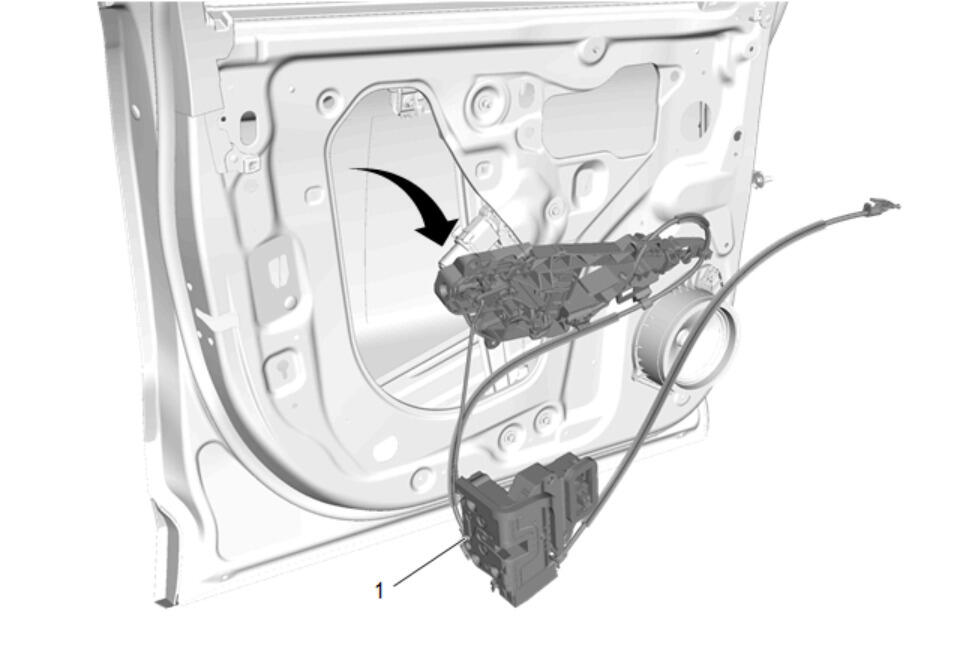

Install the front side door latch with front side door outside handle bracket (1) to the front side door.
Connect and clip the electrical connector in place.
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Fastener Caution

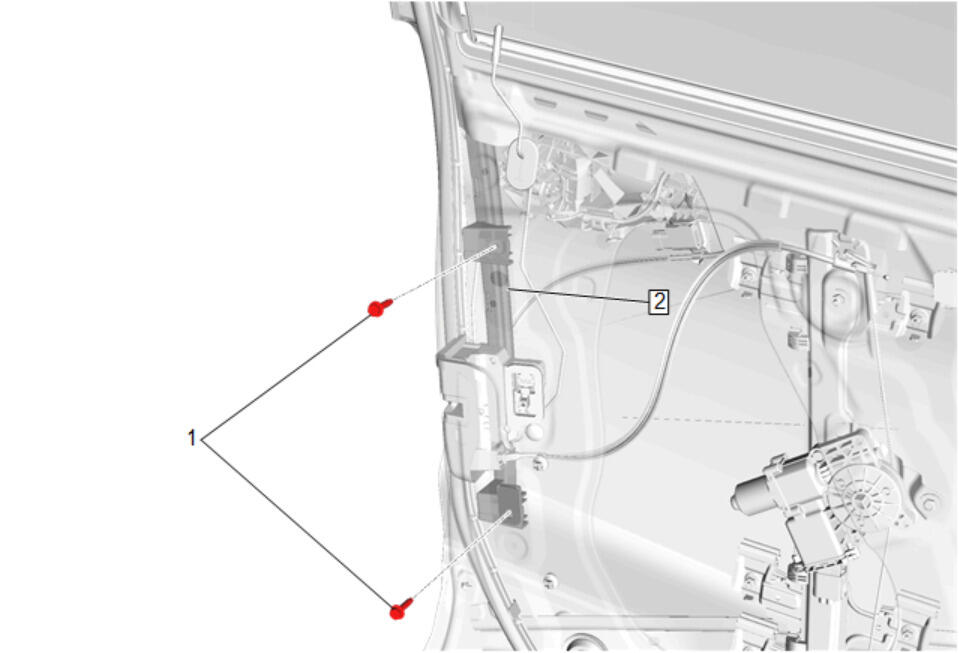

Front Side Door Latch Bolt (1) - Install and tighten [3x] 9 N.m (80 lb in)
Courtesy of GENERAL MOTORS COMPANY

Front Side Door Window Channel Retainer (2) - Install - Front Side Door Window Channel Retainer Replacement
Courtesy of GENERAL MOTORS COMPANY

Front Side Door Outside Handle Bracket Fastener (1) - Install and tighten 4.7 N.m (42 lb in)
Courtesy of GENERAL MOTORS COMPANY

Front Side Door Outside Handle (1) - Install - Front Side Door Outside Handle Replacement (AVJ) , or Front Side Door Outside Handle Replacement (Except AVJ)
Courtesy of GENERAL MOTORS COMPANY

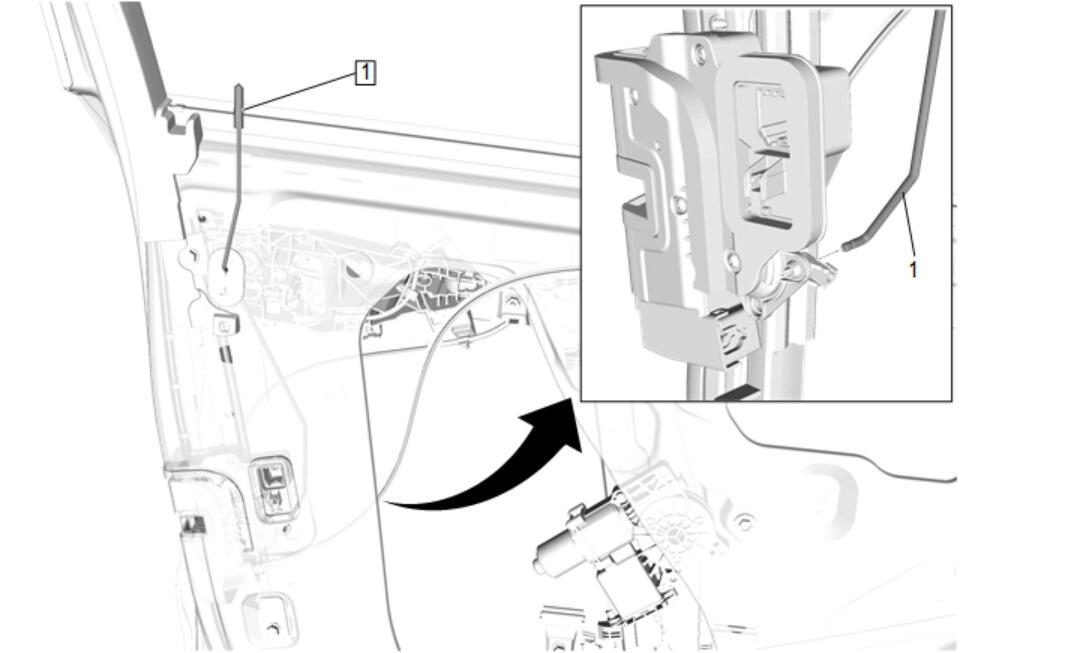

Front Side Door Locking Rod Knob (1) - Install - Front Side Door Locking Rod Knob Replacement
Courtesy of GENERAL MOTORS COMPANY

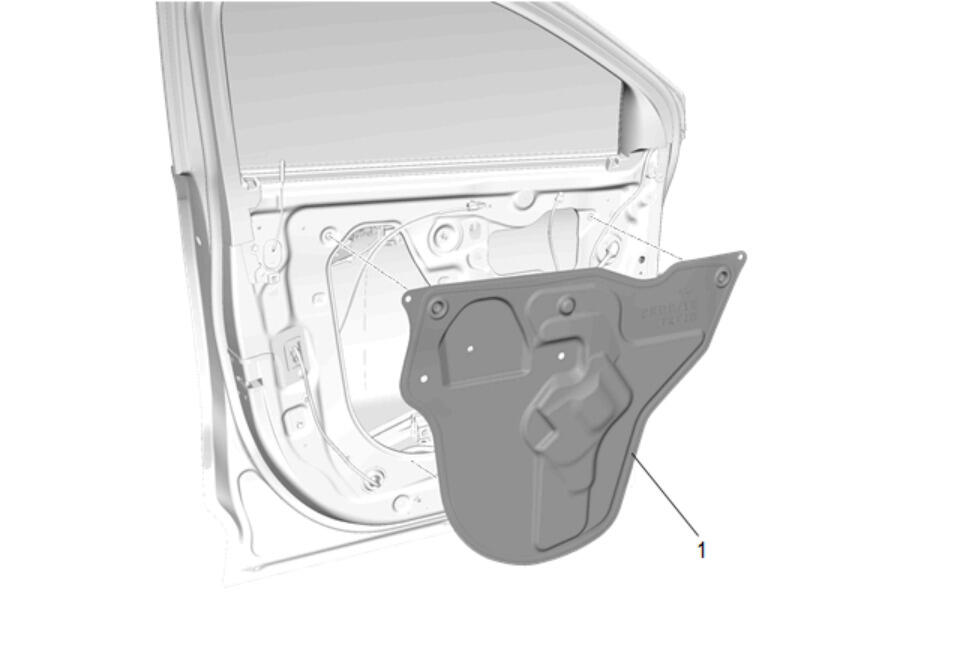

Front Side Door Water Deflector (1) - Install - Front Side Door Water Deflector Replacement
Inspect the door window for proper operation before installing the door trim panel.
