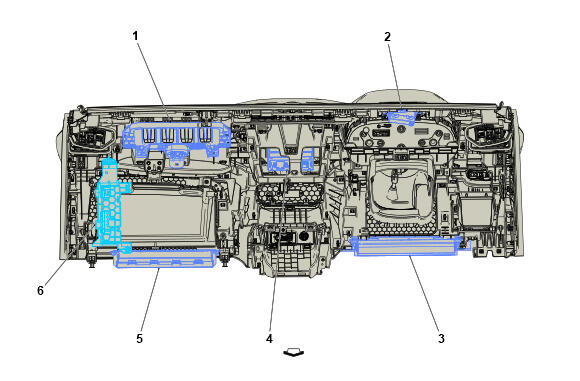

Back of the Instrument Panel Component
Back of the Instrument Panel Component
| Component Name | Callout |
|---|---|
| F101 Passenger Instrument Panel Air Bag F101 Passenger Instrument Panel Air Bag | 1 |
| P43 Collision Alert Indicators (UEU) P43 Collision Alert Indicators | 2 |
| F114D Knee Air Bag - Driver F114D Knee Air Bag - Driver | 3 |
| K73 Telematics Communication Interface Control Module K73 Telematics Communication Interface Control Module X1 , or K73 Telematics Communication Interface Control Module X2 , or K73 Telematics Communication Interface Control Module X2 | 4 |
| F114P Knee Air Bag - Passenger F114P Knee Air Bag - Passenger | 5 |
| A11 Radio A11 Radio X1 (IOR) , or A11 Radio X11 (IOS + PPW) , or A11 Radio X1A (IOS) , or A11 Radio X2 (IOR) , or A11 Radio X2A (IOS) , or A11 Radio X2B (IOS) , or A11 Radio X3 (IOR) , or A11 Radio X4 (IOR + UIR) , or A11 Radio X4 (IOS + MCR) , or A11 Radio X5 (IOS + UVB) , or A11 Radio X6 (IOR) , or A11 Radio X6 (IOS) , or A11 Radio X7 (IOR + UVB) , or A11 Radio X8 (IOR + PPW) , or A11 Radio X9 | 6 |
