Steering Wheel

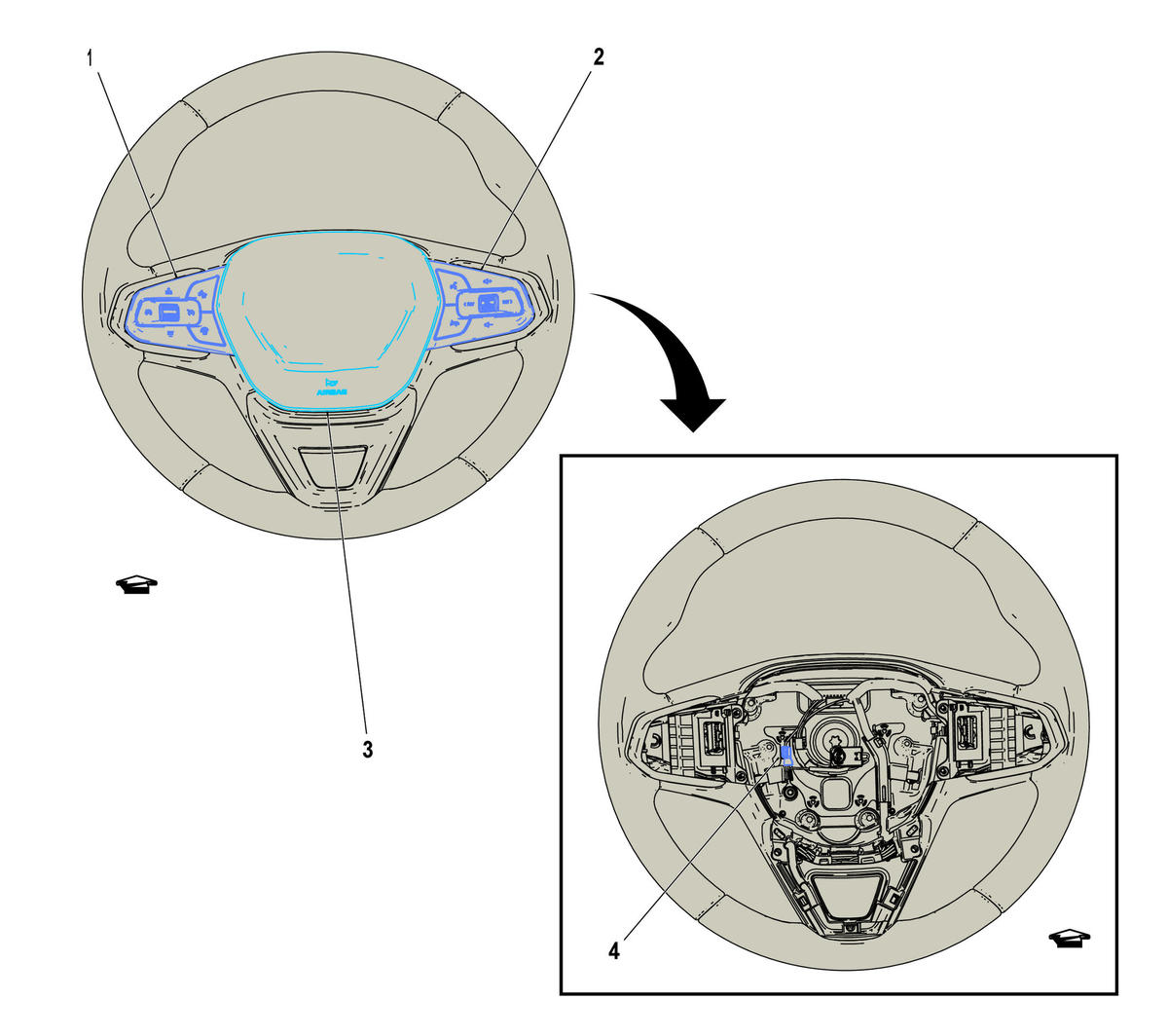

GM5430421Courtesy of GENERAL MOTORS COMPANY
Steering Wheel

Harness Name Callout
S70L Steering Wheel Controls Switch - Left S70L Steering Wheel Controls Switch - Left 1
S70R Steering Wheel Controls Switch - Right S70R Steering Wheel Controls Switch - Right 2
F107 Steering Wheel Air Bag F107 Steering Wheel Air Bag X1 , or F107 Steering Wheel Air Bag X2 3
S33 Horn Switch S33 Horn Switch 4
