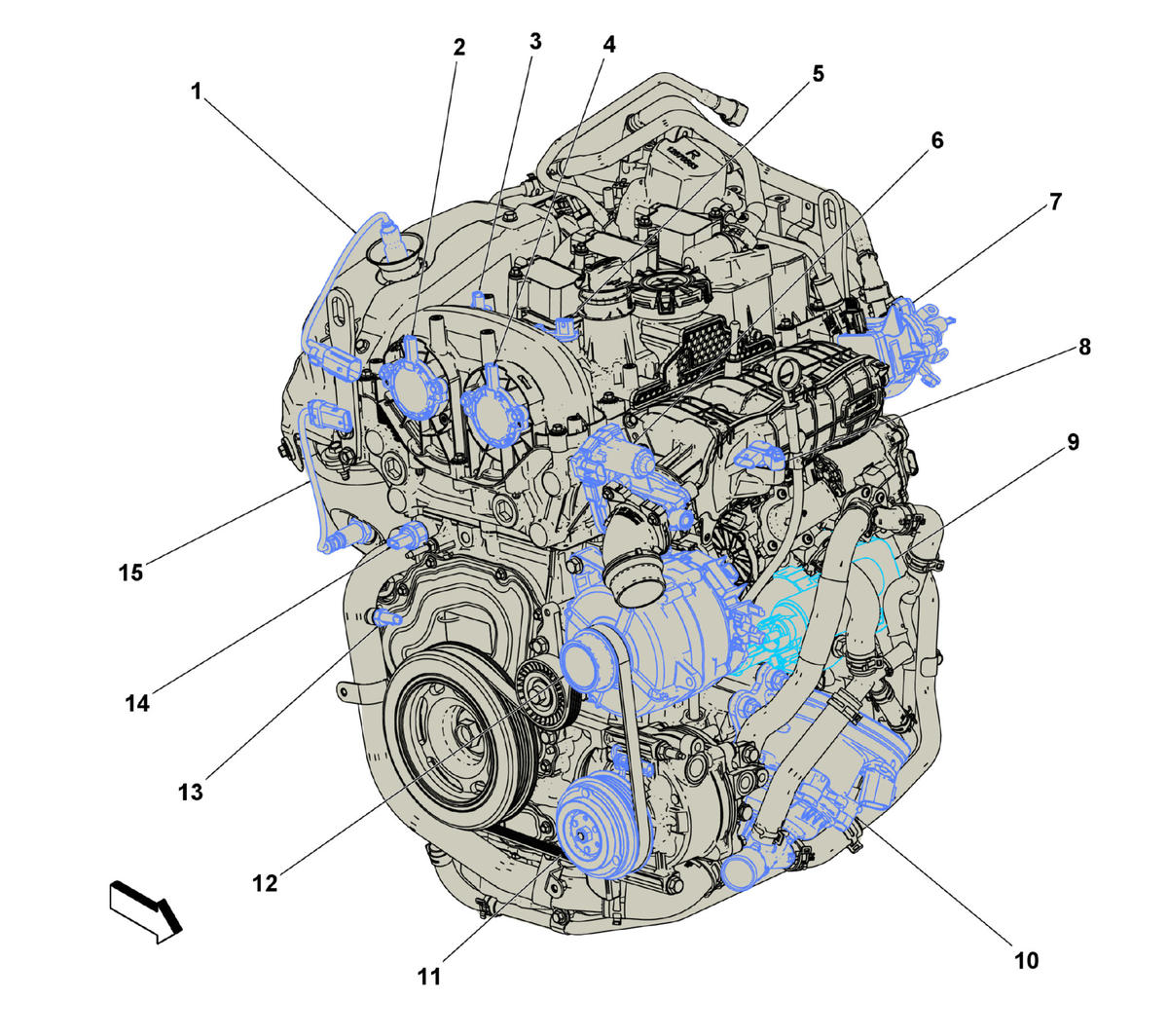

Engine - Front Components (L3T/L3Z)
Engine - Front Components (L3T/L3Z)
| Component Name | Callout |
|---|---|
| B52A Heated Oxygen Sensor 1 B52A Heated Oxygen Sensor 1 | 1 |
| Q6E Camshaft Position Actuator Solenoid Valve - Exhaust Q6E Camshaft Position Actuator Solenoid Valve - Exhaust (L3T/L3Z) | 2 |
| B23E Camshaft Position Sensor - Exhaust B23E Camshaft Position Sensor - Exhaust | 3 |
| Q6F Camshaft Position Actuator Solenoid Valve - Intake Q6F Camshaft Position Actuator Solenoid Valve - Intake (L3T/L3Z) | 4 |
| B23F Camshaft Position Sensor - Intake B23F Camshaft Position Sensor - Intake | 5 |
| Q38 Throttle Body Q38 Throttle Body | 6 |
| G58 Evaporative Emission Purge Pump G58 Evaporative Emission Purge Pump | 7 |
| B65 Intake Manifold Pressure and Air Temperature Sensor B65 Intake Manifold Pressure and Air Temperature Sensor | 8 |
| M64 Starter Motor M64 Starter Motor X1 (L3T/L3Z) , or M64 Starter Motor X2 (L3T/L3Z) | 9 |
| G59 Engine Coolant Pump G59 Engine Coolant Pump | 10 |
| Q2 A/C Compressor Clutch Q2 A/C Compressor Clutch | 11 |
| G13 Generator G13 Generator X1 , or G13 Generator X2 (L3T) | 12 |
| B34B Engine Coolant Temperature Sensor 2 B34B Engine Coolant Temperature Sensor 2 | 13 |
| B37B Engine Oil Pressure Sensor B37B Engine Oil Pressure Sensor | 14 |
| B52B Heated Oxygen Sensor 2 B52B Heated Oxygen Sensor 2 (L3T/L3Z) | 15 |
