Engine - Left Components (L3T/L3Z)

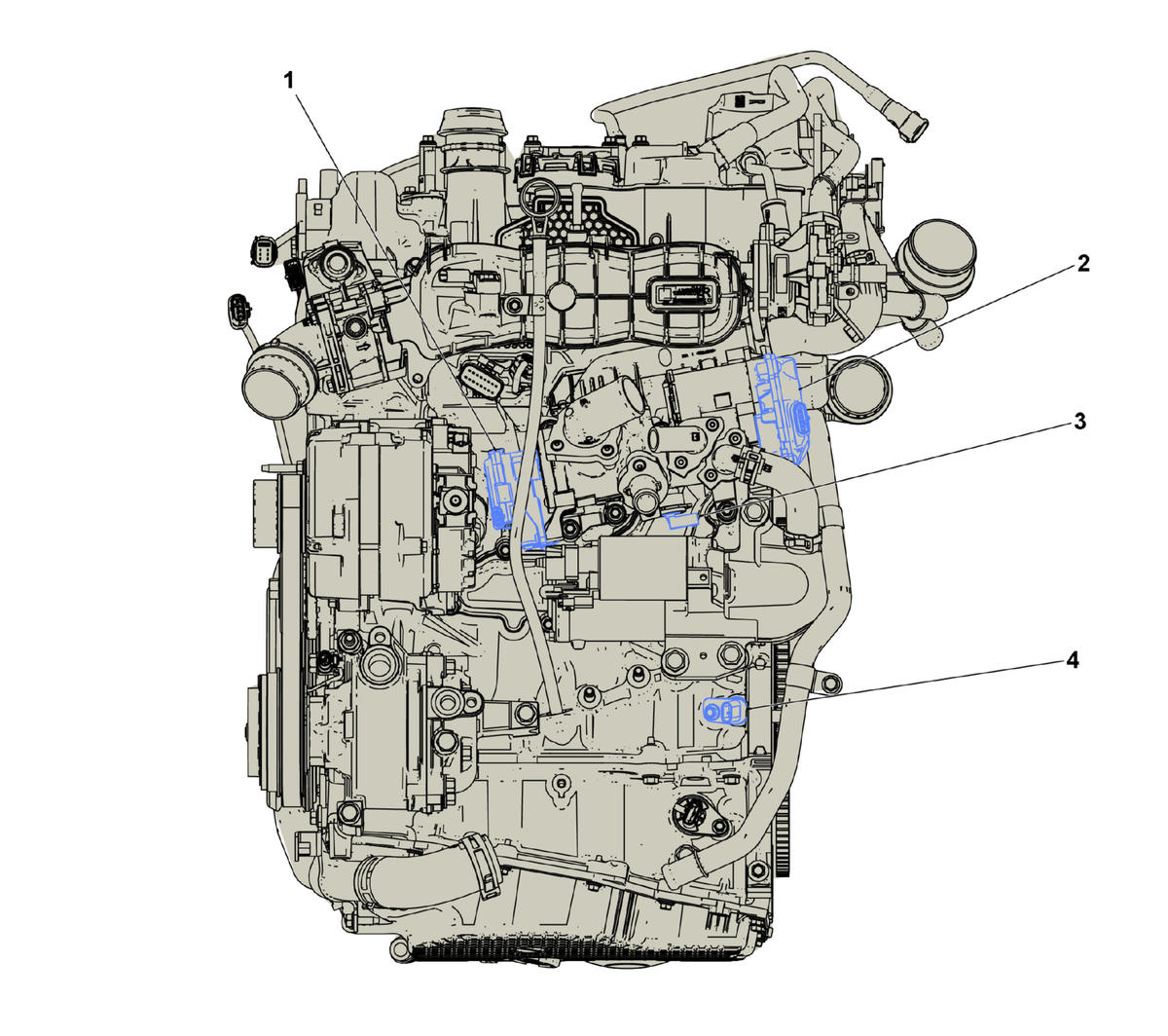

GM5437476Courtesy of GENERAL MOTORS COMPANY
Engine - Left Components (L3T/L3Z)

Component Name Callout
Q97 Engine Coolant Flow Control Valve Q97 Engine Coolant Flow Control Valve 1
Q97B Engine Coolant Flow Control Valve - Block Q97B Engine Coolant Flow Control Valve - Block 2
B34F Engine Coolant Temperature Sensor 6 B34F Engine Coolant Temperature Sensor 6 3
B26 Crankshaft Position Sensor B26 Crankshaft Position Sensor 4
