Engine - Left Components (LIH)

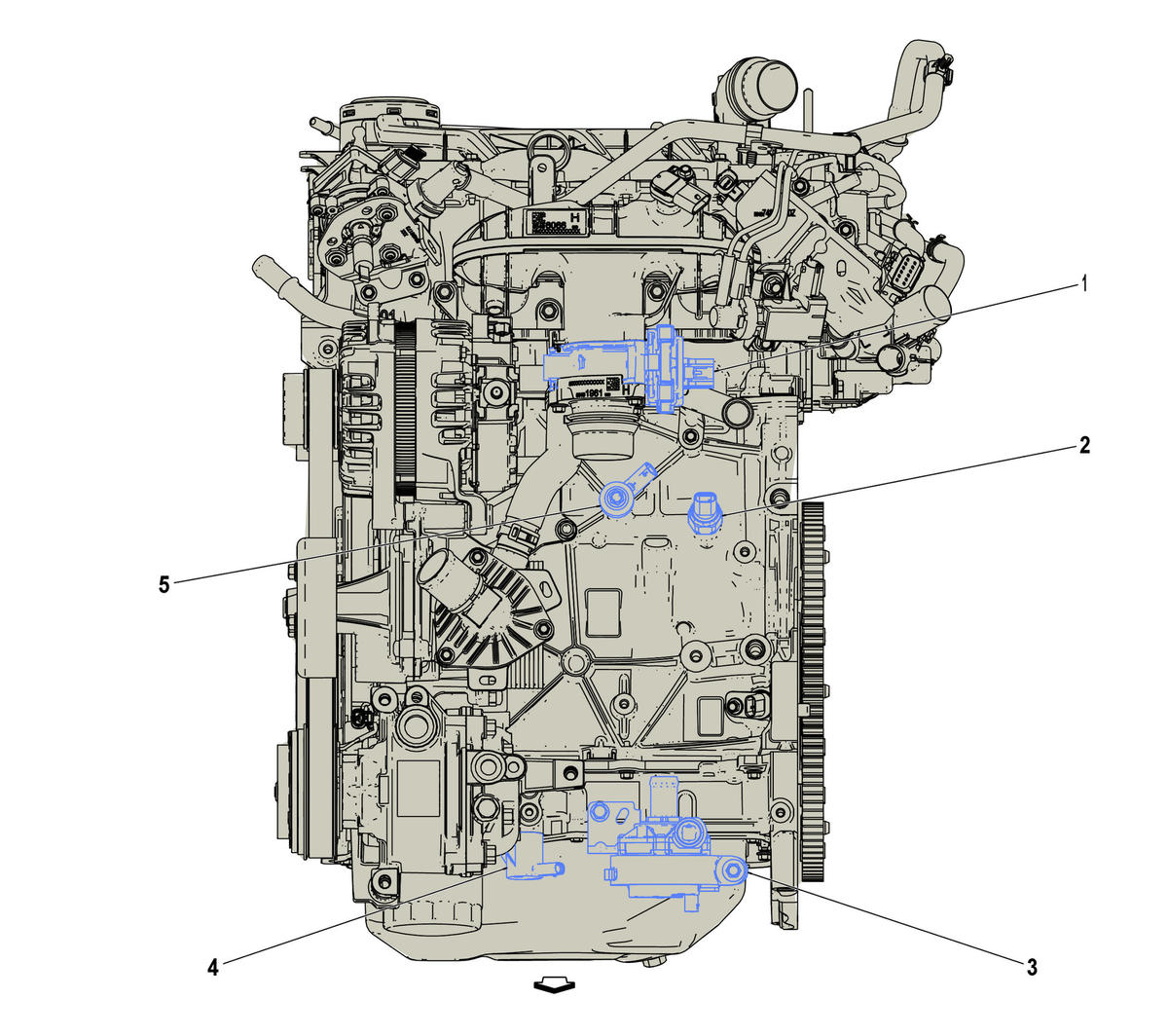

GM5416704Courtesy of GENERAL MOTORS COMPANY
Engine - Left Components (LIH)

Component Name Callout
Q38 Throttle Body Q38 Throttle Body 1
B37B Engine Oil Pressure Sensor B37B Engine Oil Pressure Sensor 2
G8 Coolant Pump - Auxiliary (LIH) G8 Coolant Pump - Auxiliary 3
Q44 Engine Oil Pressure Control Solenoid Valve Q44 Engine Oil Pressure Control Solenoid Valve (LIH) 4
B68A Knock Sensor 1 (L3T) B68A Knock Sensor 1 (L3T/L3Z) 5
