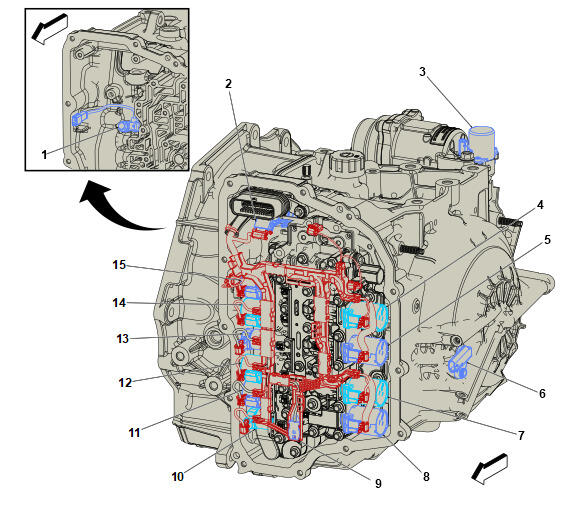

Transmission Components (M3F)
Transmission Components (M3F)
| Component Name | Callout |
|---|---|
| B14A Transmission Output Shaft Speed Sensor B14A Transmission Output Shaft Speed Sensor (MRG) | 1 |
| B303 Transmission Range Sensor B303 Transmission Range Sensor (M3F) | 2 |
| B280 Automatic Transmission Accumulator Solenoid Valve (M3F) B280 Automatic Transmission Accumulator Solenoid Valve | 3 |
| Q77B Transmission Control Solenoid Valve 2 Q77B Transmission Control Solenoid Valve 2 (M3F) | 4 |
| Q77A Transmission Control Solenoid Valve 1 Q77A Transmission Control Solenoid Valve 1 (M3F) | 5 |
| B14E Transmission Input/Intermediate Shaft Speed Sensor B14E Transmission Input/Intermediate Shaft Speed Sensor | 6 |
| Q77F Transmission Control Solenoid Valve 6 Q77F Transmission Control Solenoid Valve 6 (M3F) | 7 |
| Q77E Transmission Control Solenoid Valve 5 Q77E Transmission Control Solenoid Valve 5 (M3F) | 8 |
| B13 Transmission Fluid Temperature Sensor | 9 |
| Q77K Transmission Control Solenoid Valve 10 | 10 |
| Q77G Transmission Control Solenoid Valve 7 Q77G Transmission Control Solenoid Valve 7 (M3F) | 11 |
| Q77H Transmission Control Solenoid Valve 8 Q77H Transmission Control Solenoid Valve 8 (M3F) | 12 |
| Q77J Transmission Control Solenoid Valve 9 Q77J Transmission Control Solenoid Valve 9 (M3F) | 13 |
| Q77D Transmission Control Solenoid Valve 4 Q77D Transmission Control Solenoid Valve 4 (M3F) | 14 |
| Q77C Transmission Control Solenoid Valve 3 Q77C Transmission Control Solenoid Valve 3 (M3F) | 15 |
