Installation Procedure

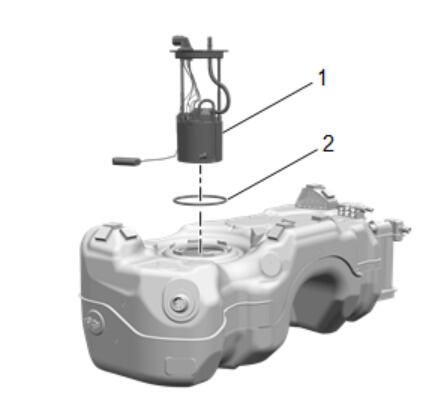

  1. GM5278856Courtesy of GENERAL MOTORS COMPANY

    Fuel Pump Seal (2) @ Fuel Tank Fuel Pump Module - Install NEW

  2. Fuel Tank Fuel Pump Module (1) @ Fuel Tank - Install
  3. GM5278855Courtesy of GENERAL MOTORS COMPANY

    Fuel Sender Hose Fitting (2) @ Fuel Tank Fuel Pump Module - Connect - Plastic Collar Quick Connect Fitting Service

  4. Fuel Level Sensor Connector (1) @ Fuel Tank Fuel Pump Module - Connect

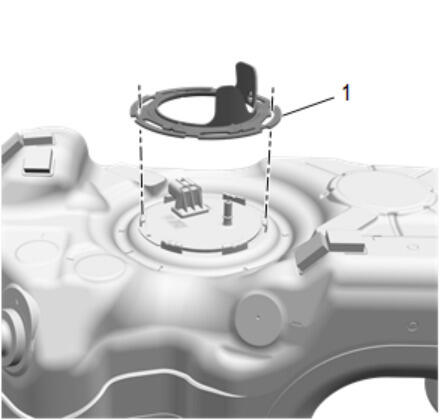

  5. GM5278854Courtesy of GENERAL MOTORS COMPANY

    Fuel Sender Retainer (1) @ Fuel Tank - Install

    Use the CH-45747  fuel sender lock ring wrench to install the fuel sender retainer.

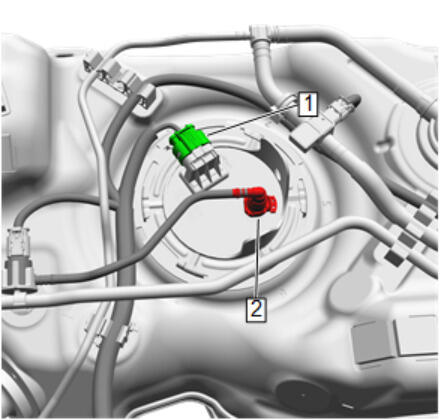

  6. GM5278853Courtesy of GENERAL MOTORS COMPANY

    Fuel Feed Pipe-Fuel Tank (2) @ Fuel Tank Fuel Pump Module - Connect - Plastic Collar Quick Connect Fitting Service

  7. Electrical Connector (1) @ Fuel Tank Fuel Pump Module - Connect
  8. Fuel Tank - Install - Fuel Tank Replacement (AWD)
