Installation Procedure

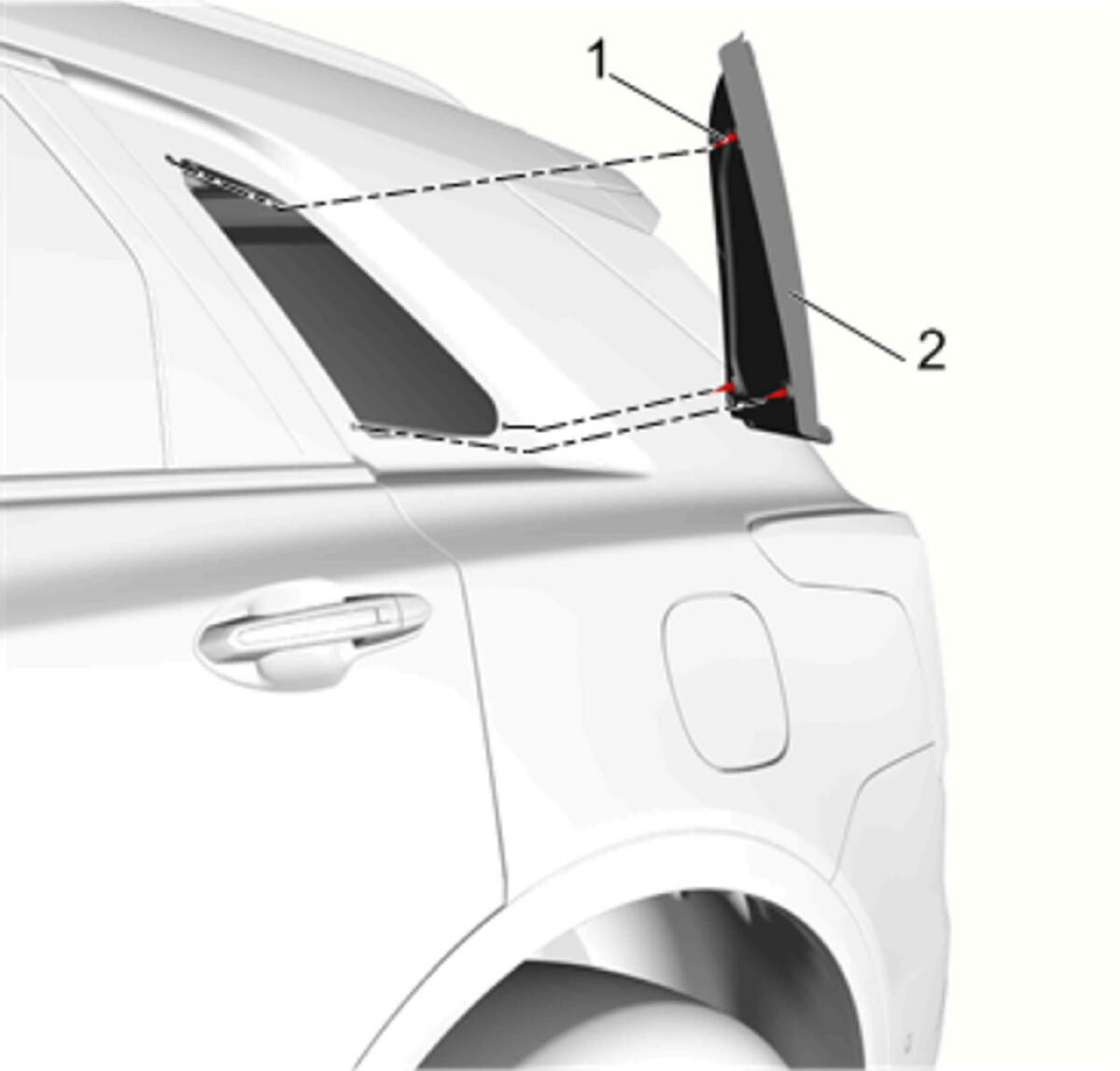

  1. GM4283942Courtesy of GENERAL MOTORS COMPANY

    Body Side Window (2) - Install - Adhesive Installation of Bodyside Stationary Windows

  2. Quarter Lower Rear Trim Panel - Install - Quarter Lower Rear Trim Panel Replacement (Right Side) , or Quarter Lower Rear Trim Panel Replacement (Left Side)
  3. Remove the double layer of masking tape around the perimeter of the painted surfaces and the interior trim.
