Fastener Specifications
WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
Power Seats

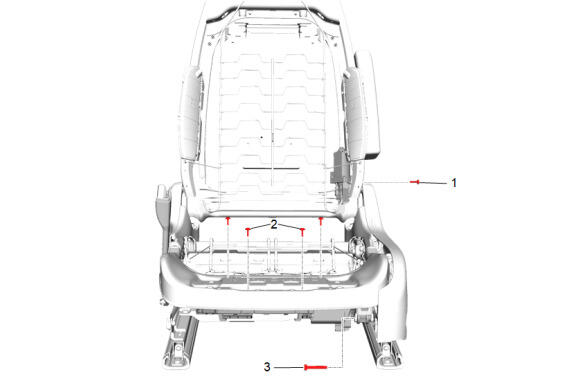

| Callout | Component Name [ Component Quantity ] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Driver or Passenger Seat Recliner Actuator Bolt | - | - | 6 (53 lb in) | Driver or Passenger Seat Recliner Actuator Replacement (with Seat Back Cushion Finish Panel) Driver or Passenger Seat Recliner Actuator Replacement (without Seat Back Cushion Finish Panel) |
| 2 | Front Seat Adjuster Memory Module Bolt [ 4x ] | - | - | 1 (9 lb in) | Front Seat Adjuster Memory Module Bracket Replacement |
| 3 | Front Seat Adjuster Actuator Bolt | - | - | 8(71 lb in) | Front Seat Tilt Adjuster Actuator Replacement |
