Removal Procedure
WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
- NOTE:
Use a small flat-bladed tool to disengage integral tabs on caro tie down loop bolt cap
Cargo Tie Down Loop Bolt Cap (1) - Remove [ 2x ]
- Cargo Tie Down Loop Bolt (2) - Remove [ 2x ]
- Cargo Tie Down Loop (3) - Remove [ 2x ]
Rear Compartment Floor Panel Trim (1) - Remove
Use a small flat-bladed tool to disengage integral tabs on rear end trim finish panel opening cover (1).
- Rear End Trim Finish Panel Opening Cover (1) - Remove
With a flat bladed plastic trim tool, disengage the integral clips.
- Rear End Trim Finish Panel (1) - Remove
- NOTE:
Carefully manipulate the deck lid hinge opening of the rear compartment side trim past the hinge cover.
Rear Compartment Side Trim Insulator Retainer (1) - Remove [ 4x ]
- Rear Compartment Side Trim-Right Side (2) - Reposition

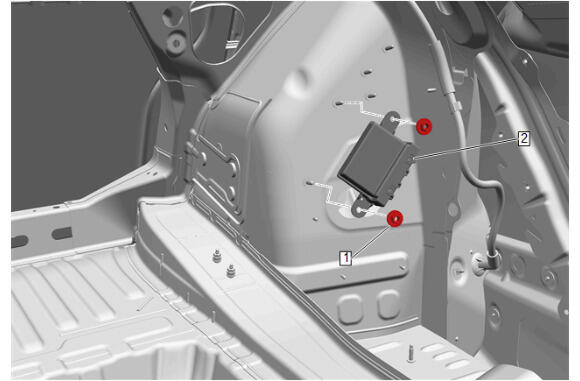

Parking Assist Control Module Nut (1) - Remove [ 2x ]
- Parking Assist Control Module (2) - Remove
- Disconnect all electrical connectors.
