Fastener Specifications
WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

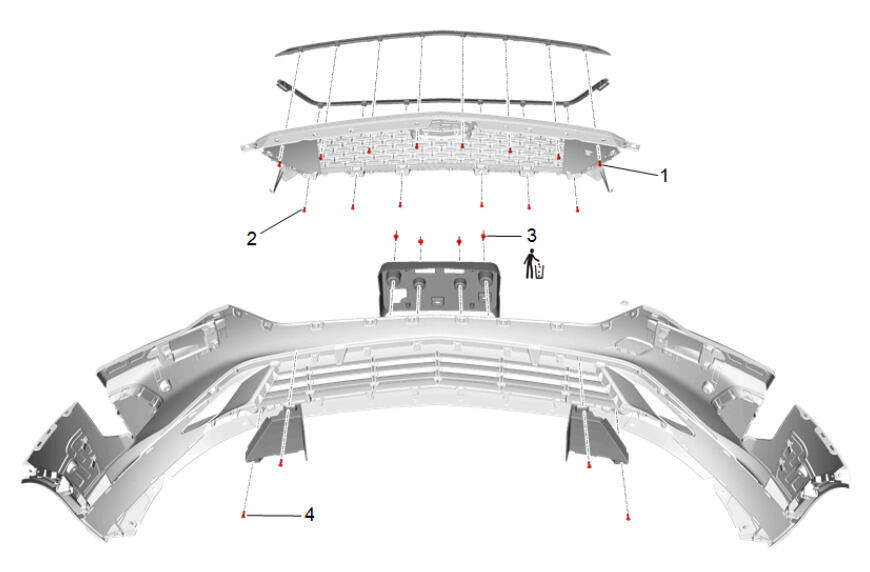

Front End Trim
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Grille Bolt @ Front Grille Insert [8x] | - | - | 2.5 (22 lb in) | Front Grille Insert Replacement |
| 2 | Front Grille Bolt @ Front Grille Opening Bezel [6x] | - | - | 2.5 (22 lb in) | Front Grille Opening Bezel Replacement (with Shutter) Front Grille Opening Bezel Replacement (with Frame) |
| 3 | Front License Plate Bracket Rivet [4x] | Yes | - | - | Front License Plate Bracket Replacement |
| 4 | Front Lower Grille Bolt [2x] | - | - | 2.5 (22 lb in) | Front Grille Opening Cover Replacement |

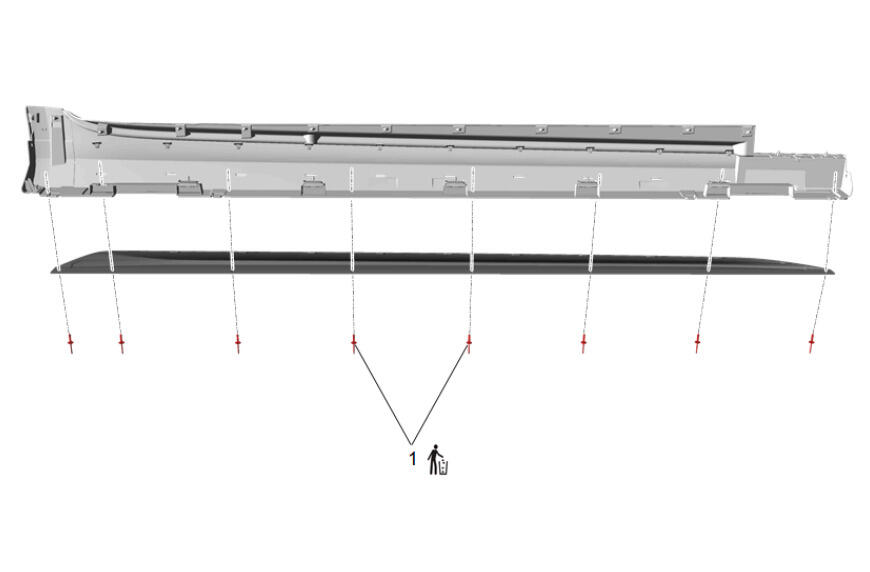

Rocker Panel Molding Insert
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Rocker Panel Molding Rivet [8x] | Yes | - | - | Rocker Panel Molding Insert Replacement |
