Fastener Specifications

WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

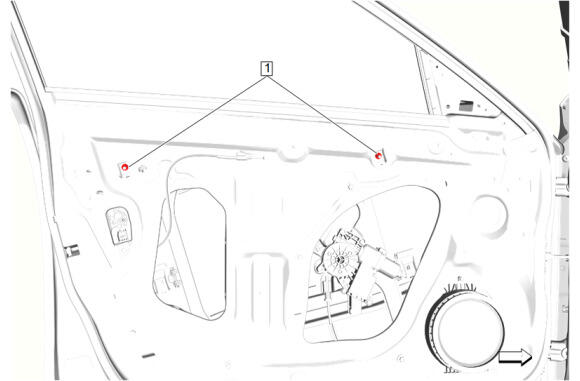

GM5509242Courtesy of GENERAL MOTORS COMPANY
Front Side Door Window

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Window Regulator Sash Clamp Nut [ 2x ] - - 11 (97 lb in) Front Side Door Window Replacement

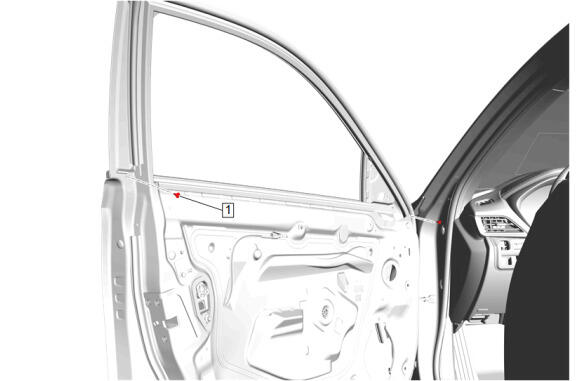

GM5507755Courtesy of GENERAL MOTORS COMPANY
Front Side Door Window Belt Reveal Molding

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Window Belt Reveal Molding Bolt [ 2x ] - - 1.5 (13 lb in) Front Side Door Window Belt Reveal Molding Replacement

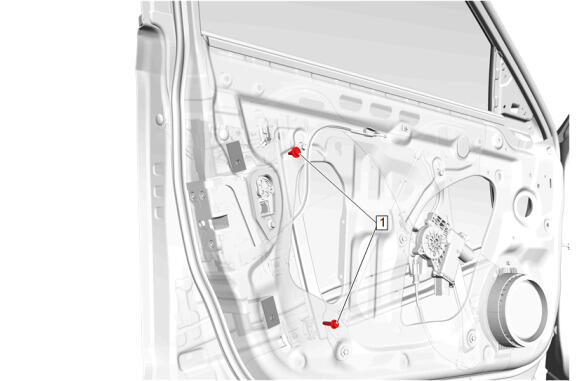

GM5500893Courtesy of GENERAL MOTORS COMPANY
Front Side Door Window Channel Retainer

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Window Channel Retainer Bolt [ 2x ] - - 9 N.m (80 lb in) Front Side Door Window Channel Retainer Replacement

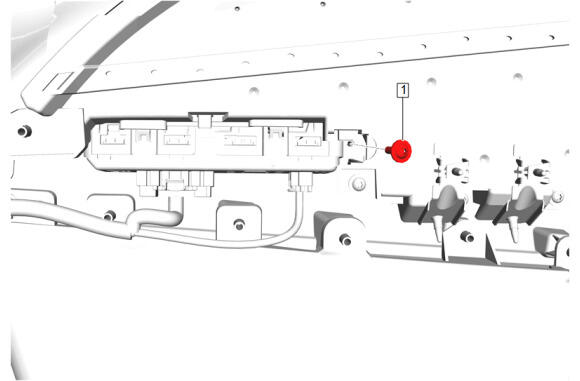

GM5507733Courtesy of GENERAL MOTORS COMPANY
Front Side Door Window Control Switch

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Trim Bolt - - 2.5 N.m (22 lb in) Front Side Door Window Control Switch Replacement

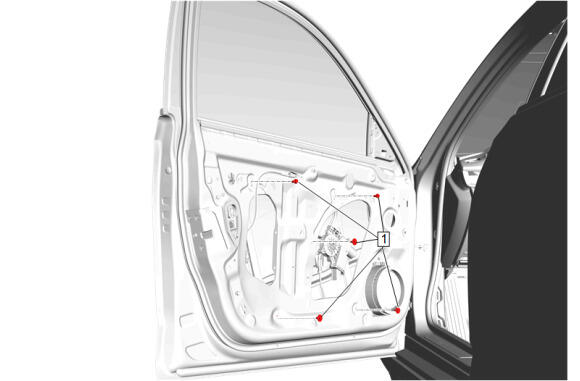

GM5509067Courtesy of GENERAL MOTORS COMPANY
Front Side Door Window Regulator

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Window Regulator Bolt [ 5x ] - - 11 N.m (97 lb in) Front Side Door Window Regulator Replacement

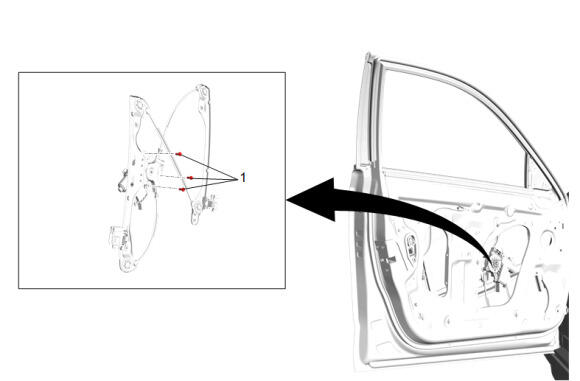

GM5508291Courtesy of GENERAL MOTORS COMPANY
Front Side Door Window Regulator Motor

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Window Regulator Motor Bolt [ 3x ] - - 32 (24 lb ft) Front Side Door Window Regulator Motor Replacement

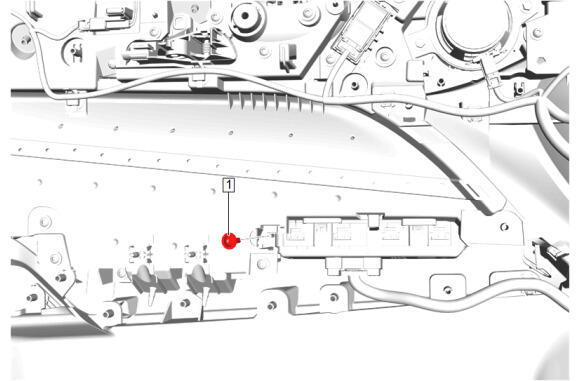

GM5507738Courtesy of GENERAL MOTORS COMPANY
Front Side Door Window Switch Replacement - Right Side

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Trim Bolt - - 2.5 (22 lb in) Front Side Door Window Switch Replacement - Right Side

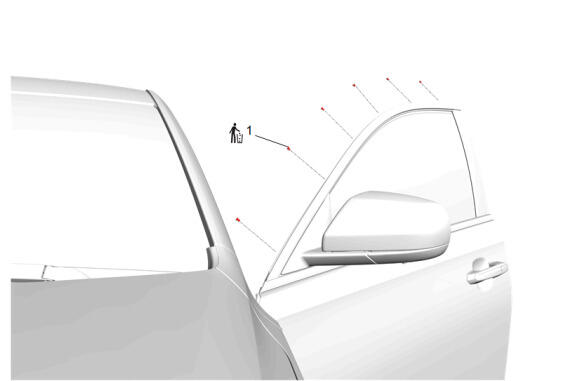

GM5509295Courtesy of GENERAL MOTORS COMPANY
Front Side Door Window Upper Reveal Molding

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Window Upper Reveal Molding Rivet [ 6x ] Yes - - Front Side Door Window Upper Reveal Molding Replacement

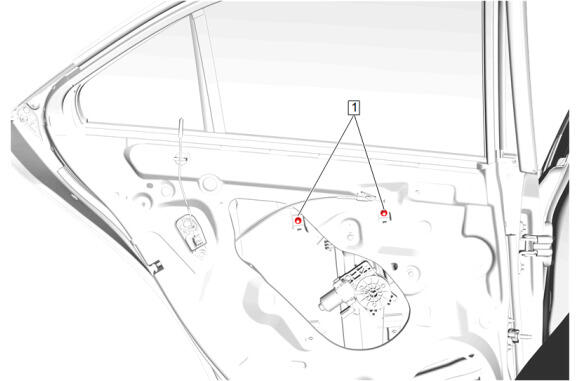

GM5509219Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Window

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Window Regulator Sash Clamp Nut [ 2x ] - - 11 (97 lb in) Rear Side Door Window Replacement

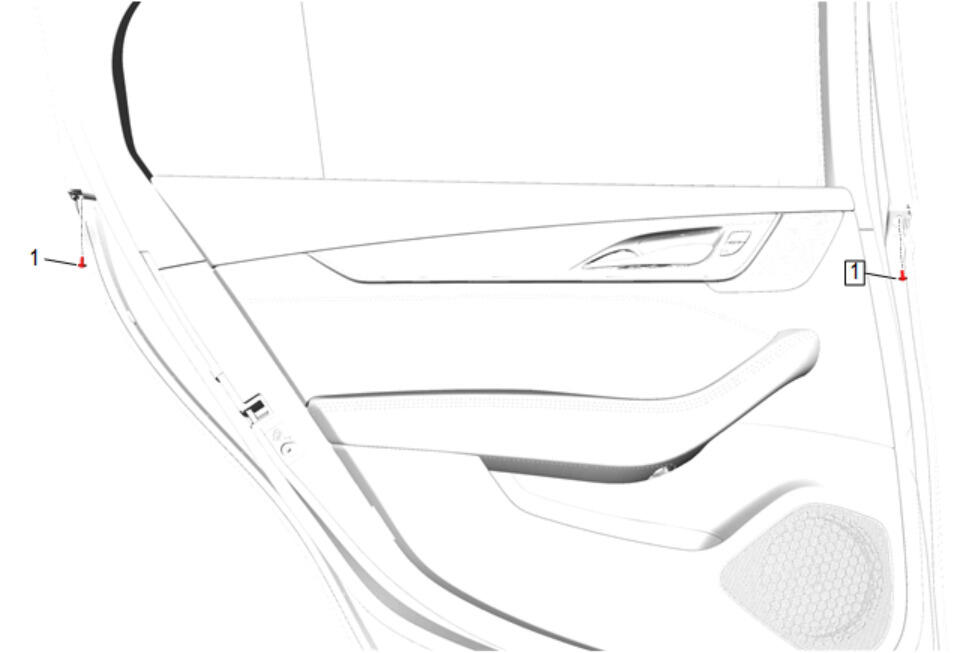

GM5318442Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Window Belt Reveal Molding

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Window Belt Reveal Molding Bolt [ 2x ] - - 1.5 (13 lb in) Rear Side Door Window Belt Reveal Molding Replacement

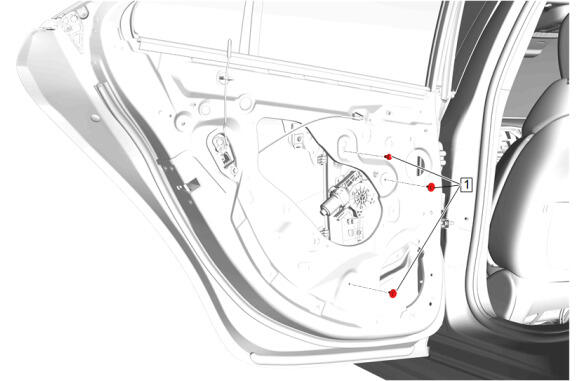

GM5509091Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Window Regulator

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Window Regulator Bolt [ 3x ] - - 11 (97 lb in) Rear Side Door Window Regulator Replacement

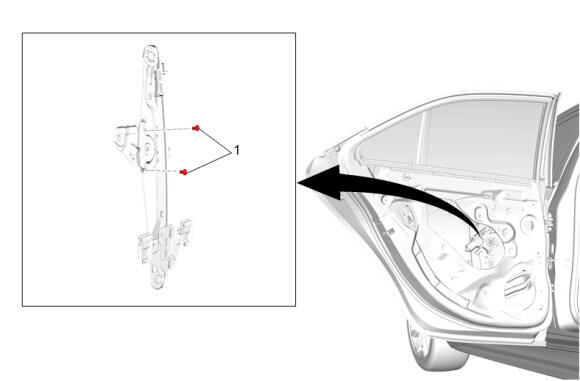

GM5508893Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Window Regulator Motor

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Window Regulator Motor Bolt [ 2x ] - - 11 (97 lb in) Rear Side Door Window Regulator Motor Replacement

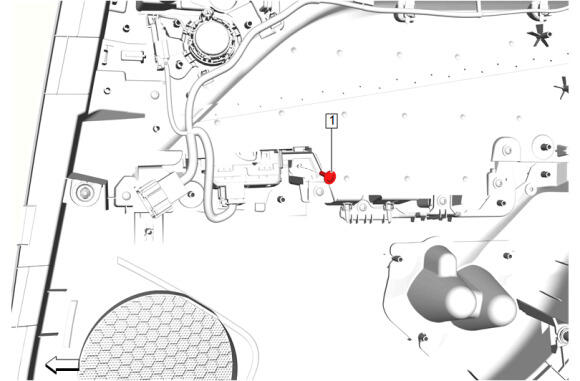

GM5509055Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Window Switch

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Window Switch Bolt - - 2.5 (22 lb in) Rear Side Door Window Switch Replacement

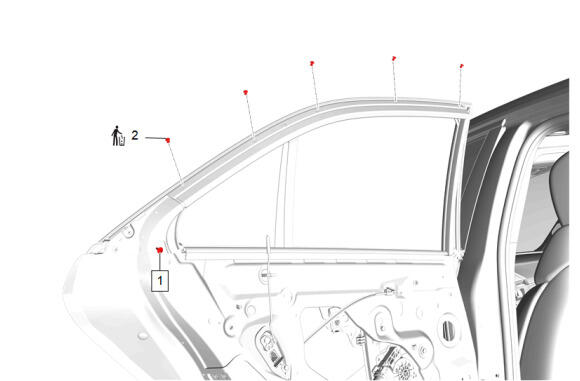

GM5509150Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Window Upper Reveal Molding

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Window Upper Reveal Molding Bolt - - 1.5 (13 lb in) Rear Side Door Window Upper Reveal Molding Replacement
2 Rear Side Door Window Upper Reveal Molding Rivet
[ 5x ]		 Yes - - Rear Side Door Window Upper Reveal Molding Replacement

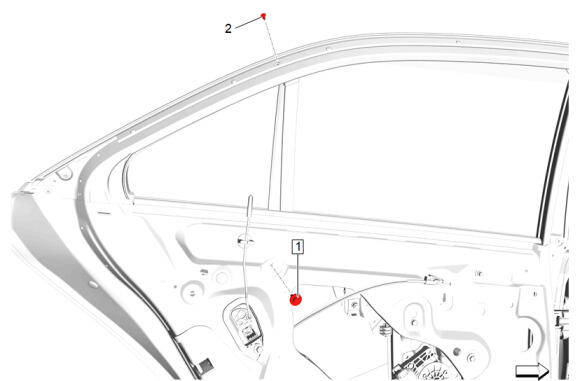

GM5509102Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Window Weatherstrip

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Window Rear Channel Bolt - - 11 (97 lb in) Rear Side Door Window Weatherstrip Replacement
2 Rear Side Door Window Weatherstrip Bolt - - 2.5 (22 lb in) Rear Side Door Window Weatherstrip Replacement
