Fastener Specifications
WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

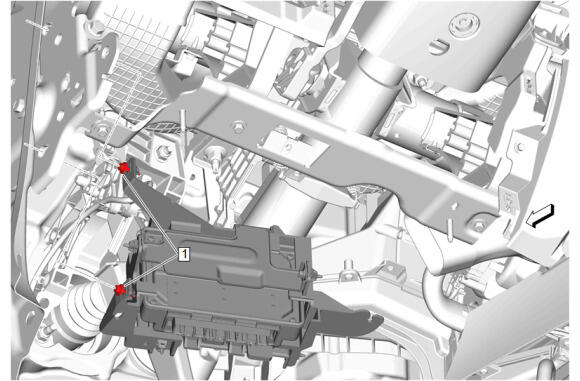

Body Control Module Bracket
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Body Control Module Bracket Bolt | - | - | 2.5 (22 lb in) | Body Control Module Bracket Replacement |
Serial Data Gateway Module Bracket
| Callout | Component Name | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Serial Data Gateway Module Bracket Bolt [ 2x ] | - | - | 2.5 (22 lb in) | Serial Data Gateway Bracket Replacement |
