Installation Procedure
WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

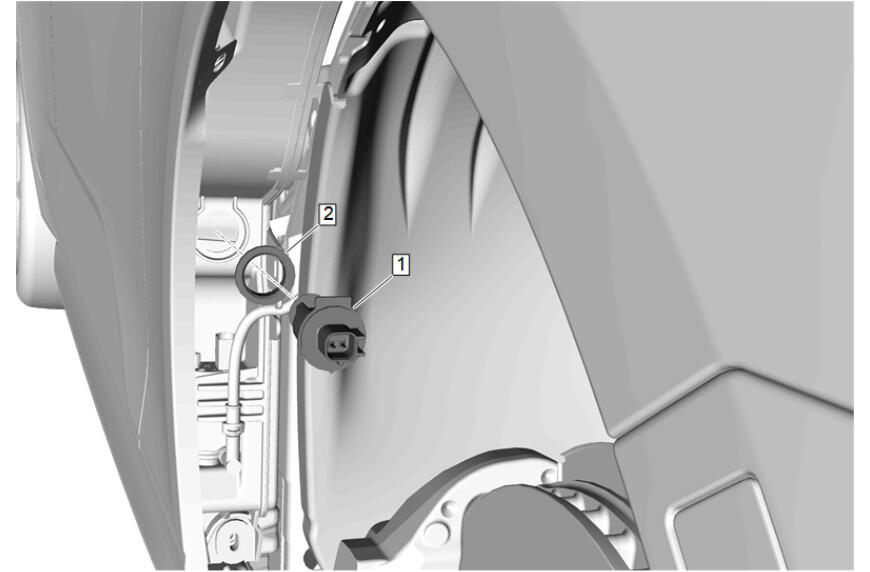

When installing the windshield washer solvent container level sensor grommet (2), use full strength windshield washer fluid as a lubricant on the grommet.
- Push the windshield washer solvent container level sensor grommet (2) into the windshield washer solvent container until fully seated.
- Windshield Washer Solvent Container Level Sensor (1) - Install
- Connect the electrical connector.

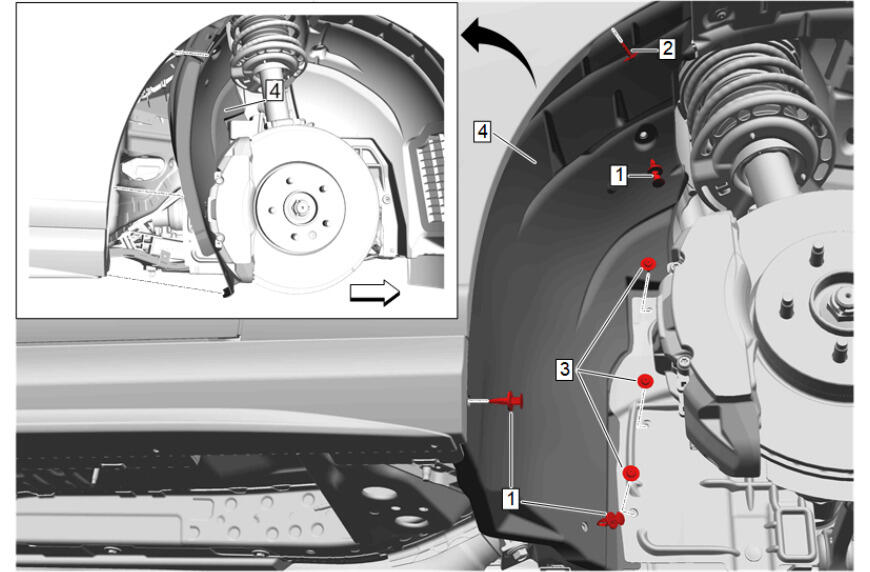

Position the rear section of the right front wheelhouse liner (4) to the original location.
- Engine Front Splash Shield Bolt(3) - Install and tighten [3x] - Fastener Specifications
- Front Wheelhouse Liner Bolt (2) - Install and tighten - Fastener Specifications
- Front Wheelhouse Liner Retainer (1) - Install [3x]
- Remove the drain pan from under the windshield washer solvent container and refill the windshield washer solvent container.
- Install the right front tire and wheel assembly. Tire and Wheel Removal and Installation
CAUTION:
Refer to Fastener Caution .
