Fastener Specifications
WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

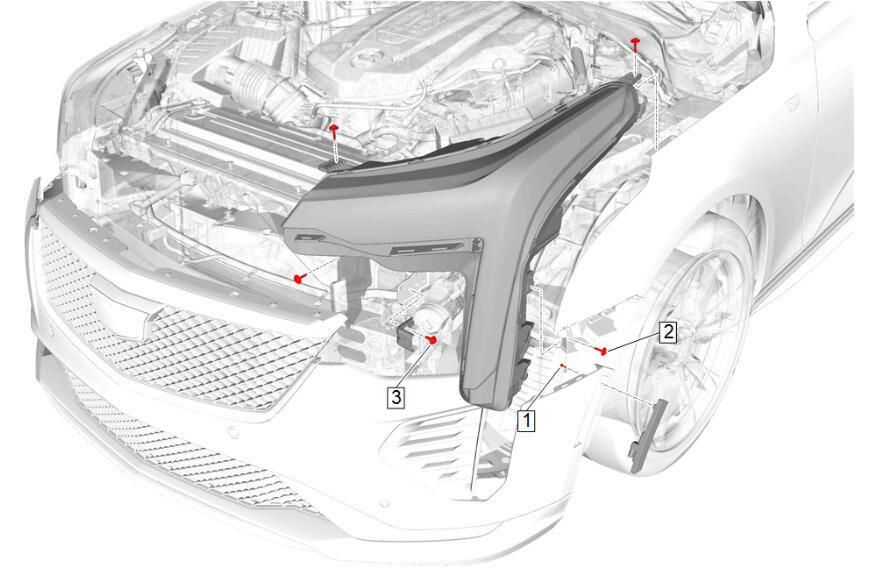

Front Lighting
| Callout | Component Name [ Component Quantity ] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Side Marker Lamp Screw | - | - | 2.5 (22 lb in) | Front Side Marker Lamp Replacement |
| 2 | Headlamp Bolt [ 4x ] | - | - | 2.5 (22 lb in) | Front Headlamp Replacement |
| 3 | Headlamp Bracket Bolt | - | - | 9(80 lb in) | Headlamp Bracket Replacement |

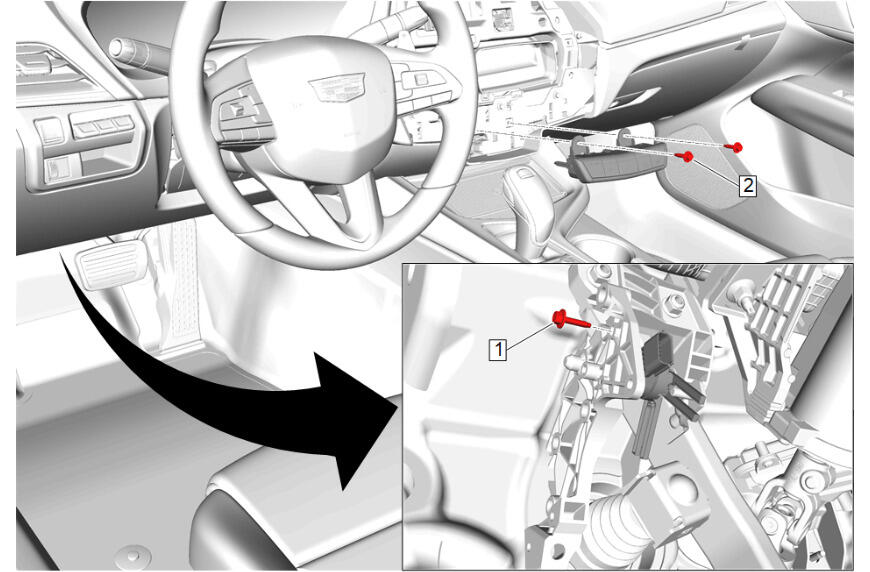

Interior Lighting
| Callout | Component Name [ Component Quantity ] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Brake Pedal Position Sensor Bolt | - | - | 3 (27 lb in) | Brake Pedal Position Sensor Replacement |
| 2 | Hazard Warning Switch Bolt [ 2x ] | - | - | 2.5 (22 lb in) | Hazard Warning Switch Replacement (3 and 5 Button)Hazard Warning Switch Replacement (9 Button) |

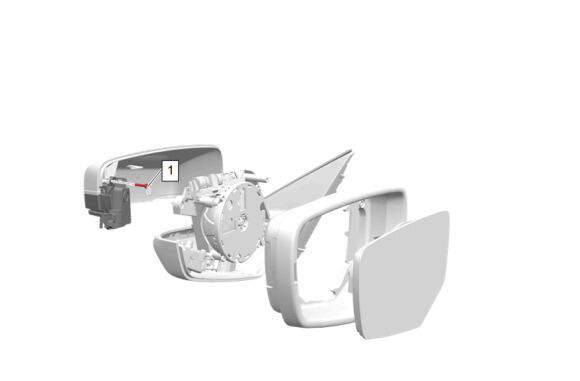

Outside Rearview Mirror Lighting (without DMB)
| Callout | Component Name [ Component Quantity ] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Outside Rearview Mirror Turn Signal Lamp Screw [ 2x ] | - | - | 0.9(8 lb in) | Outside Rearview Mirror Turn Signal Lamp Replacement |

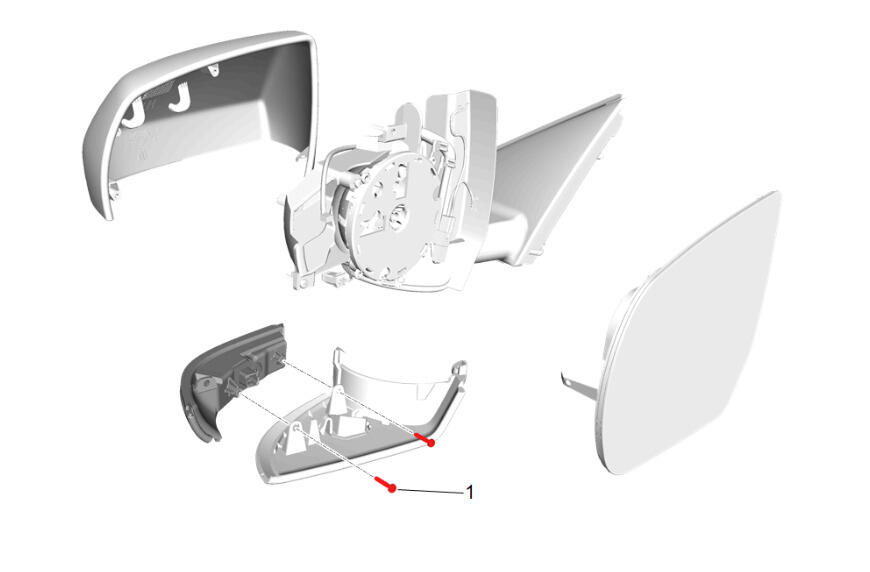

Outside Rearview Mirror Lighting (with DMB)
| Callout | Component Name [ Component Quantity ] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Outside Rearview Mirror Turn Signal Lamp Bolt | - | - | 0.9 (8 lb in) | Outside Rearview Mirror Turn Signal Lamp Replacement |

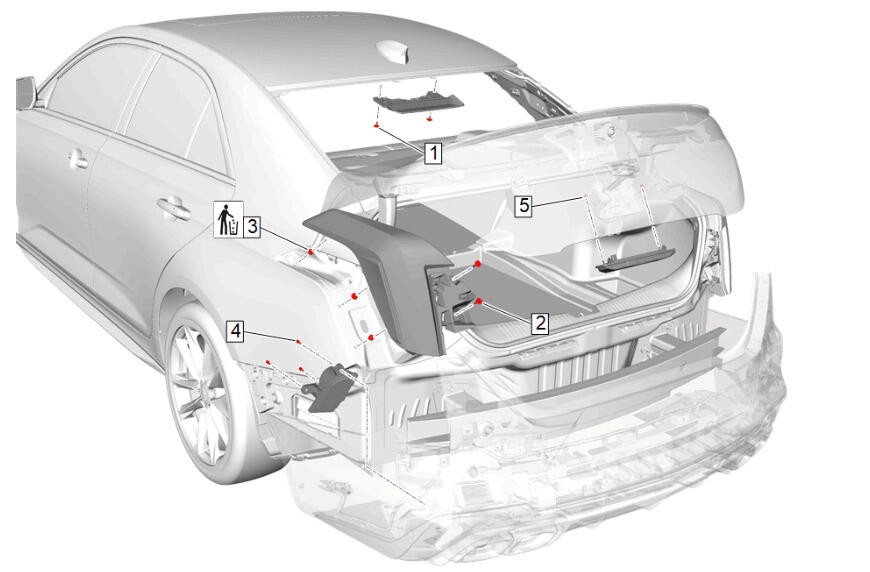

Rear Lighting
| Callout | Component Name | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | High Mount Stop Lamp Bolt [ 2x ] | - | - | 9 (80 lb in) | High Mount Stop Lamp Replacement |
| 2 | Rear Body Structure Stop Lamp Bolt [ 2x ] | - | - | 2.5 (22 lb in) | Rear Body Structure Stop Lamp Replacement |
| 3 | Rear Body Structure Stop Lamp Retainer [ 3x ] | Yes | - | - | Rear Body Structure Stop Lamp Replacement |
| 4 | Rear Fascia Lower Signal Lamp Bolt [ 3x ] | - | - | 2.5 (22 lb in) | Rear Fascia Lower Signal Lamp Replacement |
| 5 | Rear License Plate Lamp Module Nut [ 2x ] | - | - | 4.7 (42 lb in) | Rear License Plate Lamp Module Replacement |
