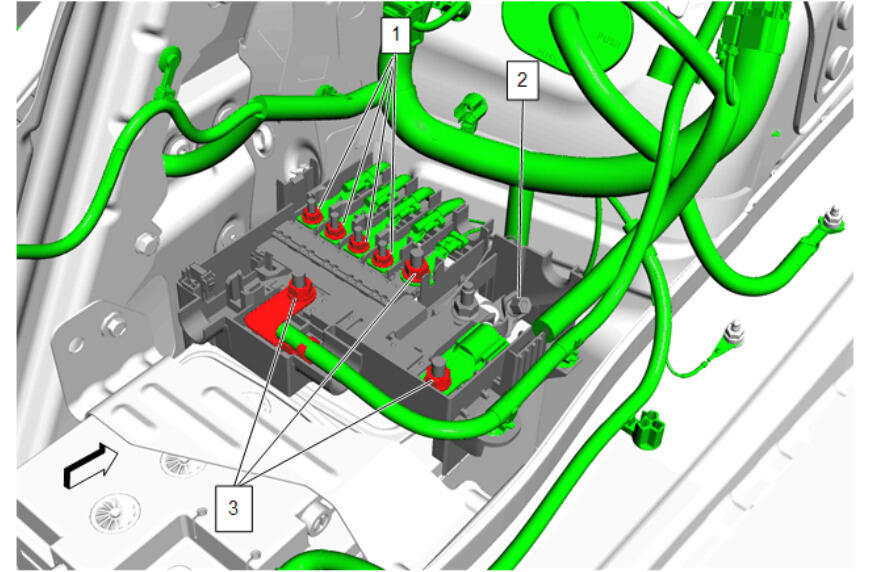

Battery Distribution Fuse Block
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure Link |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Body Wiring Harness Terminal Nut | - | - | 9 (80 lb in) | Battery Distribution Fuse Block Replacement |
| 2 | Battery Positive Post Clamp Nut | - | - | 4.5 (40 lb in) | Battery Distribution Fuse Block Replacement |
| 3 | Battery Positive Cable Nut [ 3x ] | - | - | 15 (11 lb ft) | Battery Distribution Fuse Block Replacement |

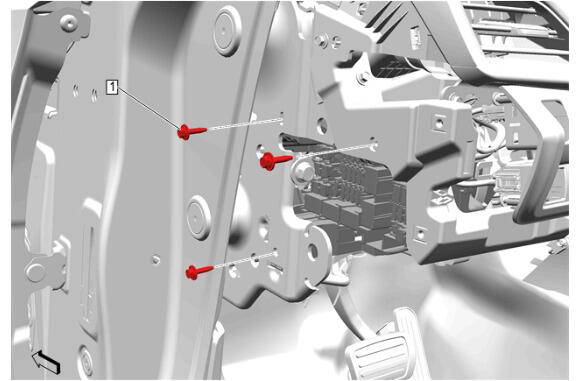

Instrument Panel Wiring Harness Junction Block
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure Link |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Compartment Fuse Block Bolt [ 3x ] | - | - | 2.5 (22 lb in) | Instrument Panel Wiring Harness Junction Block Replacement |

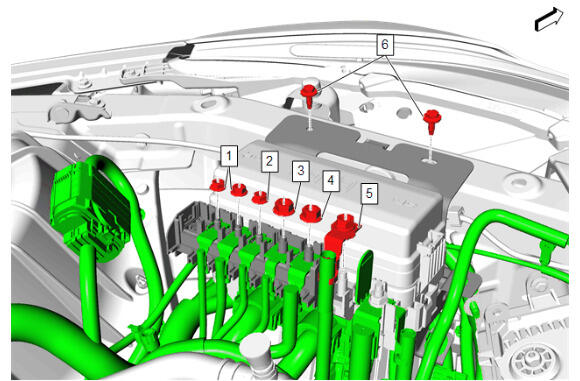

Left Front Side of Engine Compartment
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure Link |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Forward Lamp Wiring Harness Terminal Nut [ 2x ] | - | - | 9 (80 lb in) | Battery Distribution Engine Compartment Fuse Block Replacement |
| 2 | Engine Wiring Harness Terminal Nut M6 | - | - | 9 (80 lb in) | Battery Distribution Engine Compartment Fuse Block Replacement |
| 3 | Engine Wiring Harness Terminal Nut M8 | - | - | 15(11 lb ft) | Battery Distribution Engine Compartment Fuse Block Replacement |
| 4 | Auxiliary Generator Battery Jumper Cable Nut | - | - | 15 (11 lb ft) | Battery Distribution Engine Compartment Fuse Block Replacement |
| 5 | Battery Positive Cable Nut | - | - | 15 N.m (11 lb ft) | Battery Distribution Engine Compartment Fuse Block Replacement |
| 6 | Body Wiring Harness Fuse Block Bracket Bolt | - | - | 9 (80 lb in) | Body Wiring Harness Junction Block Bracket Replacement |

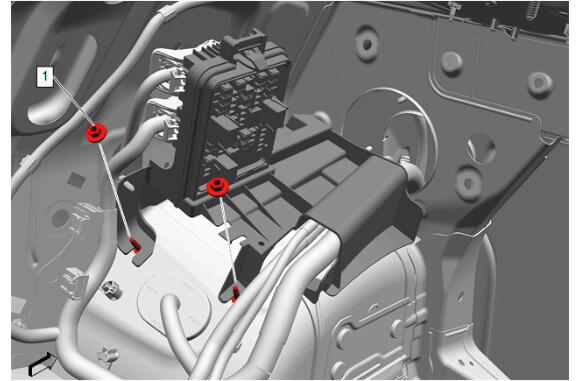

Rear Body Fuse Block Bracket
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure Link |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Body Wiring Harness Junction Block Nut [ 2x ] | - | - | 6 (53 lb in) | Rear Body Fuse Block Bracket Replacement |
