Installation Procedure

WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

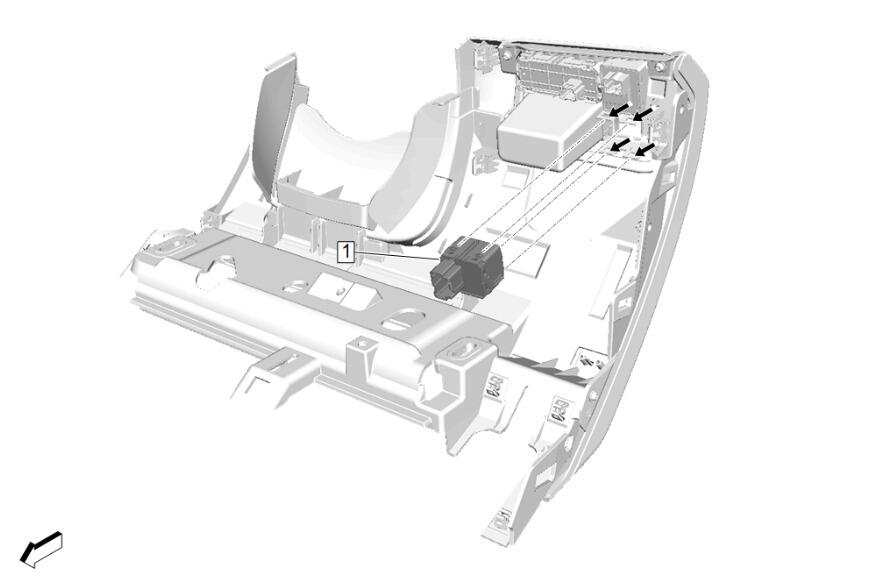

Dimmer Switch (1) - Install
Secure the retaining tabs.
Courtesy of GENERAL MOTORS COMPANY

Connect and position the wiring harness.

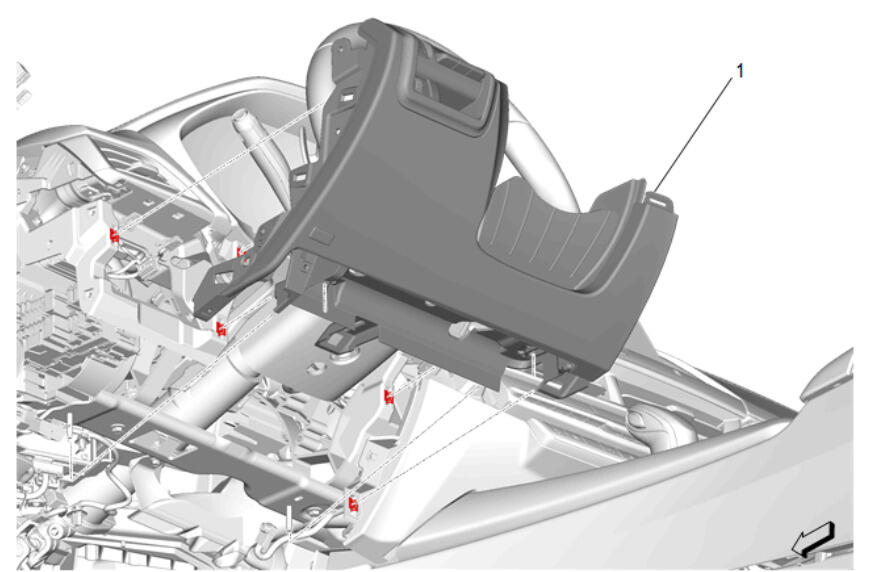

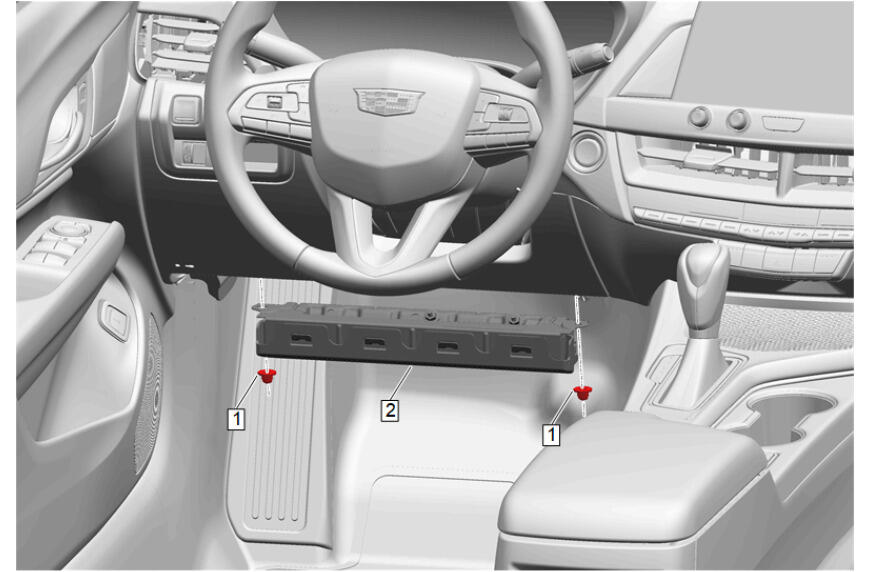

Instrument Panel Knee Bolster (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

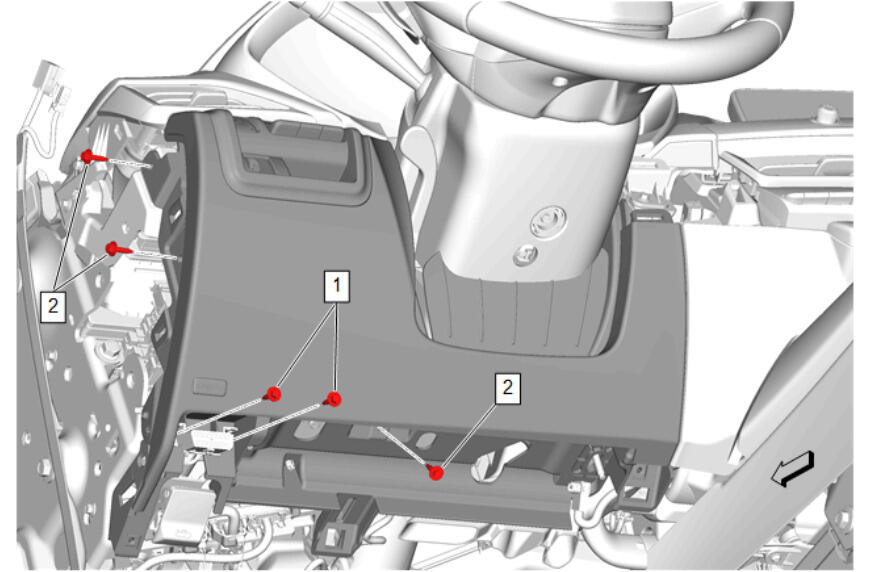

Data Link Connector Bolt (1) - Install and tighten [2x] - Fastener Specifications
Instrument Panel Knee Bolster Bolt (2) - Install and tighten [3x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

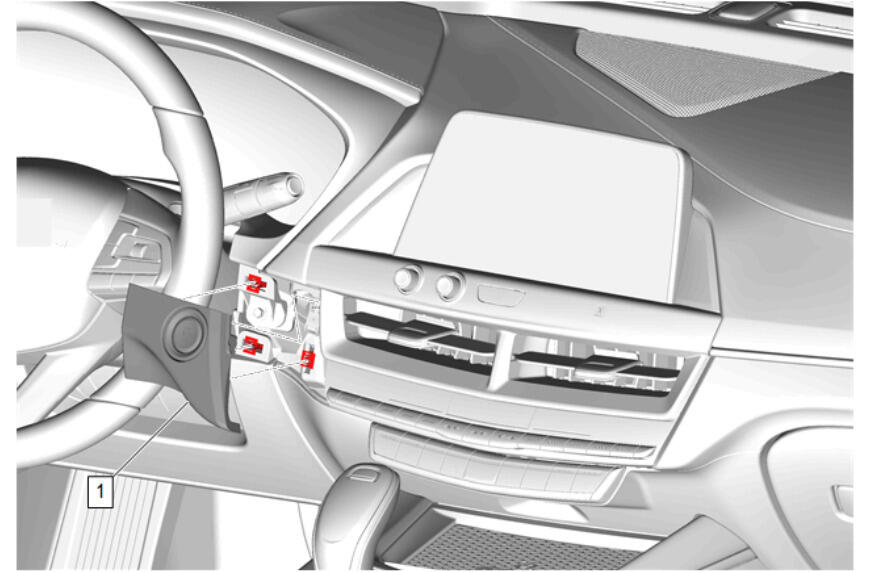

Instrument Panel Center Trim Pad (1) - Install
Return the steering column to its original position.
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connector.
Instrument Panel Lower Trim Panel Insulator (1) - Install
Courtesy of GENERAL MOTORS COMPANY

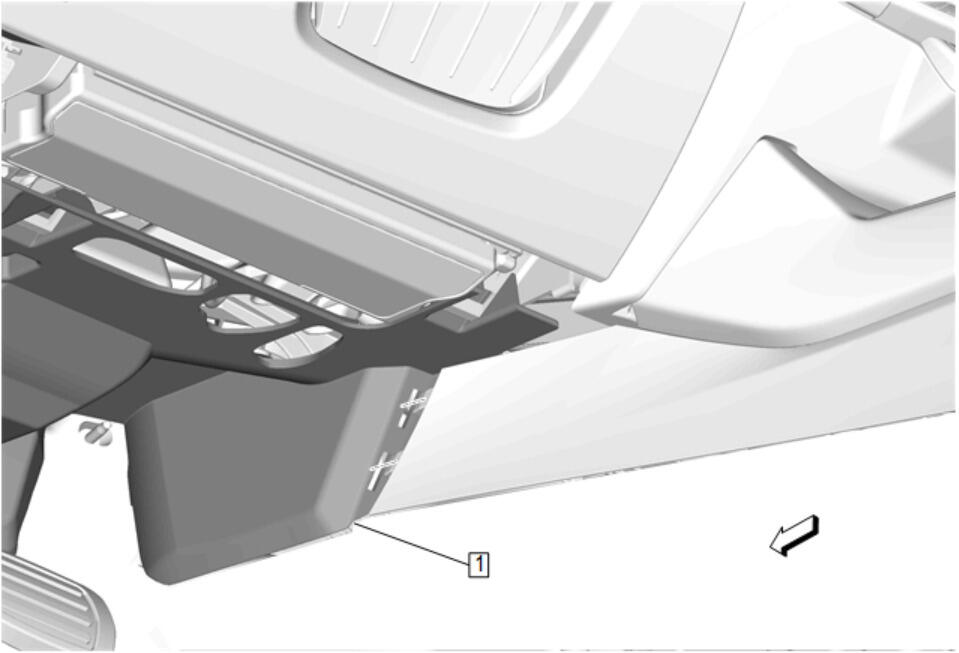

Install the tabs into the instrument panel lower trim panel insulator (1).
Courtesy of GENERAL MOTORS COMPANY

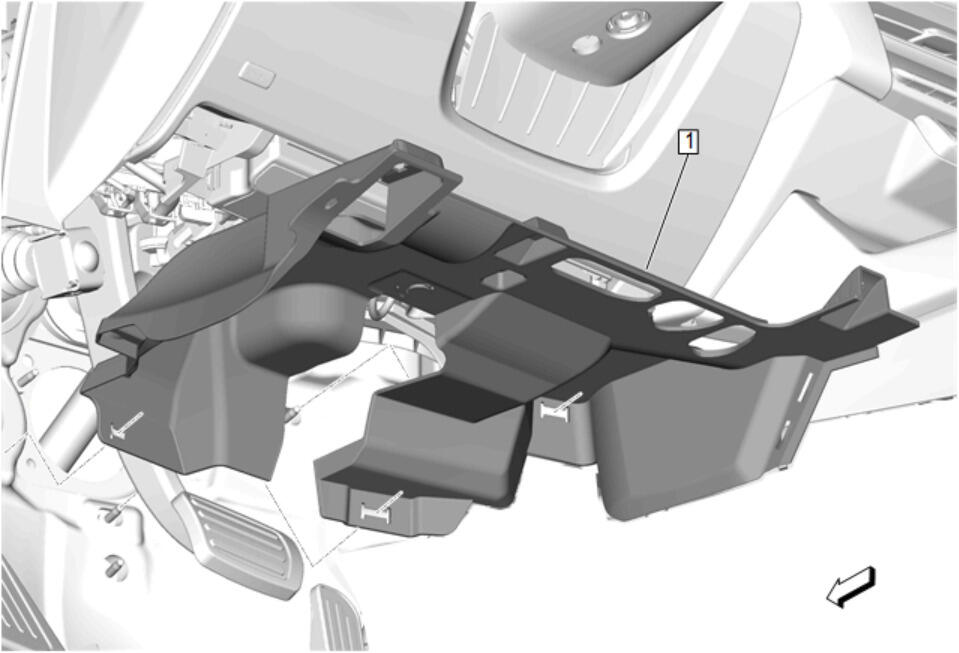

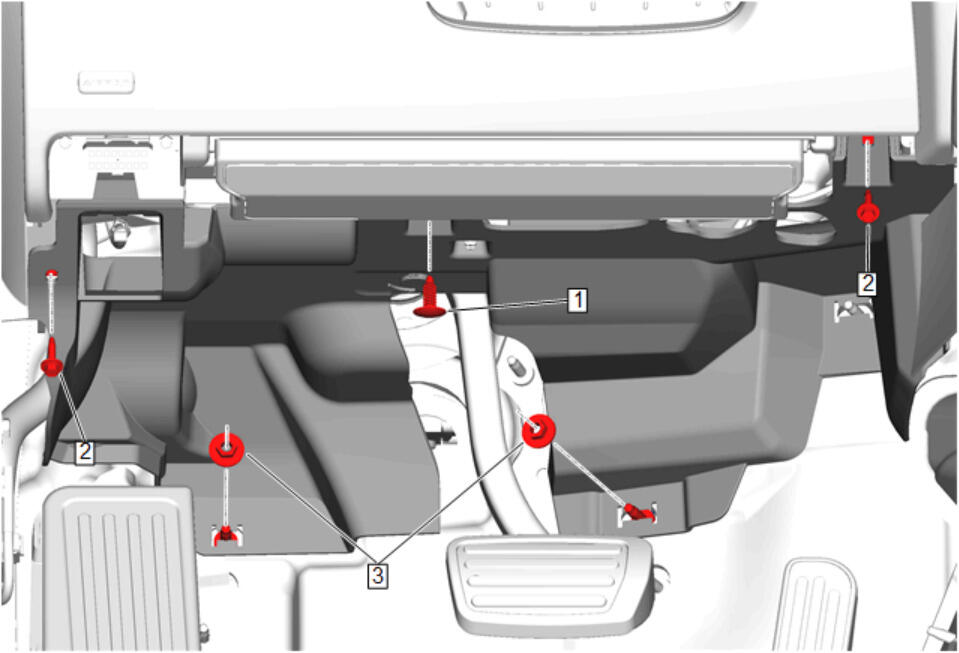

Instrument Panel Lower Trim Panel Insulator Retainer (1) - Install
Instrument Panel Insulator Bolt (2) - Install and tighten [2x] - Fastener Specifications
Instrument Panel Insulator Nut (3) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

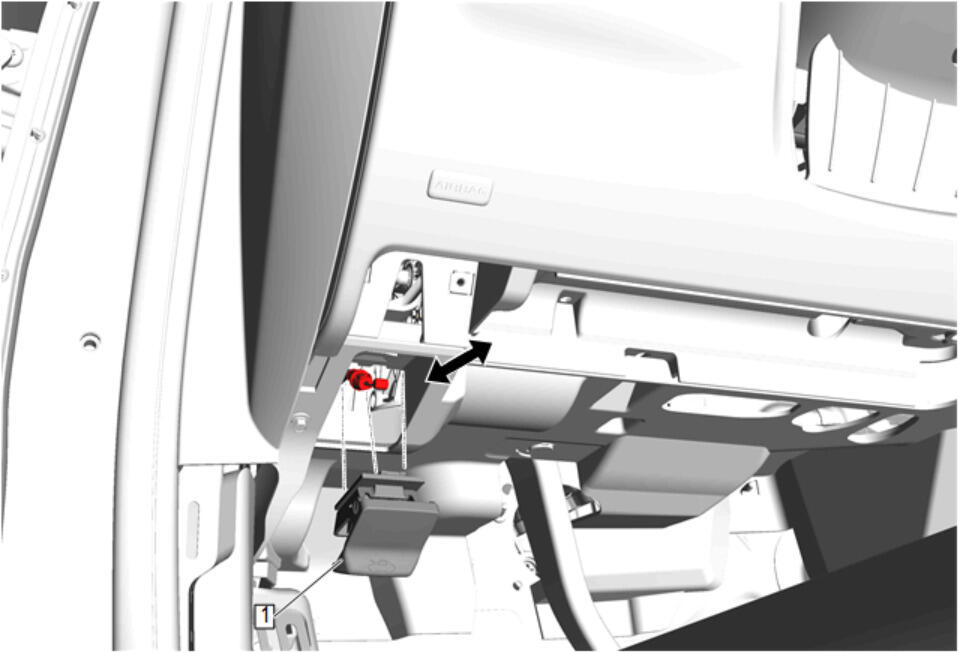

Attach the hood primary latch release cable end retainer to the hood primary latch release cable handle (1).
Courtesy of GENERAL MOTORS COMPANY

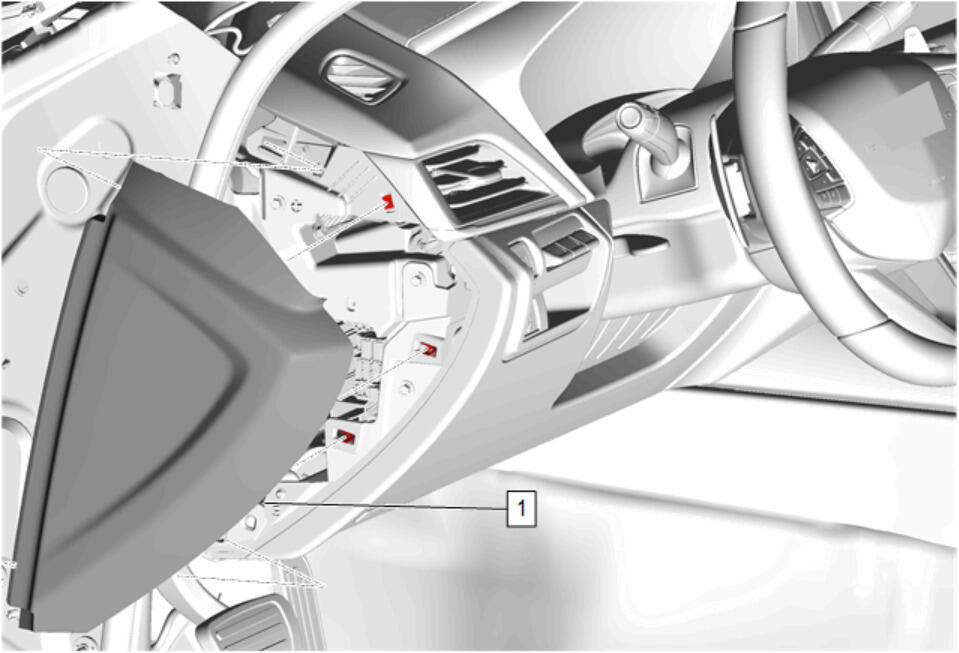

Instrument Panel Outer Trim Cover - Left Side (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connector.
Instrument Panel Lower Airbag - Driver Side (2) - Install
Instrument Panel Lower Airbag Nut (1) - Install and tighten [2x] - Fastener Specifications
Enable the SIR System. SIR Disabling and Enabling .
