Forward Collision Alert Display Replacement

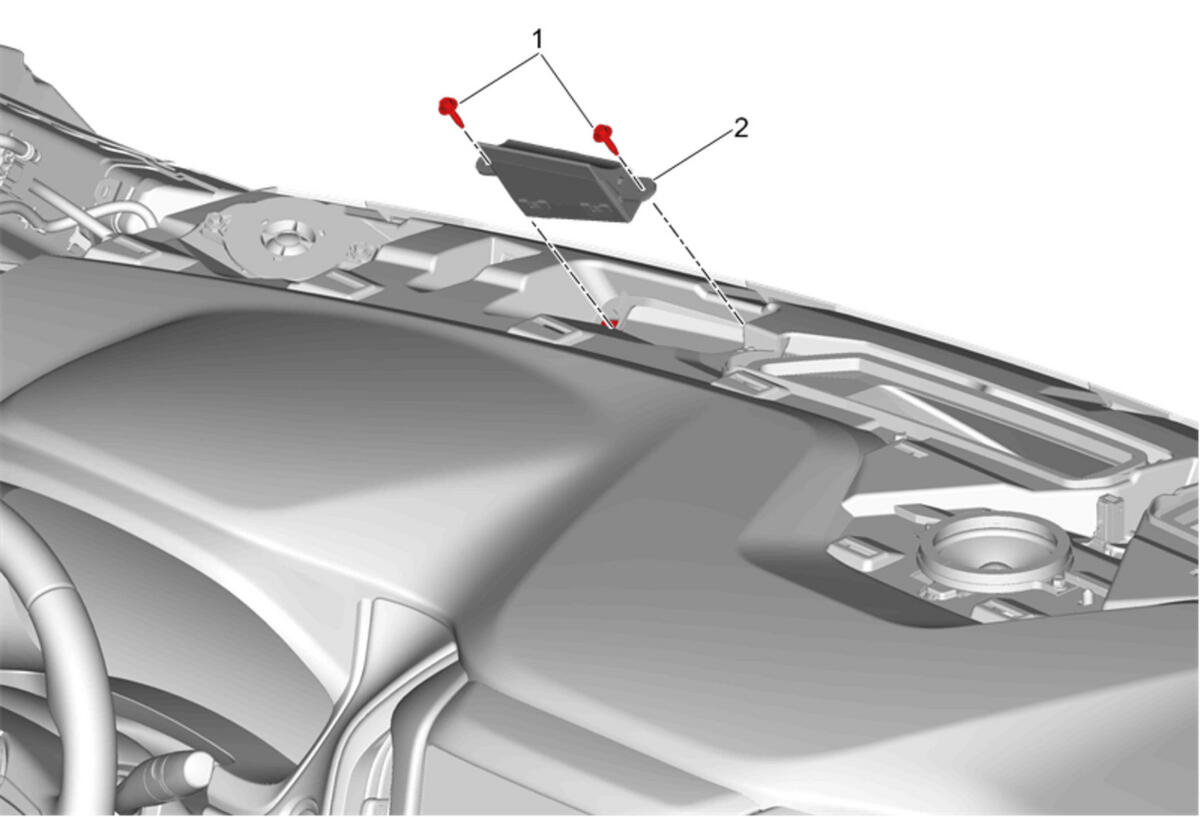

GM4747629Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Instrument Panel Extension Replacement
1 Forward Collision Alert Display Bolt [2x]
CAUTION:

Fastener Caution


Tighten
2.5 N.m (22 lb in)
2 Forward Collision Alert Display
Procedure
Disconnect the electrical connector.
