Installation Procedure

WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

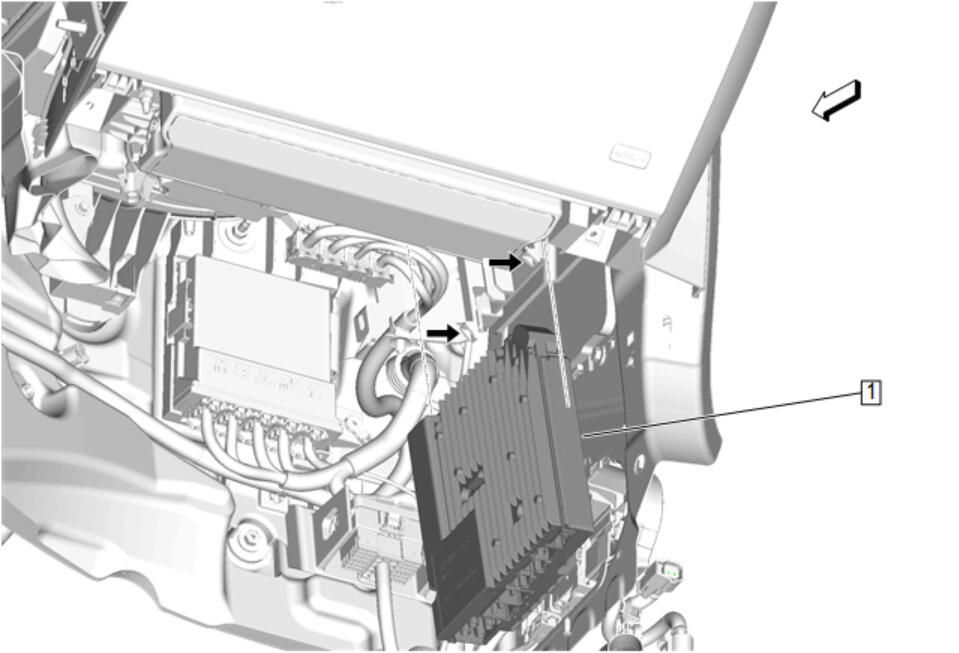

Radio (1) - Install
Connect the electrical connectors.
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connectors.
Instrument Panel Lower Trim Panel Insulator (1) - Install
Install the front edge of the front floor console extension panel into the instrument panel lower trim panel insulator (1).
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

Instrument Panel Insulator Bolt (2) - Install and tighten [ 4x ] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Unlock and lower the body control module bracket (2).
Connect the electrical connectors.
Close and lock the body control module bracket (2) into the instrument panel lower trim panel insulator.
Body Control Module Bracket Bolt (1) - Install and tighten - Fastener Specifications
Perform the necessary programming and setup procedure:Control Module References
