Front Seat Heater Control Module Bracket Replacement

Courtesy of GENERAL MOTORS COMPANY

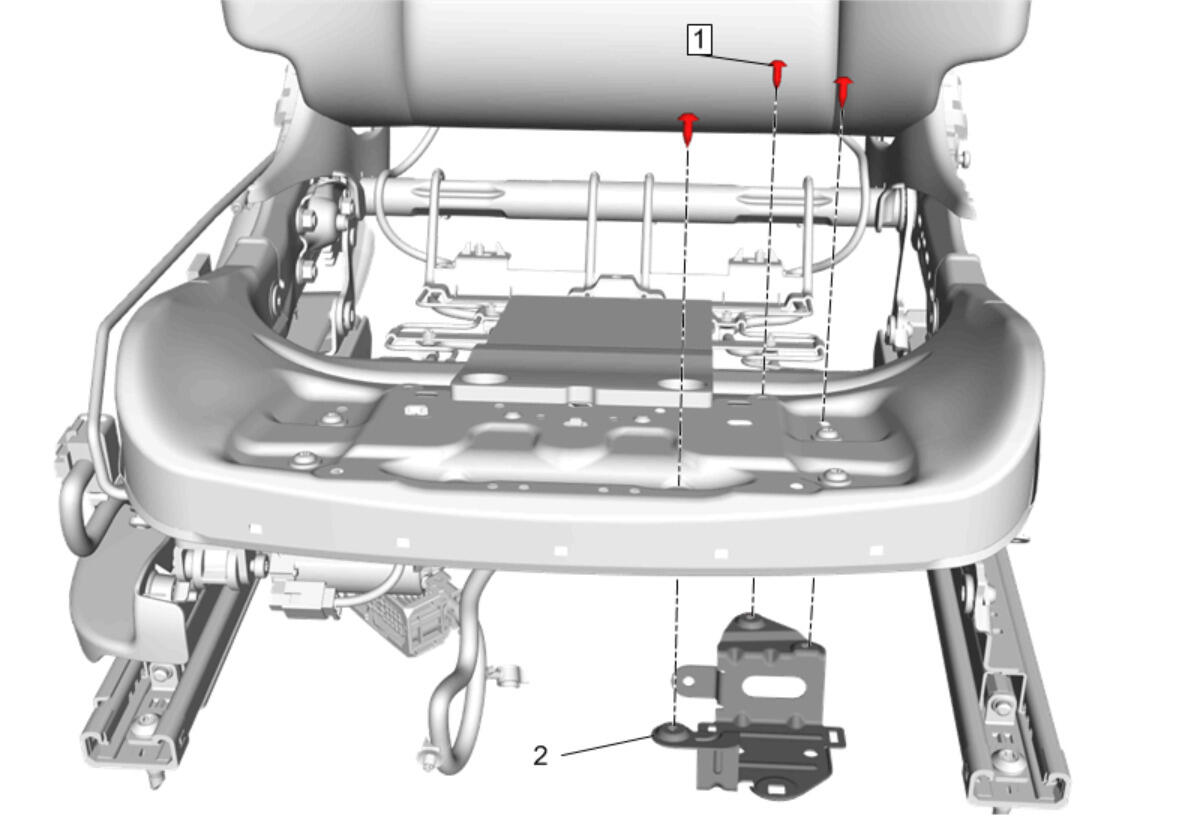

Callout	Component Name
Preliminary Procedure Reposition the front seat cover and pad as necessary. Front Seat Cushion Cover and Pad Replacement
1	Front Seat Heater Control Module Bracket Fastener [ 3x ] CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Front Seat Heater Control Module Bracket Procedure Disconnect the electrical connectors. Unclip the wiring harness. Transfer components as necessary.

Callout

Component Name

Preliminary Procedure
Reposition the front seat cover and pad as necessary. Front Seat Cushion Cover and Pad Replacement

Front Seat Heater Control Module Bracket Fastener [ 3x ]

CAUTION:

Tighten
2.5 N.m (22 lb in)

Front Seat Heater Control Module Bracket

Procedure
