Installation Procedure

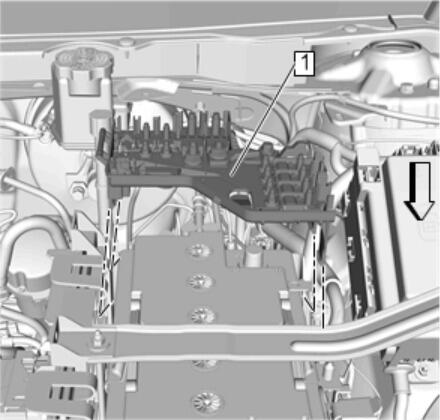

  1. GM4734794Courtesy of GENERAL MOTORS COMPANY

    Fuse Block (1) - Install

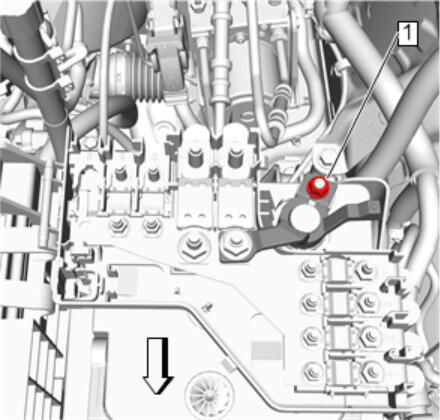

  2. GM4734793Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Install and tighten the positive post connector nut (1) to 9 N.m (80 lb in)

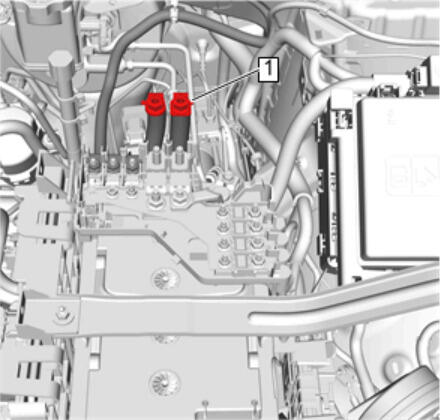

  3. GM4735395Courtesy of GENERAL MOTORS COMPANY

    Install and tighten the m8 fuse block wiring harness terminal and nut (1) [ 2x ] to 16 N.m (12 lb ft)

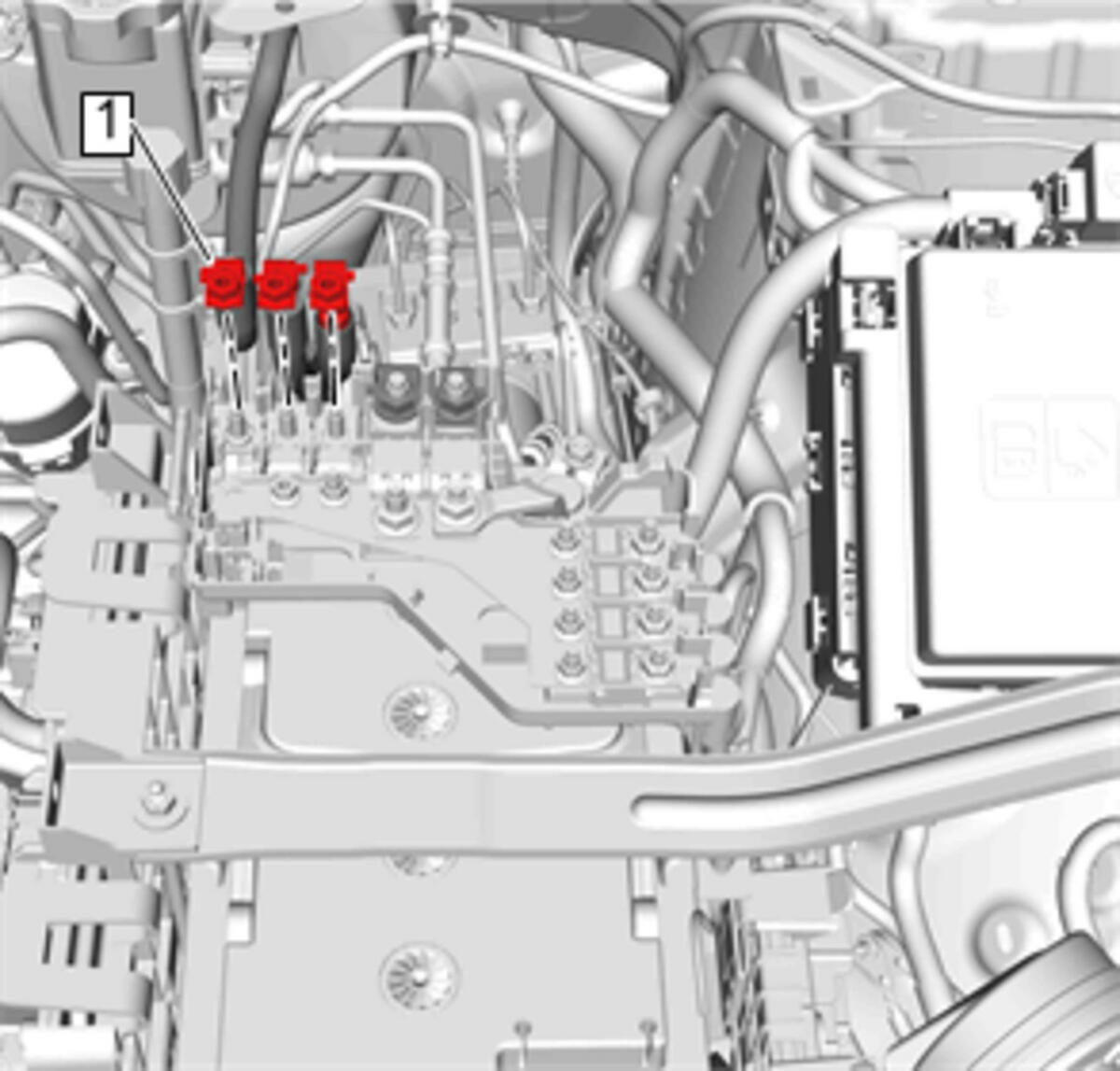

  4. GM4735393Courtesy of GENERAL MOTORS COMPANY

    Install and tighten the m6 fuse block wiring harness terminal and nut (1) [ 3x ] to 9 N.m (80 lb in)

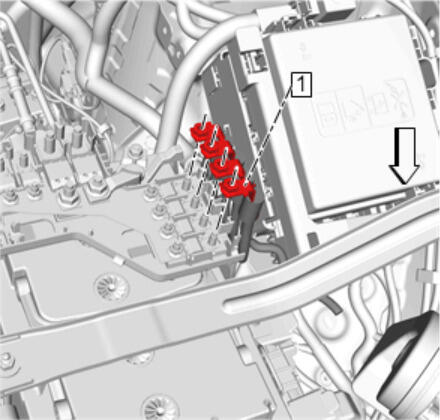

  5. GM4734791Courtesy of GENERAL MOTORS COMPANY

    Install and tighten the fuse block wiring harness terminal and nut (1) [ 4x ] to 9 N.m (80 lb in)

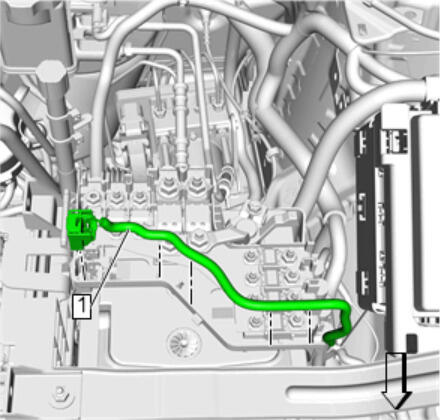

  6. GM4734790Courtesy of GENERAL MOTORS COMPANY

    Body Wiring Harness Connector (1) - Install

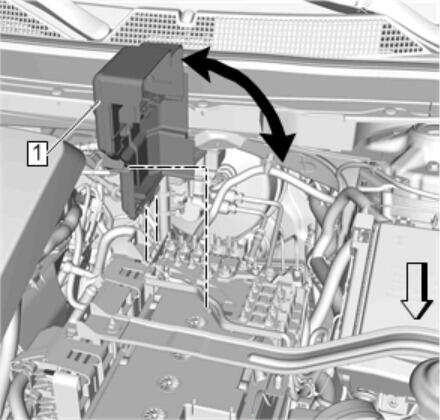

  7. GM4734788Courtesy of GENERAL MOTORS COMPANY

    Fuse Block Cover (1) - Install

  8. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection (KL9) .
