Installation Procedure

WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

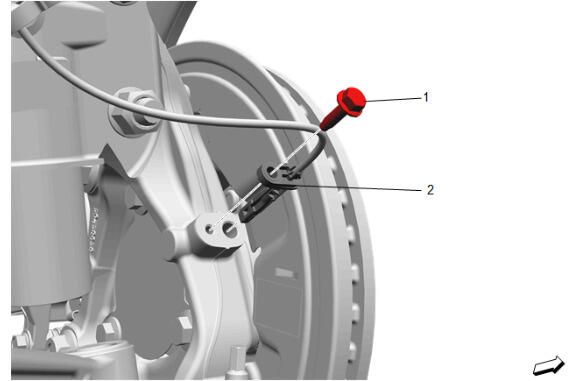

Front Wheel Speed Sensor(2) - Install

CAUTION:

Fastener Caution

Front Wheel Speed Sensor Bolt(1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

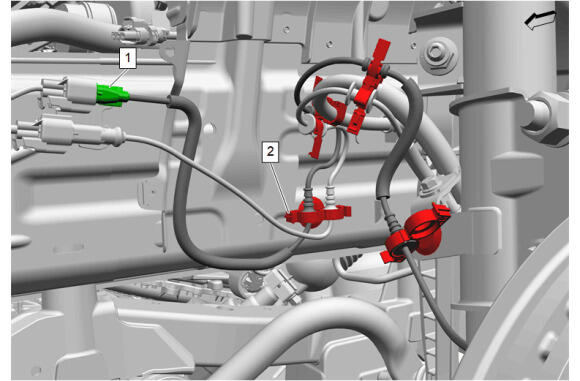

Install the front wheel speed sensor harness to the retainers (2) and secure the retainers (2).
Pull the front wheelhouse liner outwards to gain clearance to connect the electrical connector (1).
Electrical Connector(1) - Connect
Courtesy of GENERAL MOTORS COMPANY

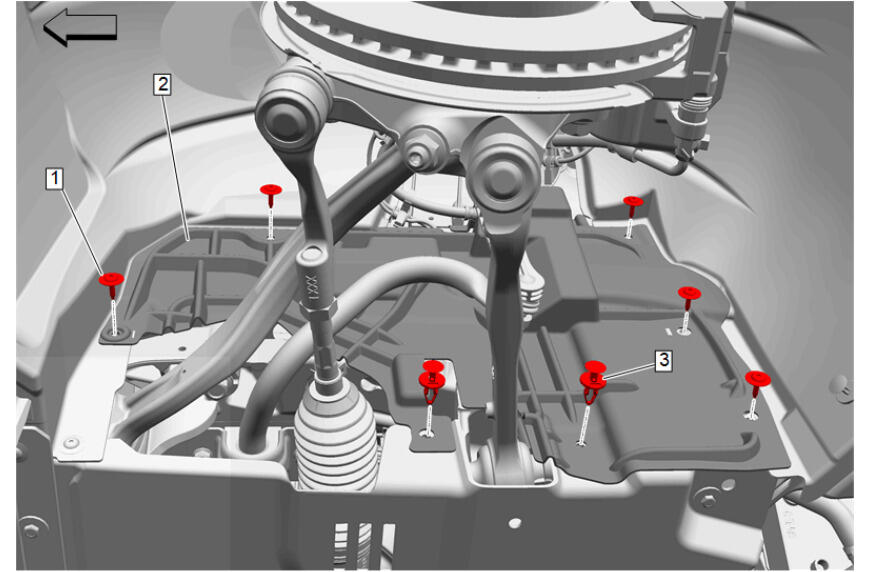

Engine Front Splash Shield(2) - Install
Engine Front Splash Shield Bolt(1) - Install and tighten[5x] - Fastener Specifications

NOTE:

Quantity of fasteners may vary based on option content.

Engine Front Splash Shield Retainer (3) - Install[2x]
Install the front tire and wheel assembly. Tire and Wheel Removal and Installation
Remove the support and lower the vehicle.
