Installation Procedure
WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
Multimedia Receptacle (1) - Install

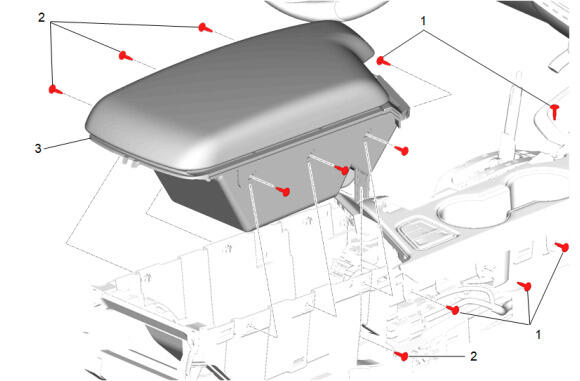

Front Floor Console Armrest (3) - Install
- Attach the front floor console cup holder to the front floor console armrest (3).
- Front Floor Console Armrest Bolt (2) - Install and tighten [ 7x ] - Fastener Specifications
- Front Floor Console Cup Holder Bolt (1) - Install [ 3x ] - Fastener Specifications
Connect all electrical connectors.
- Front Floor Console Rear Trim Panel (2) - Install
- Front Floor Console Rear Cover Bolt (1) - Install and tighten [ 2x ] - Fastener Specifications
Front Floor Console Extension Panel - Left Side (1) - Install
- Return the seat to its original position.
Front Floor Console Extension Panel - Right Side (1) - Install
- Return the seat to its original position.
CAUTION:
Refer to Fastener Caution .
