Installation Procedure
WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
Connect the electrical connector.

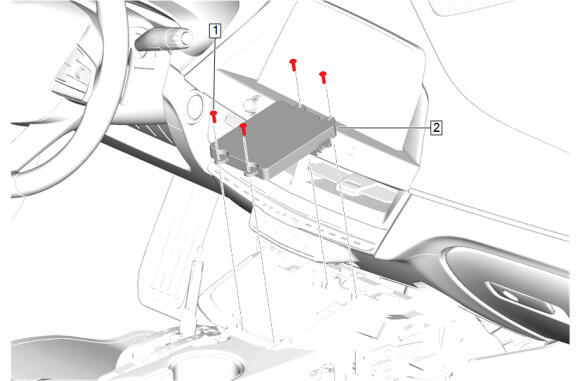

- Wireless Charging System Module (2) - Install
- Wireless Charging System Module Bolt (1) - Install and tighten [ 4x ] - Fastener Specifications
Connect the electrical connector.
- Front Floor Console Trim Plate (1) - Install
Front Floor Console Trim Plate Bolt (2) - Install and tighten [ 2x ] - Fastener Specifications
- Front Floor Console Variable 1 Liner (1) - Install
Slide the front floor console (1) back into the instrument panel.

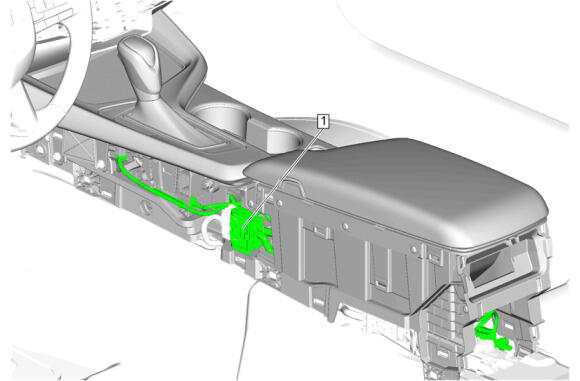

Connect the front floor console harness connector (1).
Front Floor Console Bolt (1) - Install and tighten [ 6x ] - Fastener Specifications
- Front Floor Console Bracket Bolt (2) - Install and tighten [ 2x ] - Fastener Specifications
Front Floor Console Extension Panel - Right Side (1) - Install
- Return the seat to its original position.
Front Floor Console Extension Panel - Left Side (1) - Install
- Return the seat to its original position.
- Perform the necessary programming and setup procedure:Control Module References
CAUTION:
Refer to Fastener Caution .
