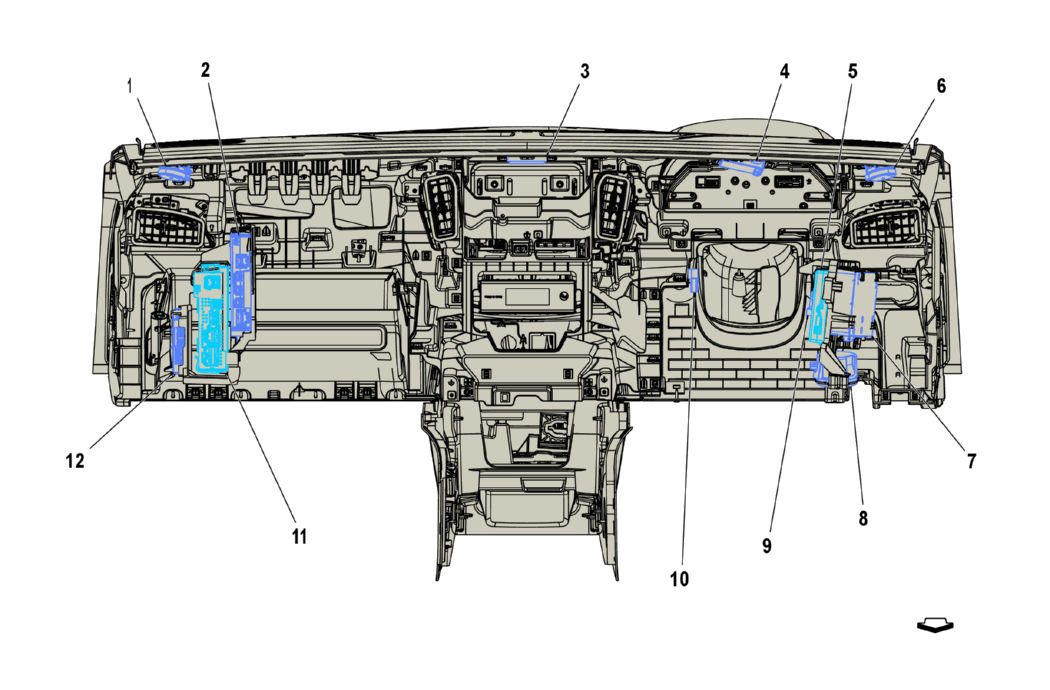

Behind the Instrument Panel Components (IOS/IOT)

Courtesy of GENERAL MOTORS COMPANY

Component Name	Callout
P19W Speaker - Right Instrument Panel P19W Speaker - Right Instrument Panel (UQA) , or P19W Speaker - Right Instrument Panel (UQF)	1
K74 Human Machine Interface Control Module	2
P19B Speaker - Center Instrument Panel P19B Speaker - Center Instrument Panel (UQA)	3
P16 Instrument Cluster P16 Instrument Cluster (UDC) , or P16 Instrument Cluster (UDD/UHS)	4
C3 Telematics Communication Interface Control Module Battery	5
P19J Speaker - Left Instrument Panel P19J Speaker - Left Instrument Panel (UQA) , or P19J Speaker - Left Instrument Panel (UQF)	6
K73 Telematics Communication Interface Control Module (UE1 or UI3) K73 Telematics Communication Interface Control Module X1 (UE1/UI3) , or K73 Telematics Communication Interface Control Module X5 (UE1/UI3) , or K73 Telematics Communication Interface Control Module X7 (UE1/UI3)	7
P50 Emergency Call Backup Speaker (UI3) P50 Emergency Call Backup Speaker (UE1/UI3)	8
K56 Serial Data Gateway Module K56 Serial Data Gateway Module X1 , or K56 Serial Data Gateway Module X2	9
P43 Collision Alert Indicators (UEU) P43 Collision Alert Indicators (UEU)	10
A11 Radio A11 Radio X1 (IOR) , or A11 Radio X10 , or A11 Radio X2 (IOR) , or A11 Radio X2 (IOS/IOU) , or A11 Radio X2 (UQF+ (IOS/IOU)) , or A11 Radio X3 (IOR+ (UE1/UER)) , or A11 Radio X3 (IOS/IOU) , or A11 Radio X4 (IOR) , or A11 Radio X4 (IOS/IOU) , or A11 Radio X5 (IOR+ (UVB/UV2)) , or A11 Radio X5 (UVB/UV2) , or A11 Radio X6 (IOS/IOU) , or A11 Radio X7 (IOR+U2K) , or A11 Radio X8 (IOR) , or A11 Radio X9 ((IOS/IOT)+U2K)	11
K188 Human Machine Interface Control Module Bypass Module	12
