Installation Procedure

WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

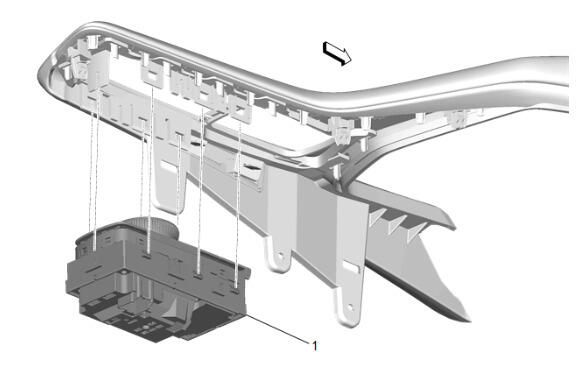

Infotainment Control Switch (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connector.

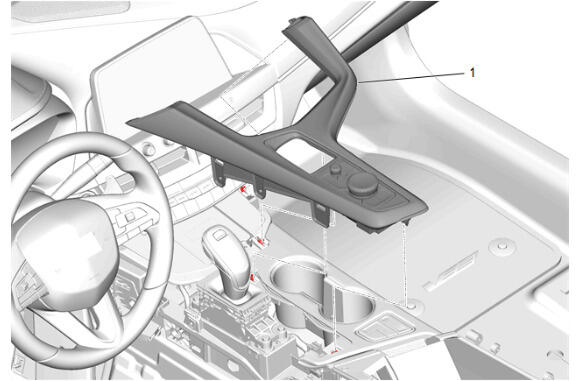

Front Floor Console Trim Plate (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

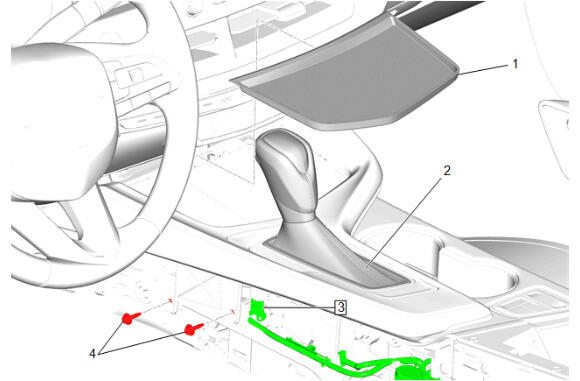

Front Floor Console Trim Plate Bolt (4) - Install and tighten [ 2x ] - Fastener Specifications
Front Floor Console Variable 1 Liner (1) - Install
Courtesy of GENERAL MOTORS COMPANY

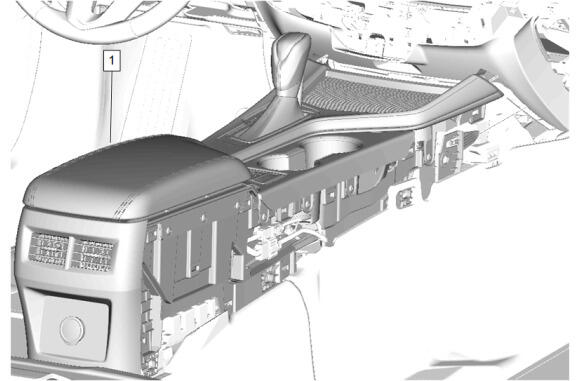

Slide the front floor console (1) back into the instrument panel.
Courtesy of GENERAL MOTORS COMPANY

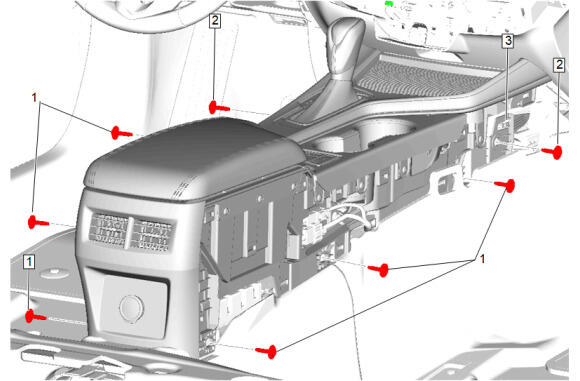

Front Floor Console Bolt (1) - Install and tighten [ 6x ] - Fastener Specifications
Front Floor Console Bracket Bolt (2) - Install and tighten [ 2x ] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Extension Panel - Right Side (1) - Install
Return the seat to its original position.
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Extension Panel - Left Side (1) - Install
Return the seat to its original position.
